Description
Includes: Integrated 4.5m Power Cord, interchangable lens plates, eggcrate filter Control: 5-pin And Terminal Block DMX/RDM, WDMX

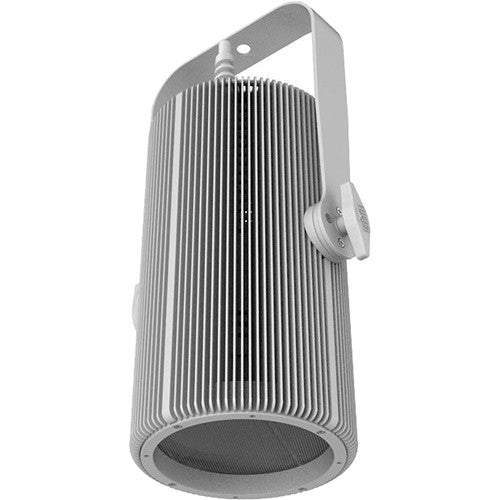

The white Ovation H-265WW LED House Light from CHAUVET PROFESSIONAL is a silent, convection-cooled LED house light with a warm white light output and a CRI of 97. It is designed to be used in theaters, worship venues, recital halls, and any other application where silent operation is crucial. The unit features 16-bit dimming, remote device management, W-DMX control, and adjustable pulse width modulation to prevent flickering on televised performances. The interchangeable lens plates can adapt to different mounting heights. The included yoke can be completely removed allowing the fixture to be suspended pendant style from a loop on the back plate.

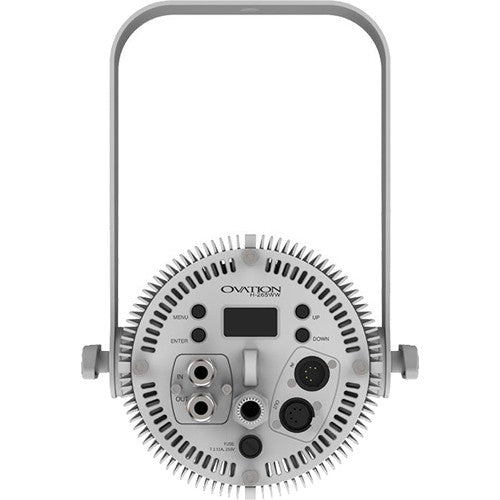

5-pin XLR and terminal blocks for DMX connections
16-bit dimming for ultra-smooth fades
DMX, W-DMX, and RDM (remote device management) for added programming flexibility
Built-in automated programs
Optical
Light Source
1 LEDs (WW) 230 W, 2.3 A, 50,000-Hour Life Expectancy
Color Temperature
3258K at Full
CRI
97
Beam Angle
80° Filter: 40°
65° Lens: 50°
45° Lens: 39°
25° Lens: 19°
Field Angle
65°:Lens 79°
45° Lens: 69°
25° Lens: 36°
Lumens
80° Filter: 7912 lumens
65° Lens: 8505 lumens
45° Lens: 8885 lumens
25° Lens: 9139 lumens
Illuminance
80° Filter: 325 lux at 16.4' / 5 m
65° Lens: 400 lux at 16.4' / 5 m
45° Lens: 623 lux at 16.4' / 5 m
25° Lens: 1933 lux at 16.4' / 5 m
Dynamic Effects
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 30 Hz
Dimming
4 Modes
Connections
Power Connection Type
Bare-Wired
Power Input
Hard-Wired
Data Connectors
3- and 5-pin XLR, Phoenix Connector
Cable Length
15' / 4.5 m (Power)
Control
Control Protocol
DMX, W-DMX, RDM
DMX Channels
1, 2, or 5
Modes
3 Personalities (1-Channel, 2-Channel, 5-Channel)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current
147 W, 1.21 A at 120 V, 60 Hz
147 W, 0.694 A at 208 V, 60 Hz
149 W, 0.641 A at 230 V, 50 Hz
Breaker Size
T3.15 A, 250 V
Certifications and Approvals
Certifications
CE, MET
IP Rating
IP20, Dry Location
Ambient Temperature
-4 to 113°F / -20 to 45°C
Physical
Exterior Color
White
Dimensions
13.11 x 9.44 x 13.34" / 333 x 240 x 339 mm
Weight
17.8 lb / 8.1 kg
