Description
Includes:IP rated Power/Data Cord
Control: Via Ovation E-260WWIP - For one single or two counter-roataing gobos

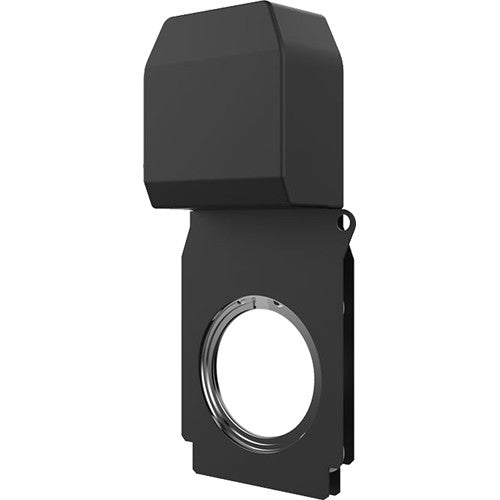

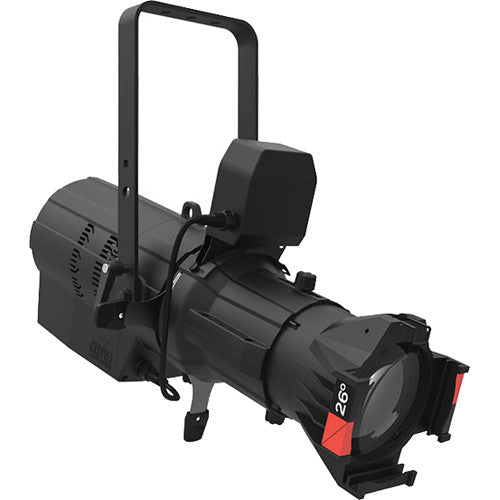

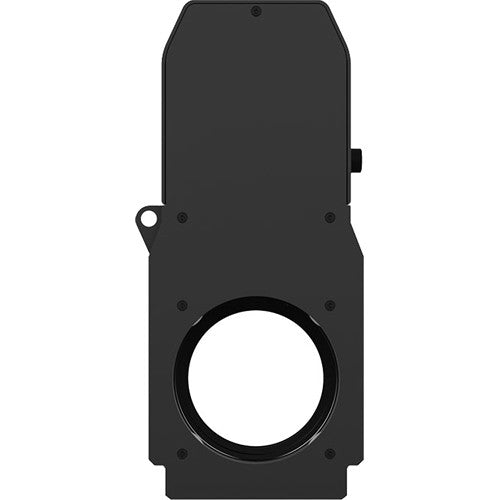

The GR-1 IP Gobo Rotator for Ovation E-260 IP LED Light from Chauvet Professional is an IP65 weatherproof accessory that's powered and controlled by the fixture and can handle one single or two counter-rotating gobos. It has a speed range of 0.047 - 21 rpm (17 - 7560° per minute) and can make adjustments remotely via the host fixture's DMX. Effects include CW or CCW rotation, indexing, and infinite rotation at variable speeds.
Gobo Size
Size B (metal, glass, or effect)
Effects
CW or CCW rotation, indexing, infinite rotation at variable speeds
Speed Range: 0.047 - 21 rpm (17 - 7,560° per minute)
Connections
Proprietary 4-pin IP65 input power/data cord
Control
Control Protocol: DMX
DMX Channels: 1
Power
Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)
Operating Temperature
-4 to 113°F (-20 to 45°C)
Certifications
CE
IP Rating: IP65
Material of Construction
Aluminum
Color
Black
Dimensions
10.9 x 4.7 x 2.2" (277.5 x 120.5 x 56.9 mm)
Weight
2.4 lb (1.2 kg)
