Description
Includes: powerCON Power Cord Control: 3-pin DMX, 5-pin DMX

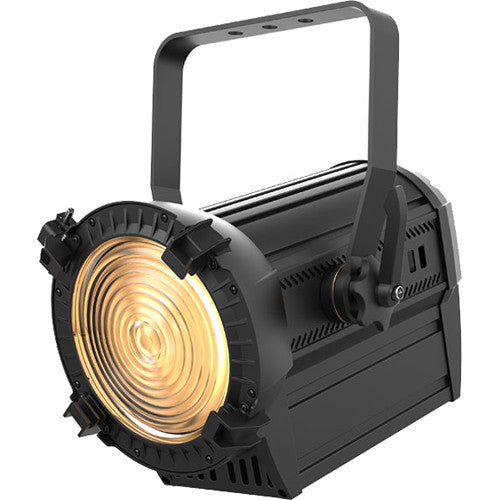

The Ovation FD-205WW from CHAUVET PROFESSIONAL is a Fresnel-style LED fixture with a single 230W warm white LED light. The quiet fixture produces a soft, even field of light and provides up to 3069K color temperature with a 96 CRI. Additionally, the motorized zoom offers a range of 20 to 72° that is easily adjusted by a rotary knob.
The Ovation FD-205WW is equally efficient running on constant power and DMX as it is when connected directly to a dimming power source. Onboard electronics automatically detect what type of power and data the fixture receives and directs the light to respond accordingly. Other features include five dimming modes, DMX channels (1, 2, or 5), three personalities, and both 3- and 5-pin XLR connectors. It ships with a powerCON power cord and gel frame.
Warm white Fresnel lighting fixture
Works on conventional dimmers or constant power with DMX
Auto-senses power/data and responds appropriately
Smooth low-end dimming whether using dimmers or constant power
Great fixture for the retrofit market; utilizes existing dimming infrastructure
Motorized zoom feature in Dimmer, SENS, or DMX modes
16-bit dimming resolution (DMX mode) for smooth fades
Soft and even field of light
Virtually silent operation
Simple and complex DMX channel profiles for programming versatility
20 to 72° motorized zoom angle (manually or via DMX)
Optical
Light Source
1 x LED 230 W, 2.5 A
LED Life Expectancy
50,000 Hours
Color Temperature
At Full: 3069K
CRI
96
Beam Angle
11 to 53°
Field Angle
20 to 72°
Zoom Angle
20 to 72°
Lumen Output
At 20°: 6414 Lumens
At 72°: 9047 Lumens
Illuminance
At 20°: 5678 lux at 16.4' / 5 m
At 72°: 450 lux at 16.4' / 5 m
PWM Frequency
600/1200/2000/4000//6000/25,000 Hz (Selectable)
Dynamic Effects
Dimmer
Electronic or External Dimmer Rack
5 x Modes
4 x Curves
Shutter/Strobe
Electronic
Zoom
Motorized
Strobe Rate
0 to 18 Hz
Control
Protocols
DMX, RDM, and Dimmer
DMX Channels
1, 2, or 5
Modes/Personalities
3 x Personalities (UNO, DOS, STD-P)
Interface
Connectors
1 x 3-Pin XLR, Data Input
1 x 3-Pin XLR, Data Output
1 x 5-Pin XLR, Data Input
1 x 5-Pin XLR, Data Output
1 x Neutrik powerCON, Power Input
1 x Neutrik powerCON, Power Output
Cable Length
5' / 1.5 m
Electrical
Input Voltage
120/230 VAC, 50/60 Hz (Switchable)
Power Linking
8 x Units at 120 V
16 x Units at 230 V
Power and Current
182 W, 1.52 A at 120 V, 60 Hz
188 W, 0.82 A at 230 V, 50 Hz
Breaker Size
T3.15 A, 250 V
General
Certifications
CE, MET
Rating
IP20, Dry Location
Ambient Temperature
-4 to 113°F / -20 to 45°C
Gel Frame Holder
7.5" / 19.1 cm
Dimensions
16.2 x 11.2 x 10.3" / 41.2 x 28.4 x 26.1 cm
Weight
14 lb / 6.4 kg
