Description
Includes: powerCON Power Cord Control: 3-pin DMX, 5-pin DMX

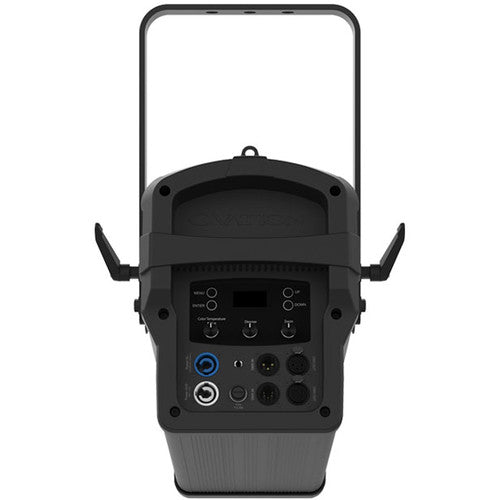

The Ovation F-915VW from CHAUVET PROFESSIONAL is a variable-white Fresnel-style LED fixture, well suited for theater, film, and production. The virtually silent fixture produces a soft even field of light and provides color temperature presets from 2800 to 8000K with high CRI and CQS. Additionally, each color temperature can be further adjusted with +/- green, while the motorized zoom offers a range of 30 to 85° that allows you to add light where it is needed.
The light source includes 6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, and 32 lime for a total of 89 LEDs, which can be independently controlled for a splash of color when needed. Other features include 4 dimming modes, DMX and RDM control, DMX channels (1, 4, 6, 7, 9, 13, 16, or 18), 8 personalities, and both 3- and 5-pin XLR connectors. The Ovation F-915VW ships with a Neutrik powerCON power cord and a 7.5" gel frame holder.
Variable white Fresnel lighting fixture for theatre, film, and production
Soft and even field of light
Smooth, motorized zoom from 16 to 42°
Color temperature presets from 2800 to 8000K with high CRI and CQS
Smooth, 16-bit dimming
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Independent color control over the 6-color engine when a splash of color is needed
Green +/- adjustment via DMX or onboard control
Easy-to-use onboard control of color temperature, zoom, and dimming
Proprietary LED engine delivers equal output at all color temperatures
Virtually silent operation for use in studio and theatre applications
Optical
Light Source
89 LEDs 3 W, 960 mA
6 x Red
15 x Orange-Red
8 x Green
12 x Blue
16 x Royal Blue
32 x Lime
LED Life Expectancy
50,000 hours
Color Temperature
2800 to 8000K
CRI
88 to 92
Beam Angle
16 to 46°
Field Angle
30 to 85°
Zoom Angle
30 to 85°
Lumen Output
At 30°: 4143 Lumens
At 85°: 6792 Lumens
Illuminance
At 30°: 1748 Lux at 16.4' / 5 m
At 85°: 414 Lux at 16.4' / 5 m
PWM Frequency
600/1200/2000/4000//6000/25,000 Hz (Selectable)
Dynamic Effects
Dimmer
Electronic
4 x Modes
Zoom
Motorized
Strobe Rate
0 to 27 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Automated Programs
No
Control
Control Knobs
1 x Knob, Color Temperature
1 x Knob, Dimmer
1 x Knob, Zoom
Protocols
DMX, RDM
DMX Channel Modes
1, 4, 6, 7, 9, 13, 16, or 18 Channels
Modes/Personalities
8 x Personalities (1, 4, 6, 7, 9, 13, 16, 18)
Interface
Connectors
1 x 3-Pin XLR, Data Input
1 x 3-Pin XLR, Data Output
1 x 5-Pin XLR, Data Input
1 x 5-Pin XLR, Data Output
1 x powerCON, Power Input
1 x powerCON, Power Output
Cable Length
5' / 1.5 m
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking
7 x Units at 120 V
13 x Units at 208 V
14 x Units at 230 V
Power
216 W, 1.8 A at 120 V, 60 Hz (7 A Inrush)
220 W, 1.1 A at 208 V, 60 Hz (7 A Inrush)
223 W, 1 A at 230 V, 50 Hz (7.8 A Inrush)
Resting:
6 W, 0.050 A at 120 V, 60 Hz
11 W, 0.054 A at 208 V, 60 Hz
9 W, 0.036 A at 230 V, 50 Hz
General
Certifications
CE, MET, FCC
Rating
IP20, Dry Location
Temperature
Start-Up: -4 to 113°F / -20 to 45°C
Operating: -22 to 113°F / -30 to 45°C
Gel Frame Holder
7.5" / 19.1 cm
Construction
Aluminum Alloy, Aluminum Die-Cast
Dimensions
22.41 x 12.6 x 10.82" / 56.9 x 32.0 x 27.5 cm
Weight
18.6 lb / 8.5 kg
