Description
Includes: powerCON Power Cord Control: 3-pin DMX, 5-pin DMX

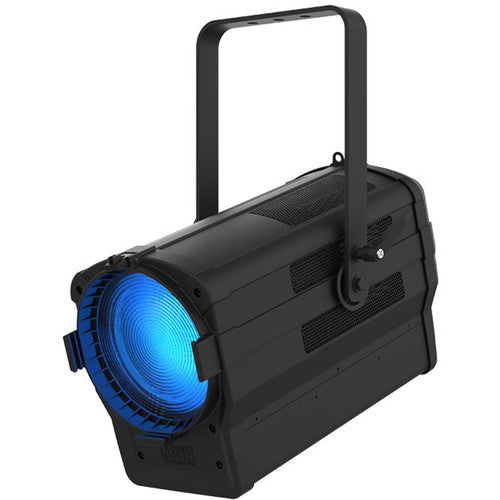

Create immersive washes across your stage with the Ovation F-915FC from CHAUVET PROFESSIONAL. Featuring a RGBA-lime LED system and full color mixing, this fresnel-style fixture projects a bright, soft field of light in tones ranging from subtle pastels to punchy saturates, or in nearly any temperature of white. A motorized zoom with a 30 to 85° field angle allows you to shape the beam and add light where it is needed. The light's output level, zoom, and virtual color wheel can be controlled either via DMX or using the onboard dials.
Full-color LED (RGBA-lime) fresnel lighting fixture for theater and film
Soft and even field of light
Smooth, motorized zoom from 30 to 85°
16-bit dimming of master dimmer and individual colors
Easy-to-use onboard control of color, zoom, and dimming
Virtual color wheel matched to popular gel colors
Color temperature presets from 2800 to 6500K
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theater applications
Optical
Light Source
89 x Single-Color LEDs, 3 W, 1.13 A
LED Configuration
18 x Red
18 x Green
16 x Blue
16 x Amber
21 x Lime Green
Life Expectancy
50,000 Hours
Color Temperature
2800 to 6500K
CRI
At 3200K: 90
Beam Angle
17 to 54°
Field Angle
30 to 85°
Zoom Angle
30 to 85°
Lumen Output
At 30°: 4294 Lumens
At 73°: 6661 Lumens
Illuminance
At 30°: 1980 lux at 16.4' / 5 m
At 73°: 433 lux at 16.4' / 5 m
PWM Frequency
Selectable: 600, 1200, 2000, 4000, 6000, or 25,000 Hz
Dynamic Effects
Dimmer Type
Electronic
Shutter/Strobe
Electronic
Zoom
Motorized
Strobe Rate
0 to 27 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
2800, 3200, 3500, 4000, 4500, 5000, 5600, 6000, and 6500K
Dimmer
4 x Modes
Built-In Programs
Yes
Master/Slave Support
Yes
Control
Protocols
DMX, RDM
DMX Channel Modes
3, 5, 7, 11, 13, 14, or 17 Channels
Modes
HSV
7 x DMX Channel Modes

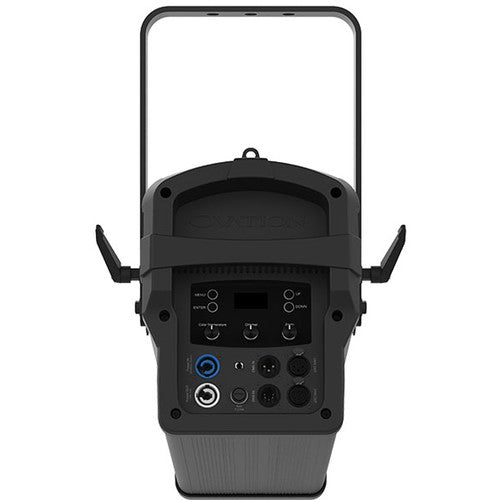

Display/Controls
Display, 4 x Menu Buttons, 2 x Knobs
Connections
DMX Connectors
Input: XLR 3-Pin and 5-Pin
Output: XLR 3-Pin and 5-Pin
Power Connectors
Input: Neutrik powerCON
Output: Neutrik powerCON
Power Cable
Edison to Neutrik powerCON
5' / 1.5 m
Electrical
Power Requirements
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking
6 Units at 120 V
10 Units at 208 V
12 Units at 230 V
Power and Current
120 VAC, 60 Hz: 260 W, 2.15 A
208 VAC, 60 Hz: 260 W, 1.25 A
230 VAC, 50 Hz: 260 W, 1.12 A
Standards and Certifications
Certification and Compliance
CE, MET
IP Rating
IP20
Physical
Housing Material
Aluminum Alloy, Aluminum Die-Cast
Gel Frame Holder
7.5" / 191 mm
Mounting
Single Yoke
Dimensions
22.41 x 12.59 x 10.82" / 56.9 x 32.0 x 27.5 cm
Weight
19 lb / 8.6 kg
Packaging Info
Package Weight
25.42 lb
Box Dimensions (LxWxH)
23.1 x 15.1 x 14.6"
