Description
Includes: powerCON Power Cord Control: 3-pin DMX, 5-pin DMX

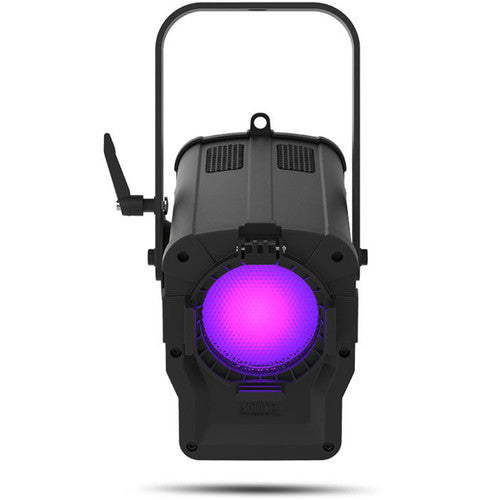

Wash soft, even light over your stage or scene with the compact Ovation F-55FC RGBA-Lime LED Fixture from CHAUVET PROFESSIONAL. Designed for short-throw applications in TV studios, theaters, and on-location settings, this full-color Fresnel-style lighting fixture features a 32 to 87° zoomable field angle and 15 LEDs: three red, three green, three blue, three amber, and three lime. Color temperature presets from 2800 to 6500K are available, as well as a virtual color wheel with 31 color presets matched to popular Rosco gels.
The F-55FC features seven DMX channel modes for remote control and a 100-240 VAC power supply for worldwide use. Effects include standalone color mixing, electronic strobe, four dimming modes, and built-in automated programs. Moreover, its silent operation makes the fixture suitable for sound-sensitive applications, and its adjustable PWM helps ensure flicker-free shooting. Included in the package is a gel frame for holding color gels in front of the light.
Compact full-color RGBA+Lime Fresnel-style LED lighting fixture for tight spaces and on-location lighting
Manual zoom with 32 to 87° field angle
16-bit dimming resolution for smooth fades
Soft and even field of light
Virtually silent operation for noise-sensitive applications
Color temperature presets from 2800 to 6500K
RDM (Remote Device Management) for added flexibility
Adjustable PWM (pulse width modulation) to avoid flickering on camera
Optical
Light Source
15 x Single-Color LEDs, 3 to 4 W, 700 mA
LED Configuration
3 x Red
3 x Green
3 x Blue
3 x Amber
3 x Lime
Life Expectancy
50,000 hours
Color Temperature
2800 to 6500K
At Full: 3779K
CRI
At 3200K: 91
Beam Angle
18 to 67°
Field Angle
32 to 87°
Zoom Angle
32° to 87°
Lumen Output
At 30°: 114 lumens
At 69°: 462 lumens
Illuminance
At 32°: 36 lux at 16.4' / 5 m
At 73°: 18 lux at 16.4' / 5 m
PWM Frequency
Selectable: 600, 1200, 2000, 4000, 6000, or 15,000 Hz
Dynamic Effects
Dimmer Type
Electronic
Shutter/Strobe
Electronic
Zoom
Manual
Strobe Rate
0 to 30 Hz
Color Mixing
Red, Green, Blue, Amber, Lime
Color Temperature Presets
2800, 3200, 3500, 4000, 4500, 5000, 5600, 6000, and 6500K
Dimmer
4 x Dim Mode
Built-In Programs
Yes
Master/Slave Support
Yes
Operating Modes
Auto Programs, Virtual Color Wheel, Color Temperature, Manual Color Mixer, DMX
Control
Protocols
DMX, RDM
DMX Channel Modes
3, 5, 7, 10, 12, 13, or 15 Channels
Modes
HSV
7 x DMX Channel Modes
Display/Controls
Display with 4-Button Control Interface
Connections
DMX Connectors
Input: XLR 5-Pin
Output: XLR 5-Pin
Cable Length
1.79' / 0.54 m
Power Connectors
Input: powerCON
Output: powerCON
Power Cable
Edison to powerCON
3.5' / 1.07 m
Electrical
Power Requirements
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current
120 VAC, 60 Hz: 44 W, 0.357 A
208 VAC, 60 Hz: 28 W, 0.130 A
230 VAC, 50 Hz: 29 W, 0.121 A
Standards and Certifications
Certification and Compliance
CE, MET
IP Rating
IP20 - Dry Location
Physical
Housing Material
Aluminum Alloy, Aluminum Die-Cast, High-Impact Flame-Retardant Polymer, and Steel
Gel Frame Holder
3.25" / 83 mm
Mounting
Single Yoke
Dimensions
9.64 x 4.64 x 6.53" / 245 x 118 x 166 mm
Weight
5.4 lb / 2.4 kg
Packaging Info
Package Weight
7.245 lb
Box Dimensions (LxWxH)
16.6 x 9.1 x 8.6"
