Description
Includes: powerCON Power Cord Control: 3-pin DMX, 5-pin DMX

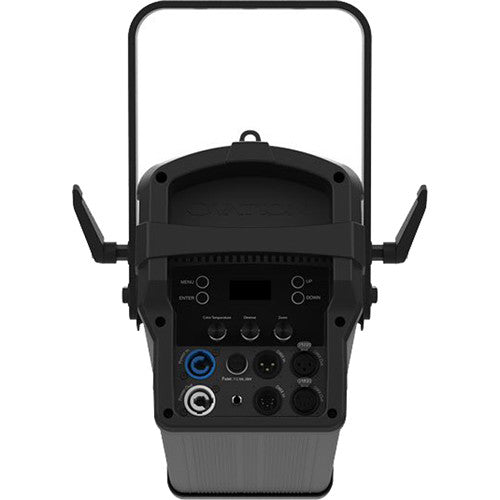

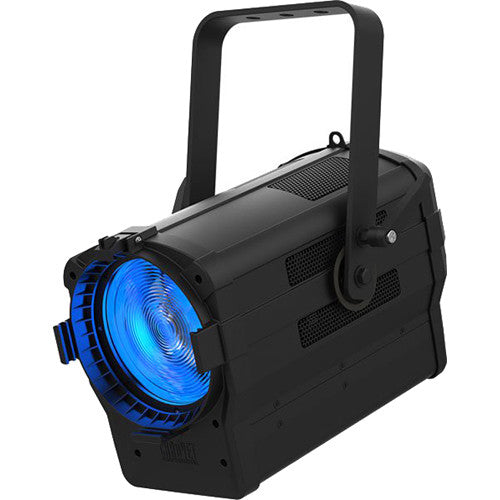

The Chauvet Professional Ovation F-415FC is a full-color Fresnel-style LED PAR with a motorized zoom, well suited for theater, film, and television production. The compact and virtually silent PAR fixture produces a soft even field of light and is capable of subtle pastels to punchy saturates thanks to the virtual color wheel that matches popular gel colors. The light source includes 10 red, 10 green, 6 blue, 8 amber, and 12 lime for a total of 46 LEDs, which blend for a wide palette of color mixing options. The motorized zoom offers a range of 27° to 68° field angles, allowing you to add light where it is needed.
The Ovation F-415FC features smooth 16-bit dimming, as well as RDM and PWM for easy setup. Other features include: 4 dimming modes, DMX and RDM control, DMX channels 1, 3, 5, 7, 10, 12, 13 or 15, 9 personalities, built-in automated programs, and both 3- and 5-pin XLR DMX connectors.
Full color PAR style fixture with homogenized single source of light
Interchangeable lens plates included for medium and wide beam angles
Flat, even field of light
Quiet operation for use in any situation with fan speed control
RDM and variable Pulse Width Modulation for setup ease
Accepts standard 7.5" beam shaping accessories
16-bit dimming resolution for smooth fades
CHAUVET PROFESSIONAL F-415FC Specs
Optical
Light Source: 46 LEDs (10 Red, 10 Green, 6 Blue, 8 Amber, 12 Lime) 3 to 5 W, 1 A
Life Expectancy: 50,000 Hours
Color Temperature (Range): 2800 to 6500K
CRI (3200K): 91
Beam Angle: 14 to 43°
Field Angle: 27 to 68°
Zoom Angle: 27 to 68°
Lumens (27°): 1877, (68°): 2815
Illuminance (27°): 915 lux at 16.4' / 5 m, (68°): 190 lux at 16.4' / 5 m
Selectable PWM: 600, 1200 , 2000, 4000, 6000, and 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-In Automated Programs: Yes
Connections
Power Connection: Edison (Local) Plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3-and 5-Pin XLR
Cable Length (Power): 5' / 1.5 m
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13, or 15
Modes/Personalities: 9 Personalities (HSV, 1, 3, 5, 7, 10, 12, 13, 15)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 13 Units at 120 V; 22 Units at 208 V; 24 Units at 230 V
Power and Current: 124 W, 1.027 A @ 120 V, 60 Hz
Power and Current: 124 W, 0.608 A @ 208 V, 60 Hz
Power and Current: 126 W, 0.546 A @ 230 V, 50 Hz
Certifications
CE, MET
IP Rating: IP20, Dry Location
Temperature (Ambient): -4 to 113°F / -20 to 45°C
Material of Construction
Housing Material: Aluminum Alloy, Aluminum Die-Cast
Accessory Holder/Gel Frame Size: 6.3" / 158.8 mm
Dimensions
15.8 x 11.2 x 9.5" / 401.5 x 285 x 241.7 mm
Weight
12 lb / 5.6 kg
Packaging Info
Package Weight
16.22 lb
Box Dimensions (LxWxH)
19.7 x 16.6 x 15.1"
