Ovation F-145WW

CHA-OVATIONF145WW
Regular price
$1,315.79
Sale price
$1,170.00

Includes: powerCON Power Cord Control: 3-pin DMX, 5-pin DMX

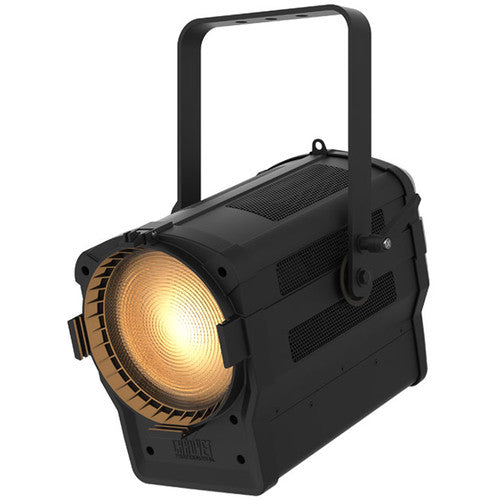

The Ovation F-265WW Warm White LED Fresnel-Style Fixture from CHAUVET PROFESSIONAL utilizes an efficient warm white LED system to project a bright, soft, high-CRI field of light ideal for theaters and television studios. The motorized zoom with a 27-68° field angle, as well as the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM, and an easy to navigate OLED full text display.

Warm white Fresnel with output comparable to an 8", 2000W Fresnel
Soft and even field of light
16-bit dimming resolution for smooth fades
Virtually silent operation for use in any situation
Optical
Light Source
1 x WW LED
230 W, 3.6 A
LED Life Expectancy
50,000 hours
Color Temperature
3142 k
CRI
96
Beam Angle
16 to 46°
Field Angle
27 to 68°
Zoom Angle
27 to 68°
Brightness
27°: 9283 lumens
68°: 12,802 lumens
Illuminance
27°: 4010 lux @ 16.4' / 5 m
68°: 1162 lux @ 16.4' / 5 m
PWM Frequency
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer
Electronic, four modes
Shutter/Strobe
Electronic
Zoom
Motorized
Strobe Rate
0 to 30 Hz
Control
Protocols
DMX, RDM
DMX Channels
1, 2, 2 or 5

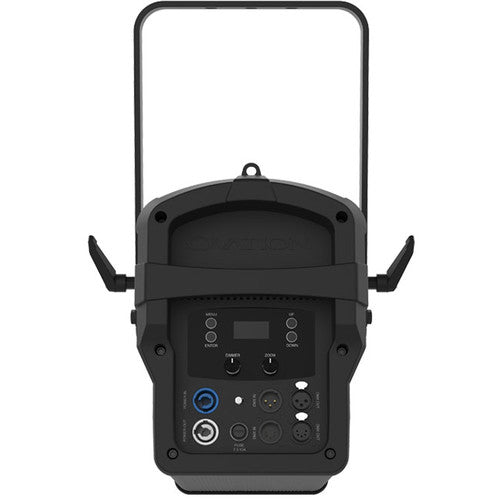

Connections
Power Input/Output
Neutrik powerCON
Data Connectors
3- and 5-pin XLR
Cable Length
5' / 1.5 m
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz
Power Linking
7 units @ 120 V
12 units @ 208 V
13 units @ 230 V
Power
227 W, 1.88 A @ 120 V, 60 Hz
234 W, 1.11 A @ 208 V, 60 Hz
235 W, 1.01 A @ 230 V, 50 Hz
General
Certifications
CE, MET
Rating
IP20, dry location
Temperature
-4 to 113°F / -20 to 45°C
Gel Frame Holder
7.5" / 19.1 cm
Construction
Aluminum
Dimensions
15.1 x 12.6 x 17.7" / 38.4 x 32.0 x 45.0 cm
Weight
17.2 lb / 7.9 kg
