Description
includes:Engine, 19-36 deg zoom lens, gel frame, fixed power cord with track adaptor. Fits Trck Type-H.

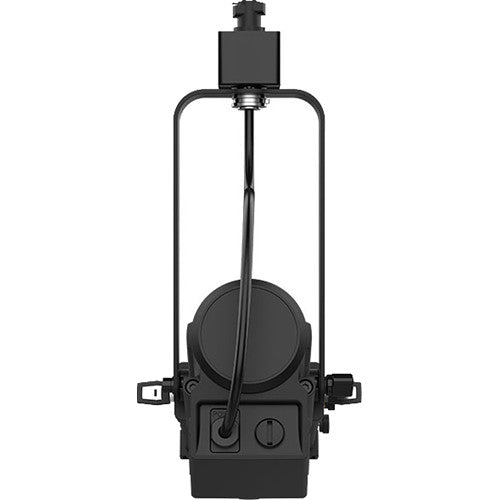

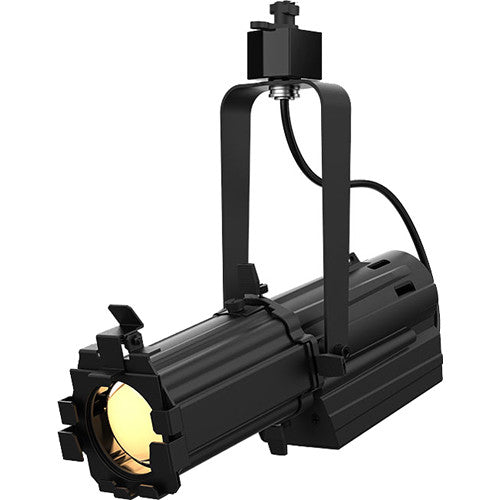

The Ovation ETD-40WW Ellipsoidal from Chauvet is an ideal complement in form and function to the larger lights in the Ovation Series. With a 19- to 36-degree zoom lens powered by a 40W warm-white LED, this small, discreet ellipsoidal cleanly crops light from unwanted areas. Interchangeable lens tubes slide in and lock down at the desired focus point. The Ovation ETD-40WW is easily dimmed using external dimmer packs appropriate for LED lighting.
Features at a Glance
Compact LED ellipsoidal shines a hard-edged beam, perfect for gobo projection
Track-mountable to readily available track lighting rails
Impressive output with high CRI
Uses standard size-E glass or metal gobos
Zooming optics provide a beam angle variable from 19 to 36°
Light Source
1 x LED (WW) 40 W
Color Temperature
3255°K at Full Power
Photometrics
Lumens at 19 to 36° Lens at 19°: 1327 Lumens
Lux with 19 to 36° Lens at 19°: 784 Lux at 16.4' / 5 m
CRI / TLCI
93 / 92.2
Gobos
Gobo Holder Size: 37.5 mm (Outside), 20 mm (Image, Glass), 25 mm (Image, Steel), 1.0 mm (Max. Thickness)
Focus
Manual
Beam Angle
19 to 36°
Life Expectancy
50,000 Hours
Connections
Power Connection: Track Type H
Power Cable Length: 1.17' / 0.36 m
Dimming
Optional External Dimming System or Dimmer
IP Rating
IP20, Dry Location
Cable
Edison Plug to 1.8' / 0.3 m Cable Hardwired to Unit
Approvals and Certifications
CE, MET
Operating Temperature
-4 to 113 °F / 20 to 45 °C
Input Voltage
120 VAC, 60 Hz
Power and Current
36 W, 0.224 A at 120 V, 60 Hz
Dimensions
14.8 x 5.1 x 5.2" / 37.6 x 12.9 x 13.2 cm
Weight
Fixture without Lens: 3.4 lb / 1.6 kg
Material of Construction
Aluminum
Finish
Black
Warranty
Limited 2-Year Warranty
