Description
Includes: Light Engine Only, powerCON Power Cord - NO LENS TUBE
Control: Dimmer or 3-pin DMX, 5-pin DMX

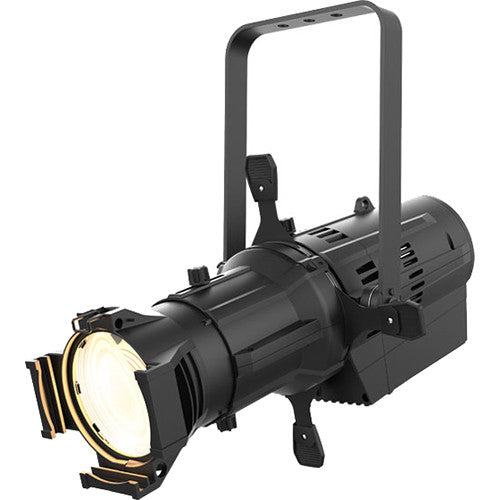

The Chauvet Professional Ovation ED-200WW LED Ellipsoidal Spot is a high-powered LED-based fixture with a single 230W warm white LED light source that exceeds a Tungsten 750W light source and is well suited for film studios, broadcast applications, theaters, and more. The fixture can be retrofitted to lamp-based ellipsoidals without losing the investment into a current dimming system. The instrument delivers white light with a warm color temperature and a flat field for exceptional gobo projection.
The Ovation ED-200WW is equally efficient running on constant power and DMX as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives and directs the light to respond accordingly. The there are several lens tubes available including 14, 19, 26, 36, and 50° options, each sold separately. The Chauvet Professional Ovation ED-200WW ships with a powerCON power cord.
Attributes
Warm white ERS style fixture with output exceeding a tungsten 750 W source
Works on conventional dimmers or constant power with DMX
Auto-senses power/data and responds appropriately
Smooth low-end dimming whether using dimmers or constant power
Great fixture for the retrofit market, utilizes existing dimming infrastructure
16-bit dimming resolution (DMX mode) for smooth fades
Flat, even field of light for professional-quality gobo projection
Works with industry standard lens tubes and accessories
Virtually silent operation for use in any situation
Operational Modes:
1-Channel (UNO): dimmer control
2-Channel (DOS): dimmer and fine dimmer control
3-Channel (STD.P): dimmer, fine dimmer, and strobe control
Optical
Light Source: 1 LEDs (WW) 230 W, (3.4 A)
Life Expectancy: 100,000 Hours
Color Temperature (at Full): 3334 K
CRI: 97
PWM Frequency: 600, 1200, 2000, 4000, 25,000 Hz
Dynamic Effects
Dimmer: Electronic or External Dimmer Rack
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 18 Hz
Dim Modes: 5
Dim Curves: 4
Control
Control Protocol: DMX, RDM, Dimmer
DMX Channels: 1, 2, or 3
Modes/Personalities: 3 Personalities (UNO, DOS, STD.P)

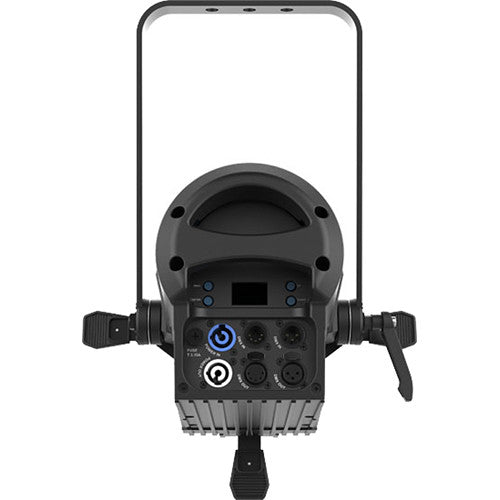

Connections
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-Pin XLR
Power Connection: Edison Plug to Neutrik powerCON
Cable Length (Power): 5.0' / 1.5 m
Certifications
CE, MET
IP Rating: IP20, Dry Location
Power
Input Voltage: 120/230 VAC, 50/60 Hz (Switchable)
Power Linking: 6 Units at 120 V; 12 Units at 230 V
Power and Current: 250 W, 2.074 A at 120 V, 60 Hz
Power and Current: 254 W, 1.103 A at 230 V, 50 Hz
Dimensions
21.5 x 15.0 x 15.0" / 546.1 x 381.0 x 381.0 mm
Weight
17.6 lb / 8.0 kg
Packaging Info
Package Weight
22.75 lb
Box Dimensions (LxWxH)
28.4 x 14.4 x 12.1"
