Description
Includes: Light Engine Only, IP PowerKON - NO LENS TUBE
Control: 5-pin DMX

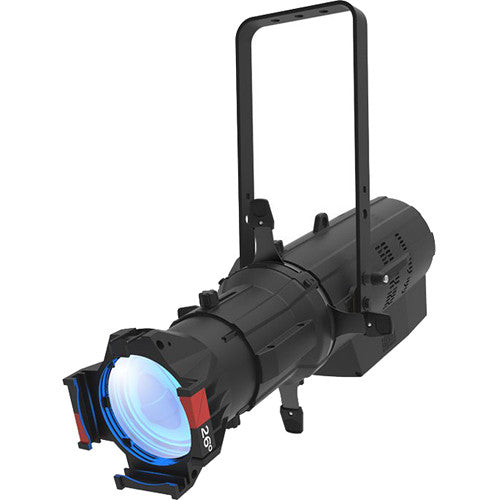

The Chauvet Professional Ovation E-910FC IP RGBA-Lime is a full-color LED ERS-style lighting fixture that offers color temperature presets of 2800 to 6500K that match the output of a tungsten and daylight sources. It is well suited for theater, film, and TV production. The light fixture features 91 LEDs: 18 red, 18 green, 19 blue, 18 amber, and 18 lime green, and the virtual color wheel offers 31 color presets matched to popular Rosco gels.
The E-910FC IP features nine DMX channel modes (1, 4, 6, 8, 11, 13, 14, 16, or HSV) for remote control and a 100-240 VAC power supply for worldwide use. Effects include standalone color mixing, electronic strobe, four dimming modes, and built-in automated programs. The E-910FC IP65 features silent operation for sound-sensitive venues, and it has an adjustable PWM to ensure flicker-free operation for various camera speeds.
Benefits
Full color LED (RGBA-Lime) ERS-style lighting fixture for theater, film, and production
Fully IP65 rated for seasonal use indoors or outside
Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
Virtual color wheel with color matched to popular gel colors
Color temperature presets from 2800 to 6500K with high CRI and CQS
Ultrasmooth 16-bit dimming and 8-bit dimming curves to complement any lighting scheme
Flat even field of light for superior gobo projection
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering during production
The Ovation E-910FC IP requires an optional lens tube for full operation
LED
Light Source: 91 LEDs (18 Red, 18 Green, 19 Blue, 18 Amber, 18 Lime Green) 3 W, (722 mA), 6031 K
Life Expectancy: 50,000 Hours
Color Temperature (range): 2800 to 6500 K
Color Temperature (at Full): 6031 K
CRI (3200 K): 82
Selectable PWM: 600, 1200, 2000, 4000, 6000, and 25000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Connections
Power Connection: Edison (Local) Plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-Pin XLR
Cable Length (power): 16.4' / 5.0 m
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 4, 6, 8, 11, 13, 14, 16, or HSV
Modes/Personalities: 9 Personalities (1, 4, 6, 8, 11, 13, 14, 16, or HSV)
Certifications
CE, MET
IP Rating: IP65, Outdoor/Wet, with Pressure Equalizing M12 GORE Valve
Temperature (Ambient): -4 to 113°F / -20 to 45°C
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 7 Units at 120 V; 11 Units at 208 V; 12 Units at 230 V
Power and Current: 225 W, 1.88 A at 120 V, 60 Hz
Power and Current: 236 W, 1.14 A at 208 V, 60 Hz
Power and Current: 241 W, 1.05 A at 230 V, 50 Hz
Dimensions
26.0 x 11.3 x 10.4" / 660.0 x 287.9 x 264.6 mm
Weight
23.2 lb / 10.5 kg
Packaging Info
Package Weight
28.165 lb
Box Dimensions (LxWxH)
29 x 13.5 x 13.1"
