Description
Includes: Light Engine Only, powerCON Power Cord - NO LENS TUBE
Control: 3-pin DMX, 5-pin DMX

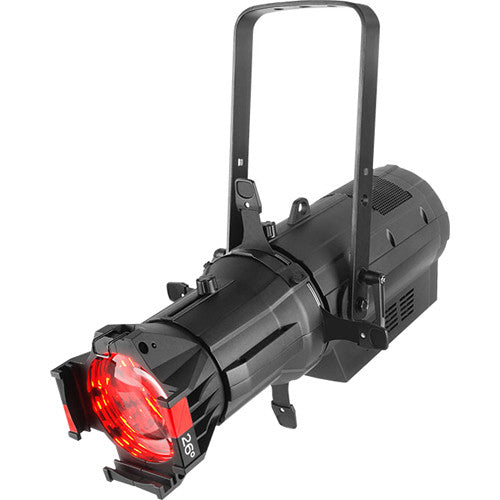

The black Ovation E-910FC Light Engine with from Chauvet is a full-color LED (RGBA-Lime) ERS-style lighting fixture for theater, film, and production. The light source features 91 LEDs: 18 red, 18 green, 19 blue, 18 amber, and 18 lime green. Color temperature presets from 2800 to 6500K are available, and the virtual color wheel offers 31 color presets matched to popular Rosco gels. The E-910FC features seven DMX channel modes for remote control and a 100-240 VAC power supply for worldwide use. Effects include standalone color mixing, electronic strobe, nine dimming modes, and built-in automated programs. The E-910FC features silent operation for sound-sensitive venues and an adjustable PWM to ensure flicker-free operation for various on-camera applications.
Benefits
Full-color LED (RGBA-Lime) ERS-style lighting fixture for theater, film, and production
Ultra-smooth 16-bit dimming for master dimmer and individual colors
Flat, even field of light with superior color mixing
Virtual color wheel with color matched to popular Rosco Gel colors
Color temperature presets from 2800 to 6500K with high CRI and CQS
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theater applications
Works with industry-standard lens tubes and accessories
Note:
This light engine requires a separately available lens tube in order to operate.
Light Source
91 x Single-Color LED, 3 W (1.4 A)
LED Configuration
18 Red
18 Green
19 Blue
18 Amber
18 Lime Green
Life Expectancy
50,000 Hours
Color Temperature
2800 to 6500K
Color Temperature Presets
Yes
Color Mixing
Red, Green, Blue, Amber, Lime
Dimmer Type
Electronic
Dimmer Curves
4 x Curve
Strobe
Electronic
Strobe Rate
0 to 28 Hz
Focus
Manual
Framing
4 x Framing Shutter
Built-In Programs
Yes
Master/Slave Support
Yes
Sound Active
No
Operating Modes
Auto Programs, Virtual Color Wheel, Color Temperature, Manual Color Mixer, DMX
Protocols
DMX, RDM
DMX Connectors
Input: XLR 3-Pin and XLR 5-Pin
Output: XLR 3-Pin and XLR 5-Pin
DMX Channel Modes
3, 5, 7, 10, 12, 13, or 15 Channels
Display/Controls
LED Display with 4-Button Control Interface
Power Connectors
Input: powerCON
Output: powerCON
Power Cable
Edison to powerCON
5' / 1.5 m
Power Requirements
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking
120 VAC: 6 Units
208 VAC: 11 Units
230 VAC: 12 Units
Power and Current
120 VAC, 60 Hz: 240 W, 2.006 A
208 VAC, 60 Hz: 234 W, 1.160 A
230 VAC, 50 Hz: 234 W, 1.074 A
Lens Tube
Required
Mounting
Single Yoke
Certification and Compliance
CE, MET
IP Rating
IP20
Dimensions
Fixture Only: 19.49 x 11.22 x 19.17" / 495 x 285 x 487 mm
Weight
Fixture Only: 15.4 lb / 7.1 kg
Packaging Info
Package Weight
20 lb
Box Dimensions (LxWxH)
25.75 x 13 x 12.5"
