Includes:Power Cord, Gel Frame, Gobo Holder, Soft Focus Filter Control: 5-pin DMX

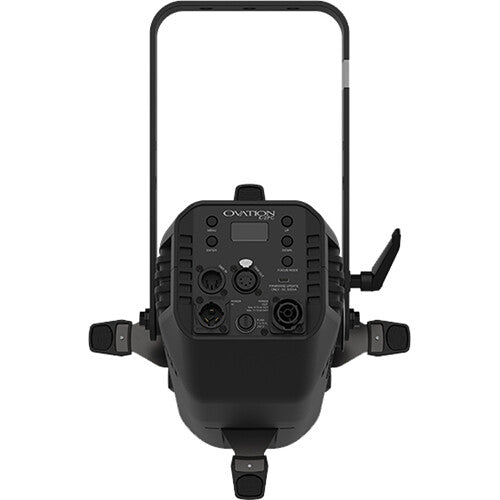

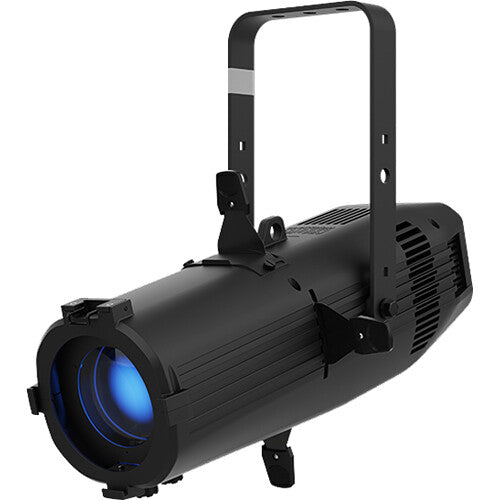

The Ovation E-2 FC RGBA-Lime LED Ellipsoidal Spotlight from Chauvet Professional is a full-color LED ERS-style lighting fixture that offers color temperature presets of 2800 to 8000K that match the output of a tungsten and daylight sources. It is well suited for theater, film, and broadcast TV production. The light fixture features 72 RGBA-Lime LEDs, a 25 to 50° zoom lens, and a virtual color wheel offers 30+ color presets matched to popular Rosco gels.
The E-2 FC features nine DMX channel modes for remote control and a 100-240 VAC PowerCon power supply for worldwide use. Effects include standalone color mixing, electronic strobe, four dimming modes, four dimming curves, and built-in automated programs. The light features silent operation for sound-sensitive venues, and it has an adjustable PWM to ensure flicker-free operation for various camera speeds.
Benefits
Full-spectrum LED ERS-style lighting fixture for small theaters and studios
Integrated 25-50° zoom lens
Color temperature presets from 2800 to 8000K with high CRI and CQS
+/- Green adjustment and emulated red-shift via DMX or on-board control
Dedicated focus mode button for one-touch activation for focusing without a board-op
USB port for fixture software updates
LED
Light Source: 72 LEDs (15 Red, 11 Green, 6 Blue, 4 Cyan, 14 Amber, 22 Lime Green) 6-9.75 W, (1.5 A)
Life Expectancy: 50,000 Hours
Color Temperature (Range): 2800 to 8000K
Color Temperature (at Full): 4525K
CRI (3200 K): 93
Selectable PWM: 600, 1200, 2000, 4000, 6000, and 25,000 Hz
Beam Angle
Spot: 23.8°
Flood: 46.4°
50% Zoom: 38.7°
Field Angle
Spot: 25.6°
Flood: 51°
50% Zoom: 41.3°
Cutoff Angle Spot: 24.9°
Cutoff Angle Flood: 51.8°
Cutoff Angle 50% Zoom: 41.9°
Zoom Range
23.8 to 51.8°
Lumens
Spot: 3708 lumens
Flood: 5608 lumens
50% Zoom: 5147 lumens
Illuminance
Spot: 1107 lux at 16.4' / 5 m
Flood: 488 lux at 16.4' / 5 m
50% Zoom: 595 lux at 16.4' / 5 m
Dynamic Effects
Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Zoom: Manual
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Connections
Power Connection: Edison (Local) Plug to Seetronic PowerCon IP65
Power Input: Seetronic PowerCon IP65
Power Output: Seetronic PowerCon IP65
Data Connectors: 5-Pin XLR
Cable Length (Power): 5' / 1.5 m
Firmware Update: USB
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17, or HSV
Modes/Personalities: 9 Personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, or HSV)
Certifications
CE, MET, FCC
IP Rating: IP20, Dry Location
Temperature (Ambient): -4 to 113°F / -20 to 45°C
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 7 Units at 120 V; 11 Units at 208 V; 12 Units at 230 V
Power and Current: 208 W, 1.71 A at 120 V, 60 Hz
Power and Current: 219 W, 1.10 A at 208 V, 60 Hz
Power and Current: 220 W, 0.98 A at 230 V, 50 Hz
Housing Material
Aluminum
Gel Frame Holder
6.29" / 159 mm
Gobo Size
Outside: "M" 2.6" / 66 mm
Image: 1.9" / 48 mm
Thickness: 0.08" / 2 mm
Dimensions
18.1 x 12.2 x 17.5" / 461 x 445 x 310 mm
Weight
14.8 lb / 6.7 kg
Packaging Info
Package Weight
19.465 lb
Box Dimensions (LxWxH)
27 x 15 x 13.8"
