Includes: White painted Light Engine Only, powerCON Power Cord - NO LENS TUBE
Control: 3-pin DMX, 5-pin DMX

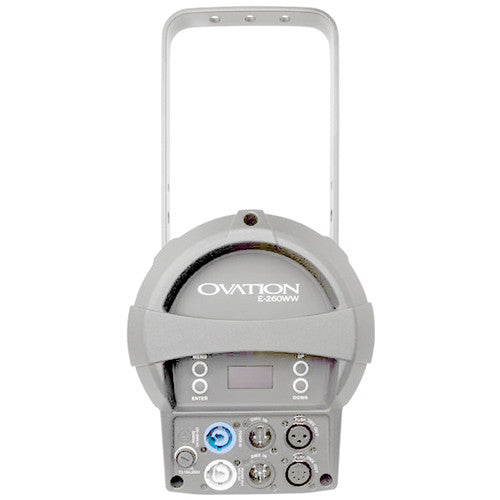

The white Chauvet Ovation E-260WW is an ellipsoidal 3149K LED fixture with a built-in dimmer and DMX control. It is primarily designed for use in a theatrical lighting grid, but it can also be used in film and video productions. Dimming is controllable locally or via DMX with either 1, 2, 3, or 6 channels of control. Manual zoom and focus adjustment lets you tune your light's coverage, which can be further refined with the included framing shutters. A built-in LED info screen aids you in navigating the menu system.
The fixture does not include a lens tube, but it does work with industry standard lens tubes allowing you to customize the fixture as you need. Featuring Pulse Width Modulation (PWM) dimming, the fixture is suitable for theatrical as well as video use. It is compatible with both 8- and 16-bit dimming controllers, and although fan cooled it is very quiet in use.
1, 2, 3, and 6 DMX channels
8- and 16-bit dimming
Accepts industry standard lens tubes (not included), allowing you customize the fixture's beam spread to match your needs
Integrated framing shutters allow you shape the fixture's beam
Incorporates both 3-pin and 5-pin XLR connectors, providing DMX in/out
Uses powerCON connectors, allowing you to daisy-chain the power for up to eight fixtures on a 120 VAC / 15 A circuit
Light Source
1 x LED
202 W (3.6 A)
50,000 hour life expectancy
Color Temperature
3149K (warm white)
Lens Tube
Required
CRI
91
Strobe Rate
0 to 27 Hz
DMX Channels
1, 2, 3, or 6
DMX Connectors
3- and 5-pin XLR (in/out)
IP Rating
IP20
Cooling System
Fan-assisted convection
Power Linking
8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
Power Connections
Input Connector: Neutrik powerCON A
Output Connector: Neutrik powerCON B
Power Cord Plug: Edison (U.S.)
Input Voltage
Auto-ranging 100 to 240 VAC, 50/60 Hz, switching (internal)
Power Consumption
209 W / 1.655 A @ 120 V, 60 Hz
204 W / 0.925 A @ 230 V, 50 Hz
Approvals
CE, MET
Cable Length
5' (1.52 m)
Dimensions
Fixture Only: 19.49 x 11.22 x 19.17" (495 x 285 x 487 mm)
Weight
Fixture Only: 15.4 lb (7 kg)
