Includes: Light Engine Only, powerCON Power Cord - NO LENS TUBE
Control: 3-pin DMX, 5-pin DMX

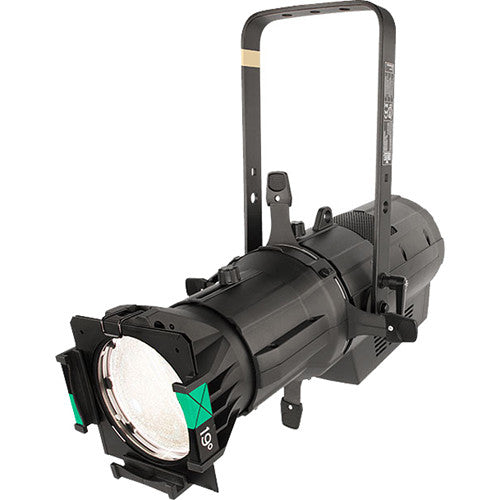

The black Ovation E-160WW Warm White LED Fixture from CHAUVET PROFESSIONAL is an ellipsoidal 3031K LED fixture with a built-in dimmer and DMX control. It is designed for use in studio and theater applications. Dimming is controllable locally or via DMX with either 1, 2, 3, or 6 channels of control. RDM (Remote Device Management) allows for added flexibility, and adjustable PWM (Pulse Width Modulation) helps avoid flickering on the camera. Lens tubes must be purchased separately.
Warm white ERS style fixture with output similar to a tungsten 575W source
Draws less than 100W of power, a true electrical bill-reducing fixture
Ultrasmooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
Flat, even field of light for superior gobo projection
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theater applications
Fixture Type
Spotlight
Light Source
1x Color LED - 86 W / 2.3 A
Colors
Warm White
Beam Angle
4 to 31° (with Included Lens)
Control Protocols
DMX512
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 101 W / 0.86 A
208 VAC, 60 Hz: 100 W / 0.51 A
230 VAC, 50 Hz: 99 W / 0.47 A
Mounting
Single Yoke Only
Light
Fixture Type
Spotlight
Light Source
1x Color LED - 86 W / 2.3 A
Expected Lamp Life
50,000 Hours
Colors
Warm White
Photometrics
5°:
3771 fc / 40,600 Lux at 16.4' / 5 m
10°:
1858 fc / 20,000 Lux at 16.4' / 5 m
14°:
1004 fc / 10,814 Lux at 16.4' / 5 m
19°:
580 fc / 6253 Lux at 16.4' / 5 m
26°:
296 fc / 3189 Lux at 16.4' / 5 m
36°:
178 fc / 1918 Lux at 16.4' / 5 m
50°:
69 fc / 743 Lux at 16.4' / 5 m
Color Temperature
3031K
Lumen Output
5675 Lumens
Beam Angle
4 to 31° (with Included Lens)
Field Angle
7 to 50° (with Included Lens)
Shutter / Strobe
Electronic
Focus
Manual
Zoom Adjustment
Manual
Dimming
16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Performance
Operating Modes
DMX
Macros / Programs
4x Auto-Program
Effects
No
Strobe Rate
0 to 29 Hz
Gobos
No
Color Accuracy Index
CRI: 90
Control
Control Protocols
DMX512
DMX Channel Modes
4 Mode(s):
1 / 2 / 3 / 6-Channel
Display / Controls
LCD / 4-Button
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
2 x XLR 3-Pin DMX Input/Output
2 x XLR 5-Pin DMX Input/Output
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x powerCON
Output: 1x powerCON
Plug Type: NEMA 5-15
Cord Length: 5' / 1.5 m
Fuse
No
Power / Current Consumption
120 VAC, 60 Hz: 101 W / 0.86 A
208 VAC, 60 Hz: 100 W / 0.51 A
230 VAC, 50 Hz: 99 W / 0.47 A
Power Linking
15 Units at 120 VAC
26 Units at 208 VAC
28 Units at 230 VAC
30 Units at 240 VAC
Environmental
Environmental Protection
No
Operating Temperature
113°F / 45°C
Physical
Mounting
Single Yoke Only
Included Accessories
1x Power Cable
Duty Cycle
No
Exterior Color
Black
Cooling
Forced Convection
Certifications
CE, MET, FCC
Dimensions
19.49 x 19.17 x 11.22" / 49.5 x 48.69 x 28.5 cm (Light)
Weight
14.2 lb / 6.4 kg
