Description
Includes: IP PowerkON Power Cord Control: 5-pin DMX

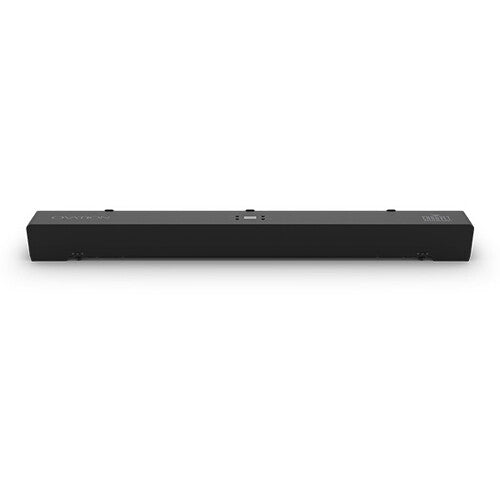

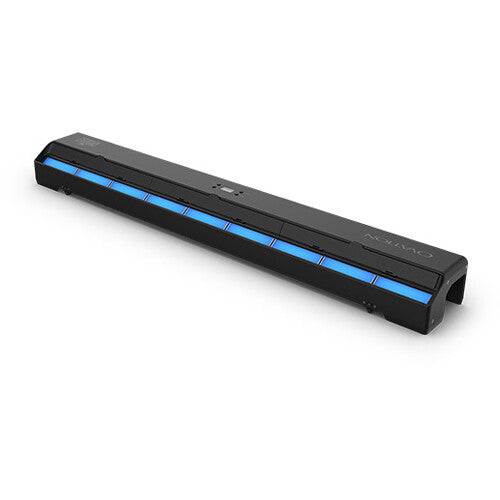

Lighting designers looking for a low-profile and lightweight cyclorama wash or footlight fixture will be impressed with the Ovation CYC 3 FC Cyclorama Wash/Footlight Fixture from CHAUVET PROFESSIONAL, a sleek, discrete, and lightweight cyc fixture that delivers a wide smooth field of light with remarkable reach, well suited for theater, film, and broadcast production.
The Ovation CYC 3 FC features an advanced 16-bit color mixing system with a red, green, blue, amber, and lime LED engine that renders nearly any color with realism and saturation. Its virtual color wheel can color match popular gel colors and color temperature presets. The beam can be modified using the integrated kickstand and adjustable glare shield, which results in a flat, even field of light with excellent color mixing.
The fixture is convection cooled, allowing for silent operation, while the adjustable PWM can be configured to avoid the dreaded camera flicker. The unit can be controlled via DMX and RDM with nine personalities and nine channels (2, 4, 5, 8, 11, 13, 14, 16, and HSV). The Ovation CYC 3 FC includes power-thru via PowerCon connectors. A power cord and Omega bracket are included.
Key Features
Low-profile and lightweight cyclorama wash or footlight fixture
Display a full spectrum of hues with RGBAL LEDs for theatre, film, and production
Theater-ready with 16-bit dimming of master dimmer and individual colors
Beam modification with built-in “kickstand” and adjustable glare shield
Flat, even field of light with superior color mixing
Virtual Color wheel with color matched to popular gel colors and color temperature presets
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Silent operation for use in studio and theatre applications
Optical
Light Source
180 LEDs (36 Red, 36 Green, 36 Blue, 36 Amber, 36 Lime) 2.5 to 3.5 W, (725 mA)
Color Temperature
2800 to 6500K
CRI
90 (at 3200K)
Beam Angle
111.4° (Horizontal), 76.7° (Vertical)
Field Angle
151.8° (Horizontal), 134.4° (Vertical)
Illuminance
19,575 Lumens
280 Lux at 16.4' / 5 m
PWM Frequency
600, 1200, 2000, 4000, 6000, 25,000 Hz
Dynamic Effects
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 29 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dimmer Modes
4
Dimmer Curves
4
Automated Programs
Built-In
User Programs
Yes, with Recall
Control
Control Protocol
DMX, RDM
DMX Channels
1, 3, 5, 7, 10, 12, 13, 16, 17, 33
Modes/Personalities
11 Personalities (1, 3, 5, 7, 10, 12, 13, 16, 17, 33, HSV)
Connections
Power Connections
Edison (Local) Plug to Seetronic PowerCon IP65
Power Input
Seetronic PowerCon IP65
Power Output
Seetronic PowerCon IP65
Data Connector
5-Pin XLR
Cable Length
5' / 1.5 m (Power)
Power
Input Voltage
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking
4 Units at 120 V
6 Units at 208 V
7 Units at 230 V
Power and Current
345 W, 2.93 A at 120 V, 60 Hz
338 W, 1.77 A at 208 V, 60 Hz
334 W, 1.64 A at 230 V, 50 Hz
Physical
Housing Material
Die-Cast Aluminum
Color
Black
Dimensions
47.13 x 6.3 x 4.33" / 119.7 x 16 x 11 cm
Weight
24.6 lb / 11.2 kg
Packaging Info
Package Weight
30.54 lb
Box Dimensions (LxWxH)
52.5 x 10 x 8"
