Includes: powerCON Power Cord, Color Blending Filter Control: 3-pin DMX, 5-pin DMX, ArtNet, sACN,

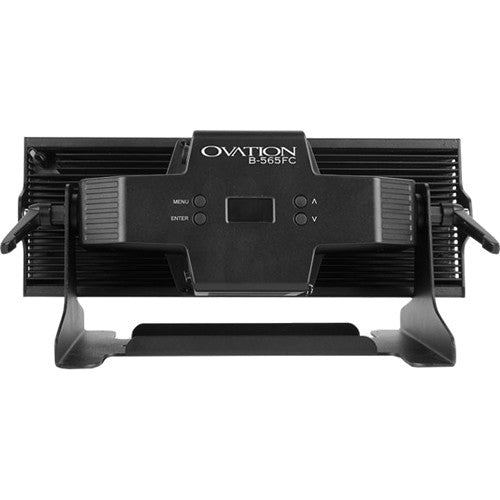

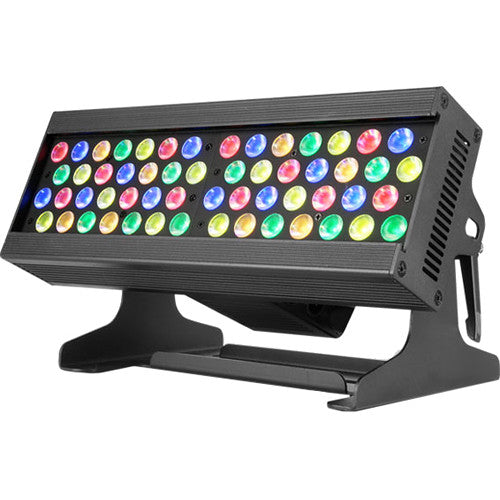

The Ovation B-565FC from Chauvet is a batten-style light fixture featuring an RGBA-Lime color system, two sections of control, and support for DMX, RDM, Art-Net, and sACN for programming and networking options. This compact yet powerful fixture not only makes a remarkable batten light, but also a standard wash as well. A holographic filter is included and locks into place so the fixture can be used in any orientation without worrying about the filter sliding out.
Full color LED (RGBAL) batten-style fixture for theater, film, and production
Theater-ready with 16-bit dimming of master dimmer and individual colors
Multiple control personalities with one or two sections of control
Included holographic filter locks in place for smooth color mixing with a more elliptical wash pattern
Virtual color wheel with color matched to popular Rosco Gel colors
Art-Net, sACN, 3- and 5-pin DMX, and RDM (Remote Device Management) for added control flexibility
Neutrik powerCON, and Amphenol etherCON compatible connections for power and data linking
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Nearly silent operation for use in studio and theater applications
Standalone color mixing
Light Source
56 x R/G/B/A/L LEDs, 8 W (740 mA)
(12 x red, 12 x green, 12 x blue, 8 x amber, 12 x lime)
Life Expectancy
50,000 hours
Illuminance
1409 lux @ 16.4' / 5 m
Beam Angle
Horizontal: 19°
Vertical: 20°
Field Angle
Horizontal: 37°
Vertical: 37°
Optics
20° (installed)
Color Mixing
RGB, RGBA, RGBAL, RGBAL (16-bit)
Color Temperature
2800 to 6500K
Color Temperature Presets
Yes
Dimmer
Electronic
Dimmer Curves
4 x curves
Shutter/Strobe
Electronic
Strobe Rate
0 to 30 Hz
Built-In Programs
Yes
PWM Frequency
600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
Protocols
Art-Net, DMX, RDM, sACN
DMX Connectors
Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin
Data Connector
Input: Amphenol etherCON
Output: Amphenol etherCON
DMX Channel Modes
16 x Modes:
1-Cell: 3, 4, 5, 8, 9, 10, 10, 17
2-Cell: 6, 8, 10, 15, 17, 19, 20, 31
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Connectors
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Power Linking
120 V: 13 units
208 V: 22 units
230 V: 23 units
Power Consumption
120 V, 60 Hz: 125 W, 1.04 A
208 V, 60 Hz: 120 W, 0.61 A
230 V, 50 Hz: 119 W, 0.51 A
Power Cable
Edison plug to Neutrik powerCON
Power Cable Length
5' / 1.5 m
Certifications & Approvals
CE, MET
IP Rating: IP20, dry location
Housing Material
Aluminum die-cast
Dimensions
14 x 7.5 x 8.1" / 36 x 19 x 21 cm
Weight
12 lb (5.3 kg)
Packaging Info
Package Weight
14.375 lb
Box Dimensions (LxWxH)
17.2 x 11.5 x 10.2"
