Includes: powerCON Power Cord, Color Blending Filter Control: 3-pin DMX, 5-pin DMX, ArtNet, sACN,

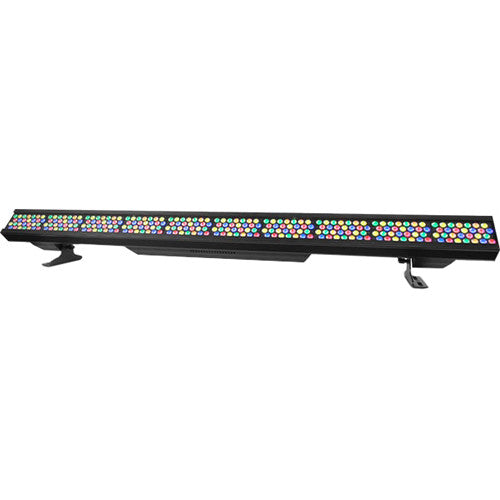

Lighting designers in need of a linear LED light strip should check out the Chauvet Professional Ovation B-2805FC, a batten-style light fixture featuring an RGBA-Lime color system, well suited for theater, concerts, clubs, special events, broadcast applications, and film and TV. The fixture features up to ten sections of control and support for DMX, RDM, Art-Net, and sACN for programming and networking options.
The Ovation B-2805FC features a virtual color wheel and color-temperature presets. This compact yet powerful fixture not only makes a remarkable batten light, but also a standard wash light as well. A holographic filter locks into place for enhanced wall/cyclorama grazing ability.
Full-color LED (RGBAL) batten fixture for theatre, film and production
Theatre-ready with 16-bit dimming master dimmer and individual colors
Multiple-control personalities for complex programming schemes up to 10 sections of control
Included holographic filter for use in cyc lighting or wall grazing applications for ultrasmooth color mixing
Virtual color wheel with color matched to popular gel colors
Art-Net, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
Neutrik powerCON and Amphenol etherCON compatible connections for power and data linking
Adjustable PWM (pulse width modulation) to avoid flickering on camera
Nearly silent operation for use in studio and theatre applications
Fixture Type
Linear/Bar Light
Light Source
280x Color LED - 3 W
Colors
Red, Green, Blue, Amber, Lime
Pixel Configuration
10x Zone
Beam Angle
25°
20°
52° (with Filter)
20° (with Filter)
Show More
Control Protocols
DMX512, RDM, Art-Net, sACN
AC Input Power
100 to 240 VAC, 50/60 Hz
Power / Current Consumption
120 VAC, 60 Hz: 591 W / 4.92 A
208 VAC, 60 Hz: 565 W / 2.85 A
230 VAC, 50 Hz: 564 W / 2.57 A
Mounting
Mounting Bracket
Light
Fixture Type
Linear/Bar Light
Light Source
280x Color LED - 3 W
Expected Lamp Life
50,000 Hours
Colors
Red, Green, Blue, Amber, Lime
Pixel Configuration
10x Zone
Photometrics
519 fc / 5586 Lux at 16.4' / 5 m (without Filter)
207 fc / 2230 Lux at 16.4' / 5 m (with Filter)
Color Temperature
2800 to 10,000K
Lumen Output
32,673 Lumens
Beam Angle
25°
20°
52° (with Filter)
20° (with Filter)
Field Angle
42°
40°
83° (with Filter)
40° (with Filter)
Shutter / Strobe
Electronic
Dimming
16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
Performance
Operating Modes
Automatic, Color Change, Color Dimmer, DMX, Standalone
Macros / Programs
9x Auto-Program
Effects
Strobe
Strobe Rate
0 to 30 Hz
Gobos
No
Control
Control Protocols
DMX512, RDM, Art-Net, sACN
DMX Channel Modes
4 Mode(s):
3 / 4 / 5 / 8 / 9 / 10 / 15 / 17 / 19 / 20 / 31 / 33 / 38 / 43 / 50 / 70 / 73 / 83 / 100 / 135-Channel
Display / Controls
LCD / 4-Button
Remote Control
No
Connectivity
Inputs/Outputs
2 x XLR 3-Pin DMX Input/Output
2 x XLR 5-Pin DMX Input/Output
1 x etherCON/RJ45 DMX Input/Output
Power
AC Input Power
100 to 240 VAC, 50/60 Hz
AC Power Connector
Input: 1x powerCON
Output: 1x powerCON
Plug Type: NEMA 1-15
Cord Length: 5' / 1.5 m
Fuse
No
Power / Current Consumption
120 VAC, 60 Hz: 591 W / 4.92 A
208 VAC, 60 Hz: 565 W / 2.85 A
230 VAC, 50 Hz: 564 W / 2.57 A
Power Linking
2 Units at 120 VAC
4 Units at 208 VAC
5 Units at 230 VAC
5 Units at 240 VAC
Total Current: 13.6 A
Environmental
Environmental Protection
No
Physical
Mounting
Mounting Bracket
Included Accessories
1x Power Cable
1x Filter
Duty Cycle
No
Exterior Color
Black
Max Housing Temperature
113°F / 45°C
Cooling
Forced Convection
Dimensions
69 x 8.26 x 8.13" / 175.3 x 20.98 x 20.65 cm
Weight
45.4 lb / 20.6 kg
Packaging Info
Package Weight
51.5 lb
Box Dimensions (LxWxH)
72.3 x 11.1 x 9"
