Description
Includes: Powerkon to edison cord, qrg, 1 3P terminal block, 2 5P terminal block, 2 short rack ears, 1 long rack ear, 2 metal brackets with 4 screwsEU

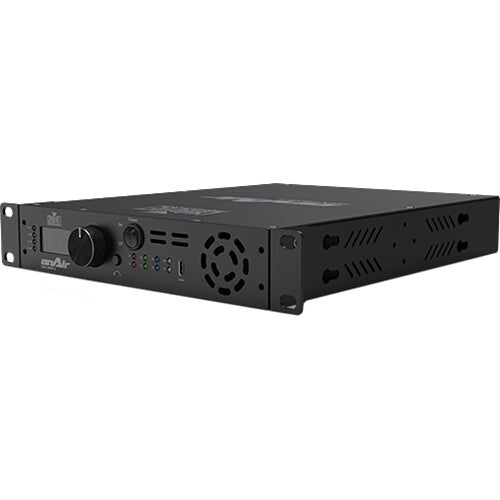

Add a powerful LED driver to your broadcast studio with this onAir Flex Drive 2 from Chauvet Professional. The driver provides 24V output, allowing long cable runs and featuring eight DMX output channels.
It supports adjustable PWM, and it has two outputs with up to 350W total that support RGBW tape and 4-channel control, and it features dynamic color mixing and automated programs. Its 1 RU half-rack chassis provides convection cooling, power linking, and built-in overcurrent and short-circuit protection. There are 5-pin DMX and 3-pin Phoenix connectors to assist with installation. A Neutrik powerCON TRUE1 power cable is included to power the unit.
Key Features
TV focused 24 VDC constant voltage LED Driver with integrated power supply
Adjustable PWM makes this product ideal for broadcast compatibility
Two outputs support RGBW or generic 4-channel control for up to 350W of total power
Assisted convection cooling utilizes a quiet fan for studio environments
Built-in overcurrent and short circuit protection with indicator LEDs
RDM supported for remote device management
Scalable rack mount system, two per 1 RU space

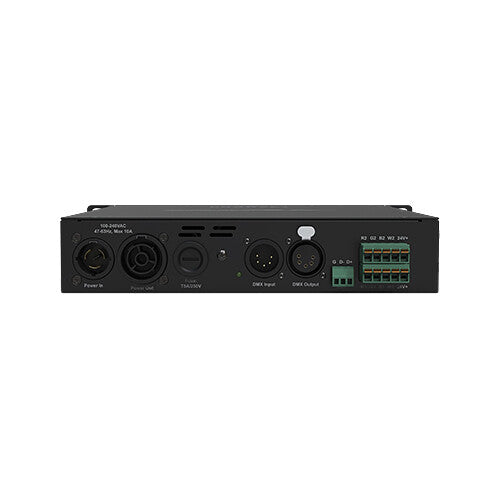

DMX 5-pin and 3-pin Phoenix connectors for installation support
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature
-4 to 113°F / -20 to 45°C
