Description
Includes: Removable Power Supply, Ball Head Mount, Clamp Bolt Threaded Insert, Baby Pin Receiver, IP PowerKon Cord, 3-pin XLR DC Power Jumper, mini-XLR to 5-Pin DMX connector

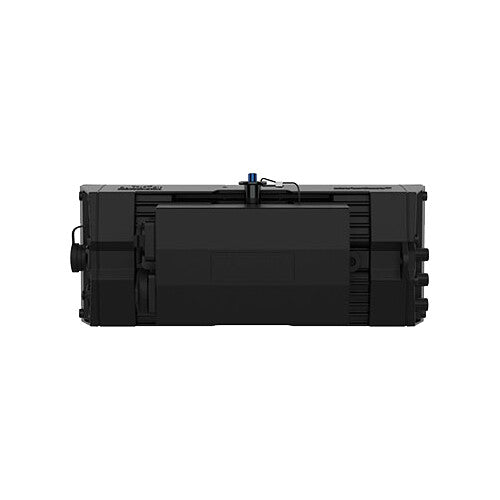

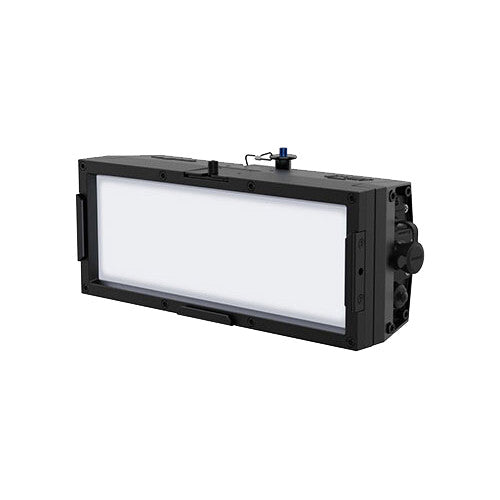

The Chauvet Professional onAir Panel Min IP is a rugged, IP65-rated, full-spectrum soft LED light with a small and rugged format. It will withstand the elements in a wide array of shooting situations. Ready to go on location or squeeze into any studio space with a low-trim, it features a high CRI of 95, ultra smooth 16-bit dimming curves, +/- green adjustment, an emulated redshift, and built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all your remote needs
Full-Spectrum LED soft light panel for broadcast, film, and special events
IP65 rating for all-weather use
Easily switch mounting options
Adjustable PWM (Pulse Width Modulation) for flicker-free performance
Remote Device Management and CRMX Wireless Control for added flexibility
Item Type
1 x LED Light Panel
Photometrics
:
109 fc / 1175 at 3.3' / 1 m*
4 fc / 47 Lux at 16.4' / 5 m
*Standardized Measurement Calculated Internally Based on Closest Distance
Show More
Color Temperature
2800 to 8000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 95
Dimming
Built-In Dimmer
Beam Angle
95°
Wireless Remote Control Type
(CRMX)
Power Source
AC Power (Cable Included)
Battery (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
28 VDC
Fixture Mounting
1 x 1/4"-20 Female Thread
Light Fixture
Item Type
1 x LED Light Panel
Included Storage Case
No
Lumens
2,573
Photometrics
:
109 fc / 1175 at 3.3' / 1 m*
4 fc / 47 Lux at 16.4' / 5 m
*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2800 to 8000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 95
Cooling System
Fan
Dimming
Built-In Dimmer
Expected Lamp Life
50,000 Hours
Beam Angle
95°
Built-In Flash
No
Umbrella Mount
No
Connectivity
Wireless Remote Control Type
(CRMX)
Mobile App Compatible
No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Max DMX Control Channels
15
Power & I/O
Power Source
AC Power (Cable Included)
Battery (Not Included)
Inputs/Outputs
Light Fixture
1 x XLR 3-Pin Battery/Power Input (28 VDC)
1 x Mini-XLR 5-Pin DMX Input
1 x USB-C Female Service Input
Power Supply/Controller
1 x Powerkon IP65 AC Power Input
1 x XLR 3-Pin Power Output
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
28 VDC
Included Adapter / Cable
1 x Edison Plug to Powerkon IP65 Cable (' / 1.5 m)
• 5 VDC
Inline Switch
No
Power Pass-Thru
No
Mounting
Fixture Mounting
1 x 1/4"-20 Female Thread
Included Adapter
1 x Ball Head Mount: Accessory Foot with 1/4"-20 Female Thread to 1/4"-20 Male Screw
1 x Non-Swivel Mount: 5/8" Receiver to 1/4"-20 Female Thread
Environmental
Operating Temperature
-4 to 113°F / -20 to 45°C
General
Display
LCD
Certifications
CE
MET
FCC
Materials
Aluminum
Dimensions
10 x 5.6 x 4.3" / 25.4 x 14.3 x 10.9 cm
Weight
6.2 lb / 2.9 kg
