Description
Includes: Omega Bracket, Medium Diffusion Filter, Omega Bracket, Jr. Pin, IP PowerKon Cord Control: 5-Pin DMX, Artnet, sACN, Wireless control via CRMX

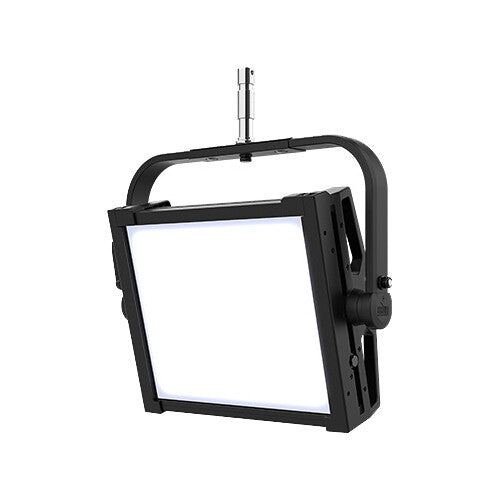

The Chauvet Professional onAir Panel 1 IP is a rugged, IP65-rated, full-spectrum soft LED light with a 1x1 format. It will withstand the elements in a wide array of shooting situations. Ready to go on location for any broadcast setting, it features a high CRI of 95, ultra smooth 16-bit dimming curves, +/- green adjustment, an emulated redshift, and built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all your remote needs
Item Type
1 x LED Light Panel
Photometrics
:
383 fc / 4125 Lux at 3.3' / 1 m*
15 fc / 165 Lux at 16.4' / 5 m
*Standardized Measurement Calculated Internally Based on Closest Distance
Show More
Color Temperature
2800 to 8000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 95
Dimming
Built-In Dimmer
Beam Angle
99°
Wireless Remote Control Type
(CRMX)
Power Source
AC Power (Cable Included)
Battery (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
28 VDC
Power Consumption
187 W (Maximum)
Fixture Mounting
1 x 1-1/8" Stud (Via Yoke Mount)
Light Fixture
Item Type
1 x LED Light Panel
Included Storage Case
No
Lumens
10,092
Photometrics
:
383 fc / 4125 Lux at 3.3' / 1 m*
15 fc / 165 Lux at 16.4' / 5 m
*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2800 to 8000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 95
Cooling System
Fan
Dimming
Built-In Dimmer
Expected Lamp Life
50,000 Hours
Beam Angle
99°
Built-In Flash
No
Umbrella Mount
No
Connectivity
Wireless Remote Control Type
(CRMX)
Mobile App Compatible
No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Max DMX Control Channels
16
Power & I/O
Power Source
AC Power (Cable Included)
Battery (Not Included)

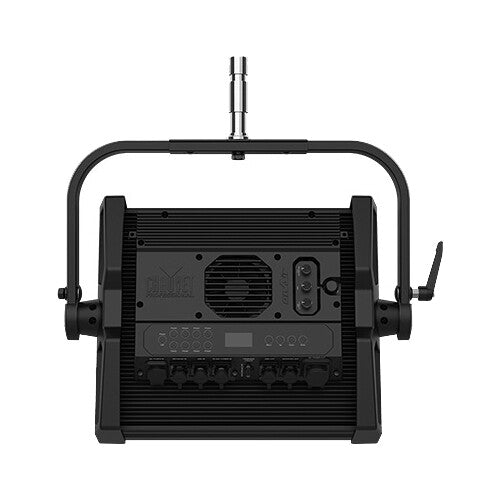

Inputs/Outputs
1 x Powerkon IP65 AC Power Input
1 x Powerkon IP65 AC Power Output
1 x XLR 3-Pin Battery/ Input (28 VDC)
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
2 x etherCON/RJ45 Network Input/Output
1 x USB-A Female Service Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
28 VDC
Included Adapter / Cable
1 x Edison Plug to Powerkon IP65 Cable (' / 1.5 m)
• 5 VDC
Inline Switch
No
Power Pass-Thru
Yes
Power Consumption
187 W (Maximum)
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1 x 1-1/8" Stud (Via Yoke Mount)
Environmental
Operating Temperature
-4 to 113°F / -20 to 45°C
General
Display
LCD
Certifications
CE
MET
FCC
Materials
Aluminum
Dimensions
22 x 21.8 x 5.7" / 55.9 x 55.4 x 14.6 cm
Weight
28 lb / 12.7 kg
Full-Spectrum LED soft light panel for broadcast, film, and special events
IP65 rating for all-weather use
Easily switch mounting options
Adjustable PWM (Pulse Width Modulation) for flicker-free performance
Remote Device Management and CRMX Wireless Control for added flexibility
