OmniFlex 360 – Versatile 360° Flexible Luminaire for Dynamic Lighting Effects
The OmniFlex 360 is a fully flexible tubular luminaire designed to deliver seamless 360-degree illumination for film, television, live entertainment, and architectural applications. Available in two distinct finishes, the stealth black version blends into dark environments for discreet installations, while the diffused white version provides maximum brightness and colour. Offered in RGB, Dynamic White (2700K–6000K), RGBW, Pixel RGB, and Pixel RGB+W configurations, the OmniFlex 360 delivers unmatched flexibility in unique lighting effects.
Key Features:
360° Illumination – Uniform, full-range light distribution in a flexible form.
Stealth Black Finish – Blends into dark environments when off for unique lighting effects.
Diffused White Finish – Maximizes brightness with smooth, even light output.
Multiple Configurations – Available in RGB, Dynamic White, RGBW, Pixel RGB, and Pixel RGBW.
Customizable Lengths – Lengths from 0.5 to 6 meters to fit any setup.
Seamless Connectivity – Side input/output wiring for continuous installations.
Mounting Accessories – Brackets, joiners, hangers and straight mounting channels available.
Special Order – Touring-grade molded flush mount end cap available upon request.
Product Type : Dynamic White (2700k - 6000k) RGB (Standard) RGBW (Standard) Pixel RGB Pixel RGBW
Product Code : ONFX-O24VO24X-276095-YMBEWS ONFX-O24VO24X-RGBNA-YMBEWS ONFX-O24VO24X-RGBWYY95-ZMBEWS ONFX-O12VO24X-RGBNA-YMBEWGS8208S ONFX-O24VO24X-RGBWYY95-ZMBEW7604S
CRI / TLCI : 95+ N/A 95+ N/A 95+
Kelvin : Adjustable 2700k - 6000k Colour Changing Colour Changing plus White (2700k/4000k/5600k) Colour Changing Colour Changing plus White (2700k/4000k/5600k)
Housing : Black or White Black or White Black or White Black or White Black or White
Current, Rating : 0.832 A / meter 0.832 A / meter 0.832 A / meter 2.45 A / meter 1.29 A / meter
Voltage : 24 VDC 24 VDC 24 VDC 12 VDC 24 VDC
Wattage : 14.4 W / meter 20 W / meter 20 W / meter 28.8 W / meter 31 W / meter
CC / CV : Constant Voltage Constant Voltage Constant Voltage Constant Current (Pixel Control) Constant Current (Pixel Control)
IP Rating : IP67 IP67 IP67 IP67 IP67
Lumens @ Full : 594 (White Housing) N/A N/A N/A N/A
Lumen / Watt : 41.25 (White Housing) N/A N/A N/A N/A
Lifetime* : 35,000 hours 35,000 hours 35,000 hours 35,000 hours 35,000 hours
Cutting Length : 5 CM (1.97") 5 CM (1.97") 5 CM (1.97") 1.041 CM (0.41") 8.33 CM (3.28")
LEDs per Meter : 2x280=560 2x96=192 2x120 = 240 2x96=192 2x84=168
Pixel Protocol : None None None GS8208 UCS7604
Pixels per Meter : 1 1 1 96 X RGB Control Segments / meter (Individual LED) 12 X RGBW Control Segments / meter (7 X LEDs per Group)
Number of Contacts : 3 4 5 4 4
LED Type : 2110 5050 3838 5060 4040
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 40ºC
Temperature, Operating, Minimum : -20ºC
Agency Ratings : UL E489028, CE, RoHS, REACH
Width : 24 MM (+/- 0.5MM)
Maximum Recommended Length (power from both ends) : 5 meters 5 meters 5 5 meters 5 meters
Viewing Angle : 360 º
Adhesion : Clip or Extrusion or Hanger (Sold Separately)
Warranty : 5 Years

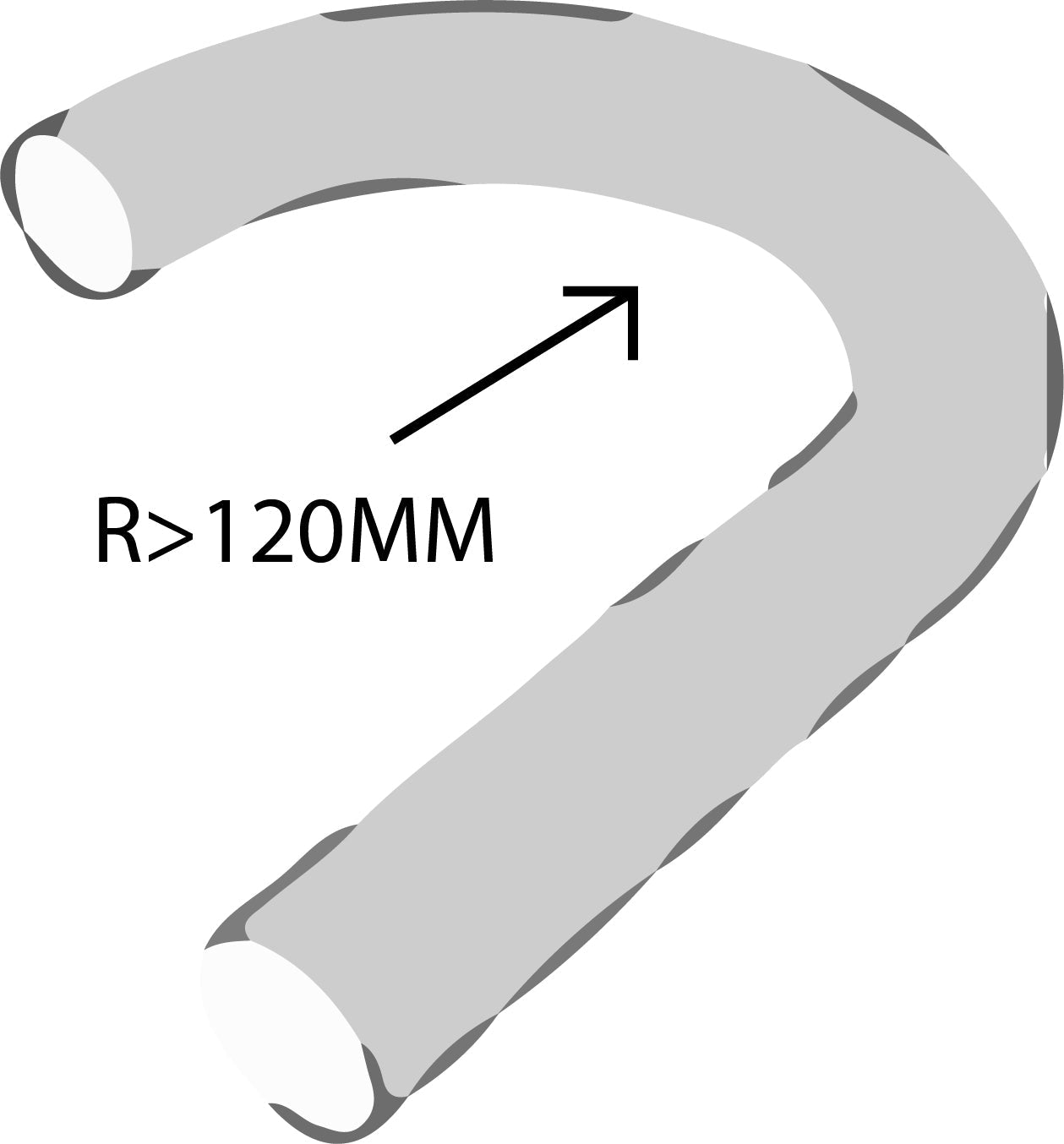

Minimum Bend Radius : R>120mm
End Cap Options : Straight Cable Entry / Side Cable Entry / Side Cable Entry Rugged (Touring Grade)
