Description

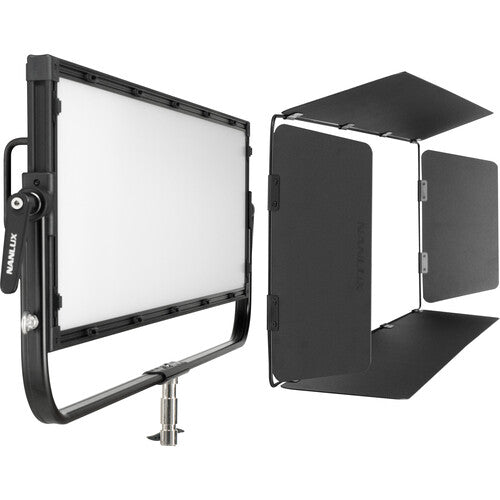

This TK-450 Daylight Soft LED Panel from Nanlux measures 35 x 21.3 x 3.4", has a wide beam spread, and is dimmable from is 0 to 100%. It has a solid 5600K color temperature and a high CRI/TLCI rating of 96/98 to indicate advanced accuracy in color reproduction.
There are several convenient control options including wired DMX, wireless Bluetooth, wireless Lumenradio DMX, and CRMX. The light has 11 built-in Special FX including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. The TK-480 is ready for worldwide use thanks to its 100 to 240V power supply, but will also run on optional V-mount batteries in situations where AC power is unavailable.
Take TK Anywhere
Lightweight and portable with either the AC adapter provided or an optional 14.8V or 26V battery, the TK-450 gives you light in the studio, on set, or in the most remote locations
Multiple Control Options
The TK Series supports on-board control, DMX wired control with wireless control options via built-in Bluetooth, 2.4G, Lumenradio, and CRMX
On-Board Control
The easy-access menu allows you to compose, select, and store lighting effects, all at the touch of a button
11 Built-In Lighting FX
The TK-480 has 11 built-in lighting effects including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. Fully customizable with instant store and playback functions, settings can be used to deliver a broad range of practical, creative effects
Thin, Silent Design
The TK series features a compact, lightweight, slim housing. The passive air-cooling design makes it perfect for use in completely silent shooting environments
Naturally Soft
Advanced LED technology and high-quality diffusion panels combined with a generous surface area create a beautiful, naturally soft yet powerful light with no sharp edges or shadows
Item Type
1 x LED Light Panel
Included Light Modifier
1 x Barndoors
Included Storage Case
No
Photometrics
5600K:
1159 fc / 12,480 Lux at 3.3' / 1 m
164 fc / 1776 Lux at 9.8' / 3 m
68 fc / 736 Lux at 16.4' / 5 m
Show More
Color Temperature
5600K
Color Modes
Daylight
Color Accuracy Standard
CRI 96
TLCI 98
Dimming
Built-In Dimmer
• 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth
Wireless DMX
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
24 VDC at 10 A
Power Consumption
455 W
Fixture Mounting
1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
Light Fixture
Item Type
1 x LED Light Panel
Included Light Modifier
1 x Barndoors
Included Filters
Soft Diffusion
Included Storage Case
No
Photometrics
5600K:
1159 fc / 12,480 Lux at 3.3' / 1 m
164 fc / 1776 Lux at 9.8' / 3 m
68 fc / 736 Lux at 16.4' / 5 m
Color Temperature
5600K
Color Modes
Daylight
Color Accuracy Standard
CRI 96
TLCI 98
Dimming
Built-In Dimmer
• 0 to 100%
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Wireless DMX
Mobile App Compatible
Yes: Android & iOS
App Name: NANLINK
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Power & I/O
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
24 VDC at 10 A
Included Adapter / Cable
Yes
Inline Switch
No
Power Pass-Thru
No
Power Consumption
455 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display
LCD
Dimensions
52.8 x 21.3 x 3.3" / 134 x 54 x 8.5 cm (Fixture with Yoke)
Weight
18.92 lb / 8.58 kg
