Description

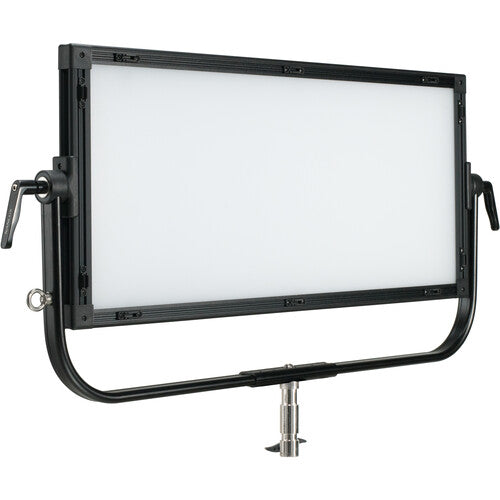

TK-200 LED Daylight Soft Panel Light
This TK-200 Daylight Soft Panel LED Light from Nanlux is 0 to 100% dimmable, measures 35 x 21.3 x 3.4", and has a wide beam spread. The panel also has a solid 5600K color temperature with a high CRI/TLCI rating of 96/98 to indicate superior accuracy in the rendering of color.
The panel has numerous control options including wired DMX, wireless Bluetooth, Lumenradio, and CRMX. The light's 11 built-in Special FX include INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. The light is ready for worldwide use thanks to its 100 to 240V power supply, but will also run on V-Mount batteries in situations where AC power is unavailable.
Multiple Control Options
The TK Series supports on-board control, DMX wired control with wireless control options via built-in Bluetooth, 2.4G, Lumenradio, and CRMX
Take TK Anywhere
Lightweight and portable with a choice of power options, using either the AC adapter provided, or an optional 14.8V / 26V battery, the TK-200 gives you light in the studio, on set, or even in the most remote locations
Upgraded On-Board Control
The easy access menu allows you to compose, select, and store lighting effects, all at the touch of a button
11 Built-In Lighting FX
The TK-200 has 11 built-in lighting effects including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. Fully customizable with instant store and playback function, settings can be used to deliver a broad range of practical, creative effects
Ultra-Slim, Silent Design
The TK series features a compact, lightweight, ultra-slim housing. The passive air-cooling design makes it perfect for use in completely silent shooting environments
Naturally Soft
Advanced LED technology and high-quality diffusion panels combined with a generous surface area, create a beautiful, naturally soft yet powerful light with no sharp edges or shadows
Item Type
1 x LED Light Panel
Included Light Modifier

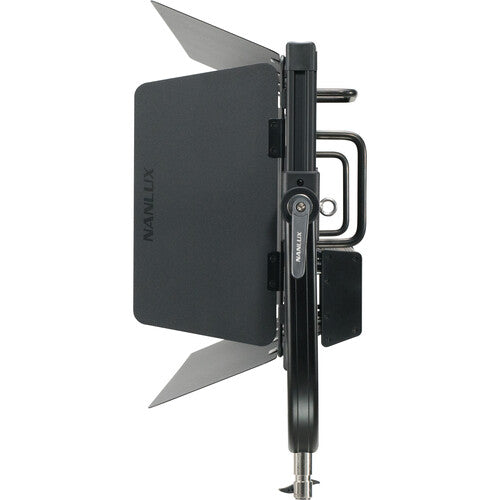

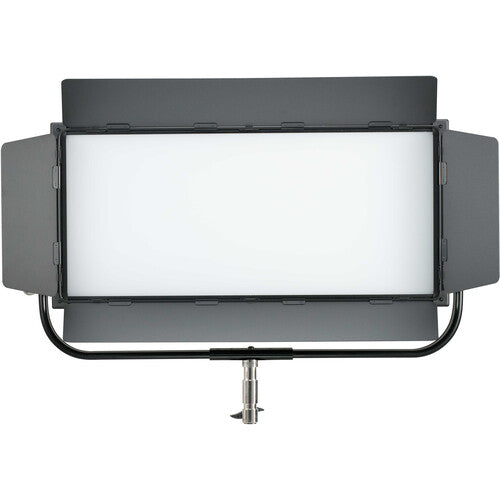

1 x Barndoors
Included Storage Case
No
Photometrics
5600K:
639 fc / 6888 Lux at 3.3' / 1 m
83 fc / 901 Lux at 9.8' / 3 m
34 fc / 374 Lux at 16.4' / 5 m
Show More
Color Temperature
5600K
Color Modes
Daylight
Color Accuracy Standard
CRI 96
TLCI 98
Dimming
Built-In Dimmer
• 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth
Wireless DMX
Power Source
AC to DC Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
24 VDC at 10.4 A
Power Consumption
240 W
Fixture Mounting
1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
Light Fixture
Item Type
1 x LED Light Panel
Included Light Modifier
1 x Barndoors
Included Filters
Soft Diffusion
Included Storage Case
No
Photometrics
5600K:
639 fc / 6888 Lux at 3.3' / 1 m
83 fc / 901 Lux at 9.8' / 3 m
34 fc / 374 Lux at 16.4' / 5 m
Color Temperature
5600K
Color Modes
Daylight
Color Accuracy Standard
CRI 96
TLCI 98
Dimming
Built-In Dimmer
• 0 to 100%
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Wireless DMX
Mobile App Compatible
Yes: Android & iOS
App Name: NANLINK
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Power & I/O
Power Source
AC to DC Adapter (Included)
Inputs/Outputs
1 x XLR 4-Pin Power Input
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
24 VDC at 10.4 A
Included Adapter / Cable
Yes
Inline Switch
No
Power Pass-Thru
No
Power Consumption
240 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display
LCD
Dimensions
35 x 21.3 x 3.3" / 89 x 54 x 8.5 cm (Fixture with Yoke)
Weight
12.6 lb / 5.7 kg
