Description

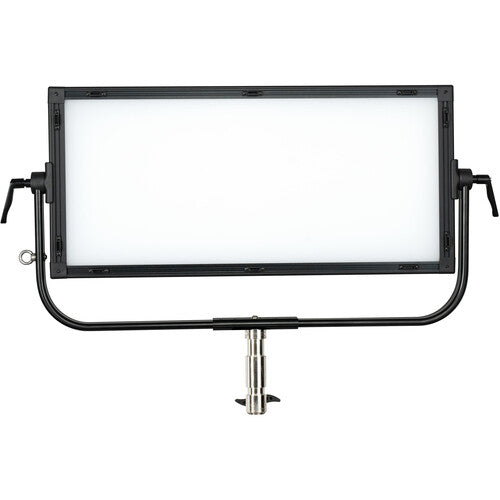

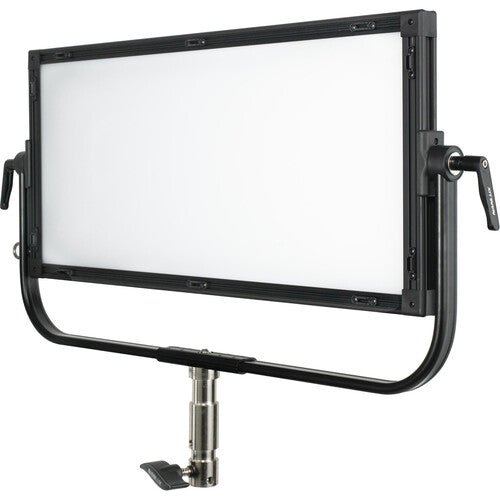

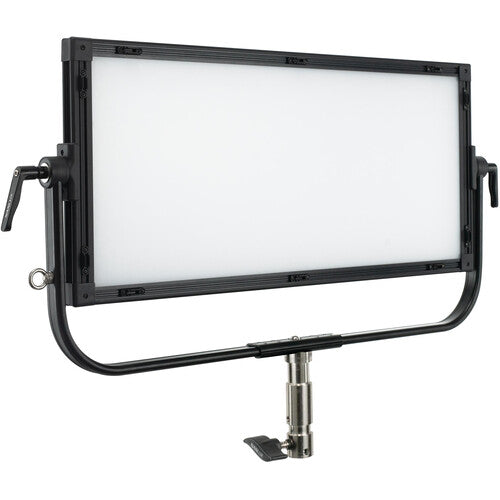

TK-140B LED Bi-Color Soft Panel Light
This 140W Bi-Color Soft Panel LED Light from Nanlux is 0 to 100% dimmable, measures 35 x 21.3 x 3.3", and has a wide beam spread. The panel also has an expansive color temperature range of 2700 to 7500K to meet ambient light challenges, match other fixtures, or just for creative expression. The 140W's high CRI of 98 indicates superior accuracy in the rendering of color.
The panel has numerous control options including wired DMX, wireless Bluetooth, Lumenradio and CRMX. Another feature is the light's 11 built-in Special FX that include INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. The light is ready for worldwide use thanks to its 100 to 240V power supply, but it will also run on V-Mount batteries in situations where AC power is unavailable.
Multiple Control Options
The TK Series supports on-board control, DMX wired control with wireless control options via built-in Bluetooth, 2.4G, Lumenradio, and CRMX
Take TK Anywhere
Lightweight and portable with a choice of power options, using either the AC adapter provided, or an optional 14.8V / 26V battery, the TK-140B gives you light in the studio, on set, or even in the most remote locations
Upgraded On-Board Control
The easy access menu allows you to compose, select, and store lighting effects, all at the touch of a button
11 Built-In Lighting FX
The TK-140B has 11 built-in lighting effects including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. Fully customizable with instant store and playback function, settings can be used to deliver a broad range of practical, creative effects
Precision Color Temperature
The TK-140B allows precision color temperature adjustment between 2700 and 7500K. Quick to set up and simple to operate via the intuitive on-board menu, the TK Series provides fast, accurate dimming, saving you time when creating lighting moods
Ultra-Slim, Silent Design
The TK series features a compact, lightweight, ultra-slim housing. The passive air cooling design makes the fixtures perfect for use in completely silent shooting environments
Naturally Soft
Advanced LED technology and high-quality diffusion panels combined with a generous surface area, create a beautiful, naturally soft yet powerful light with no sharp edges or shadows
Item Type
1 x LED Light Panel

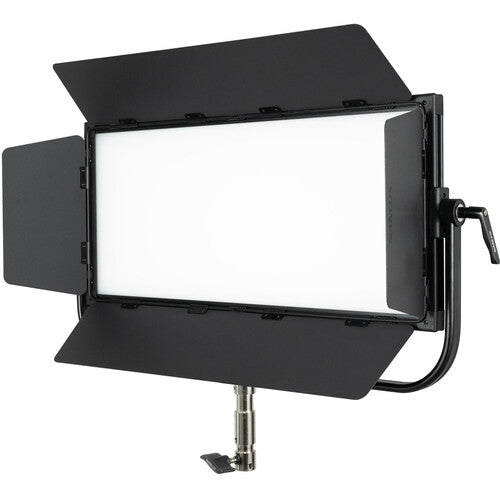

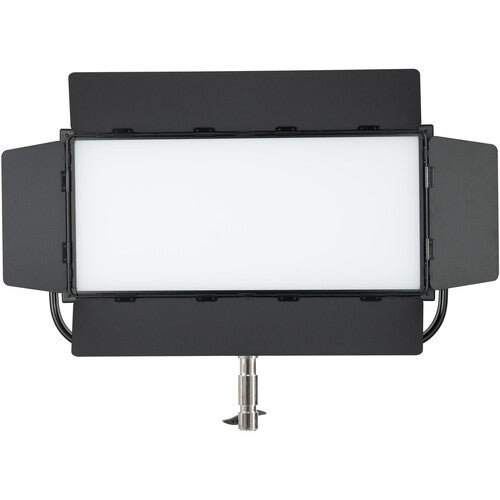

Included Light Modifier

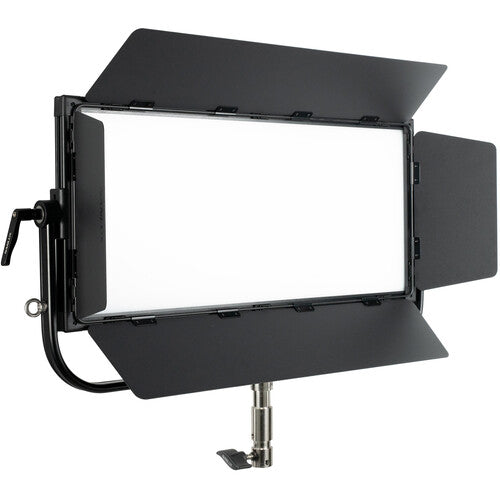

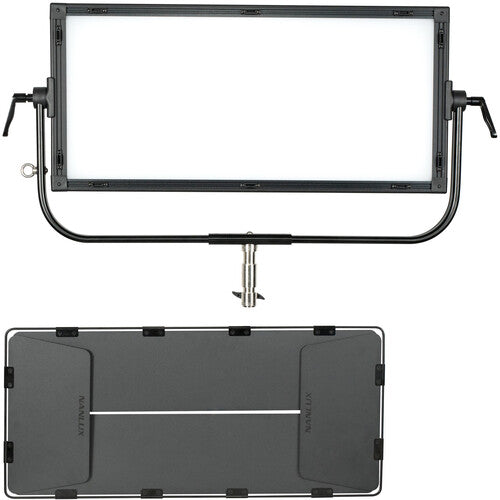

1 x Barndoors
Included Storage Case
No
Photometrics
3200K:
325 fc / 3506 Lux at 3.3' / 1 m
37 fc / 407 Lux at 9.8' / 3 m
15 fc / 168 Lux at 16.4' / 5 m
5600K:
349 fc / 3757 Lux at 3.3' / 1 m
39 fc / 428 Lux at 9.8' / 3 m
16 fc / 175 Lux at 16.4' / 5 m
Show More
Color Temperature
2700 to 7500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 95
TLCI 98
Dimming
Built-In Dimmer
• 0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth
Wireless DMX
Power Source

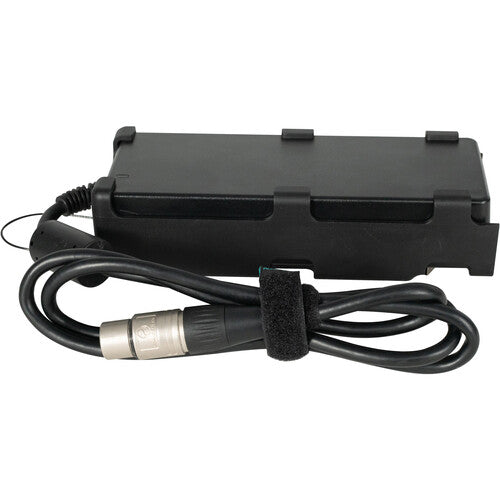

AC to DC Adapter (Included)
Battery (Not Included)

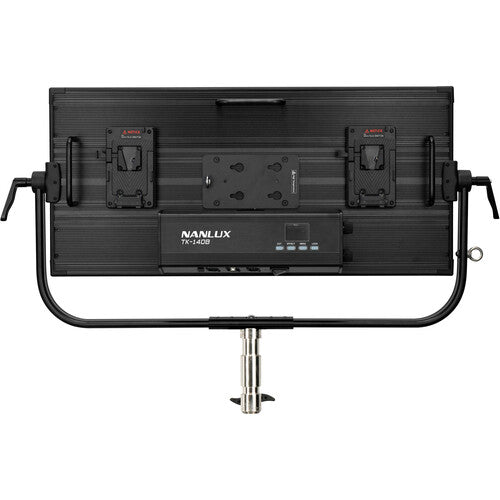

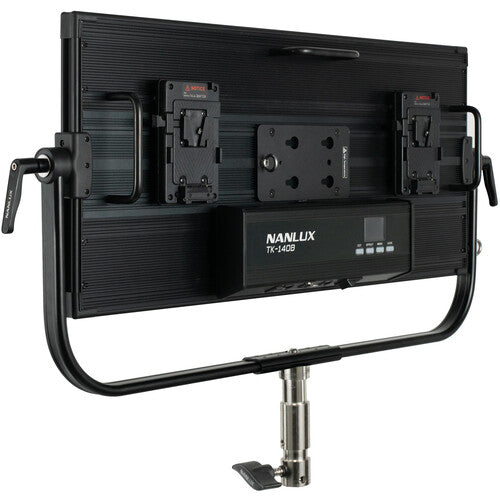

Battery Plate Type

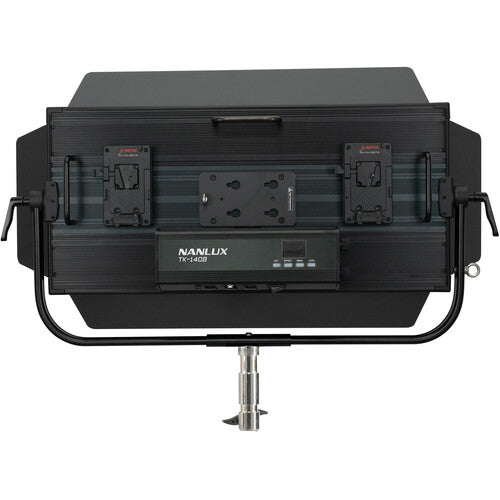

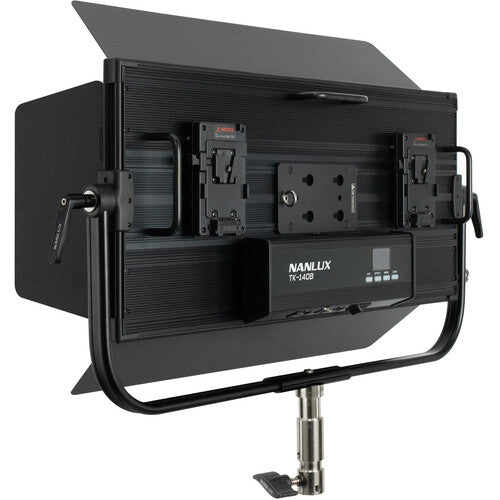

2 x V-Mount (Built-In)
Battery
2 x Rechargeable (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
24 VDC at 6.67 A
Power Consumption
160 W
Fixture Mounting
1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
Light Fixture
Item Type
1 x LED Light Panel
Included Light Modifier
1 x Barndoors
Included Filters
Soft Diffusion (Built-In)
Included Storage Case
No
Photometrics
3200K:
325 fc / 3506 Lux at 3.3' / 1 m
37 fc / 407 Lux at 9.8' / 3 m
15 fc / 168 Lux at 16.4' / 5 m
5600K:
349 fc / 3757 Lux at 3.3' / 1 m
39 fc / 428 Lux at 9.8' / 3 m
16 fc / 175 Lux at 16.4' / 5 m
Color Temperature
2700 to 7500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 95
TLCI 98
Dimming
Built-In Dimmer
• 0 to 100%
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Wireless DMX
Mobile App Compatible
Yes: Android & iOS
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Power & I/O
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs
1 x XLR 4-Pin Power Input
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Battery Plate Type
2 x V-Mount (Built-In)
Battery
2 x Rechargeable (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
24 VDC at 6.67 A

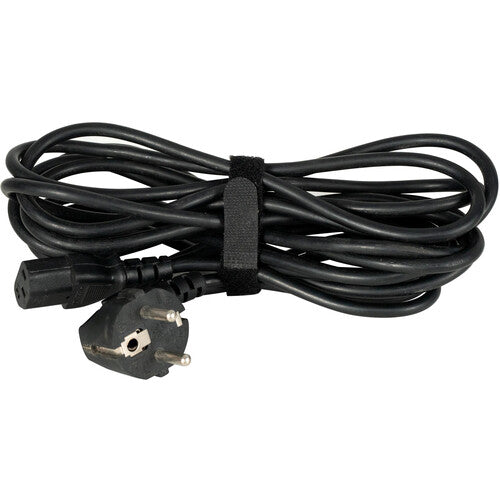

Included Adapter / Cable
Yes
Inline Switch
No
Power Pass-Thru
No
Power Consumption
160 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1 x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display
LCD
Dimensions
35 x 21.3 x 3.3" / 89 x 54 x 8.5 cm (Fixture with Yoke)
Weight
13.36 lb / 6.06 kg
