Description
This MOZZIE kit includes two of everything you need to get up and Spidering plus LumenRadio and our LCD and Teaser for Parabolic mode x2.
YOU GET

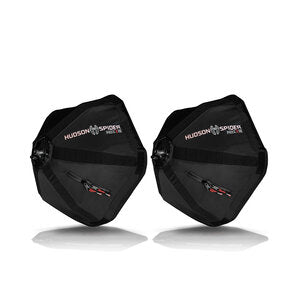

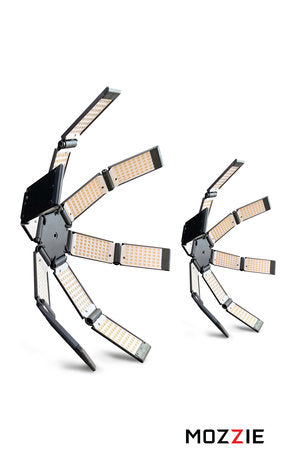

2 x MOZZIE Heads. Deployable 7075/6061 Aluminum Fixtures with 1224 LED's each.
SPEC SHEET
LED
Total LEDs 1,224.
Color range 2600K to 6000K.
Dimming range 0 – 100%..
HEAD
Head size open - parabolic 22.5”/57.15cm ø hex x 7.5”/19.05cm parabola.
Head size open - flat 29”/73.66cm ø hex x 1”/2.5cm.
Configurations Parabolic, flat and folded.

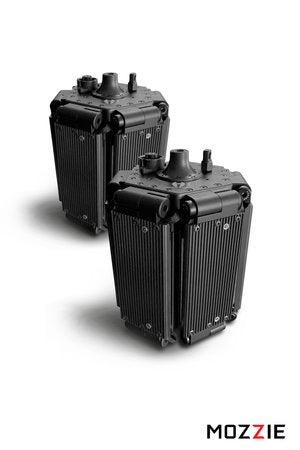

Head size closed 8”/20.32cm x 6” /15.24 CM ø octa.
Head weight 3lbs 4oz / 1.47kgs.
Materials 7071+6065 Aluminum, stainless steel and silicone plastics.
ELECTRONICS
2 BALLAST OPTIONS 400w LiteDimmer, 200w LiteDimmer DC
DATA(LiteDimmer option)
DMX connector Input/output 5 pin XLR connector.
Service port USB Type A – service center upgradeable..
Data protocol DMX 512A.
Wireless Built in LumenRadio.
RIGGING
Mounting point 3/8” Thread front and back.
Baby pin 3/8” Thread, 5/8” ø x 3.5”/8.9cm.
Mounting method Install baby pin to the front or back thread for a 5/8” grip head.
FABRICS
Diffusions 22.5” /57.15cm ø octagon x varied fabrics.
Utility backing cover Poly and nylon fabrics stitched, reinforced and laminated.
CASE
Case type Injection molded waterproof case and custom foam cut insert by SKB.
Case size 20” x 20” x 11” / 50.8cm x 50.8cm x 27.9cm.
Case weight - packed 30lbs / 13.6 kgs.

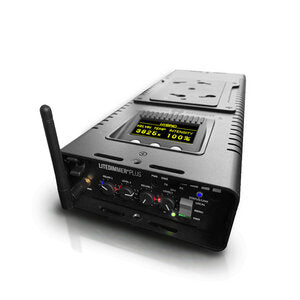

1 x Ballast. LiteDimmer DUO 400 Hybrid 2600-6000k powered by Litegear. 400w, 24v, LumenRadio., 4ch.

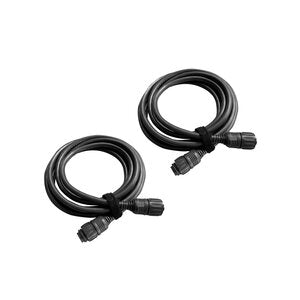

1 x Head feeder. 10’
1 x Head feeder. 23’
1 x Y splitter cable.
1 x Neutrik power connector.
1 x Parabolic Backing. 22” Hexagon.

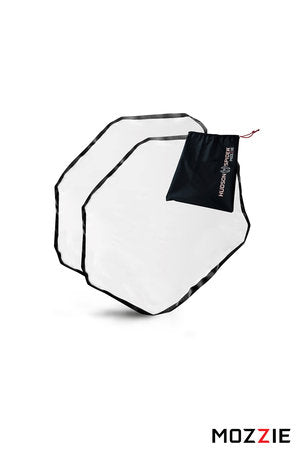

2 x Diffusions for MOZZIE Parabolic mode. Butter and 1/4 Grid.. 22” Hexagon.
1 x Diffusion storage bag.

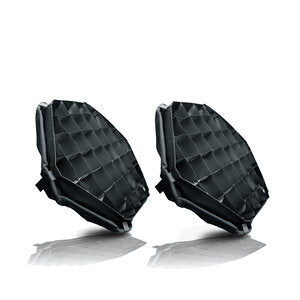

1 x LCD. 22” Fabric Eggcrate.

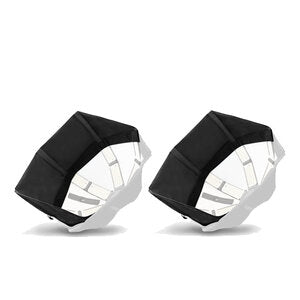

1 x 180 Teaser.
1 x Hand grip.

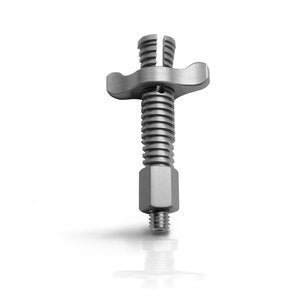

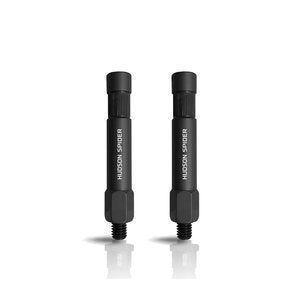

2 x Baby pins for mounting fixtures to any grip head. Length 5” Diameter.5/8”.

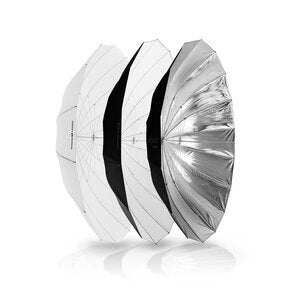

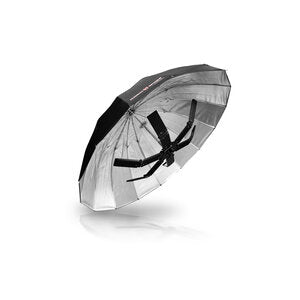

1 x Deep Umbrella. 43” diameter. Soft silver by Wescott
1 x Lightweight Umbrella. 72” diameter by Westcott. White bounce, Silver bounce or Diffusion.
2 x Umbrella mounts.

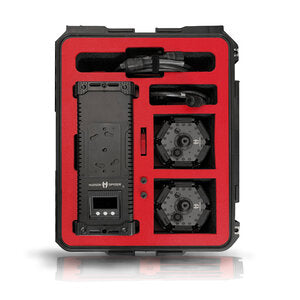

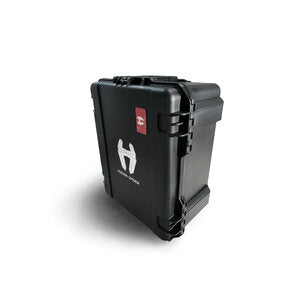

1 x Case with custom foam insert by SKB.
To rig you will require a 5/8 receiver, usually the grip head of a C-Stand.

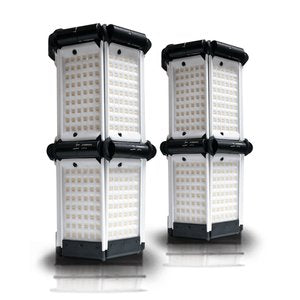

* PLEASE NOTE- OUR HINGE DESIGN HAS CHANGED FROM THE PICTURED BUTTON LOCKING TYPE WITH LIMITED STOPS, TO AN OMEGA FRICTION TYPE WITH INFINITE STOPS. CORN COBB POSITION IS ENABLED ON ALL NEW UNITS.
