Description

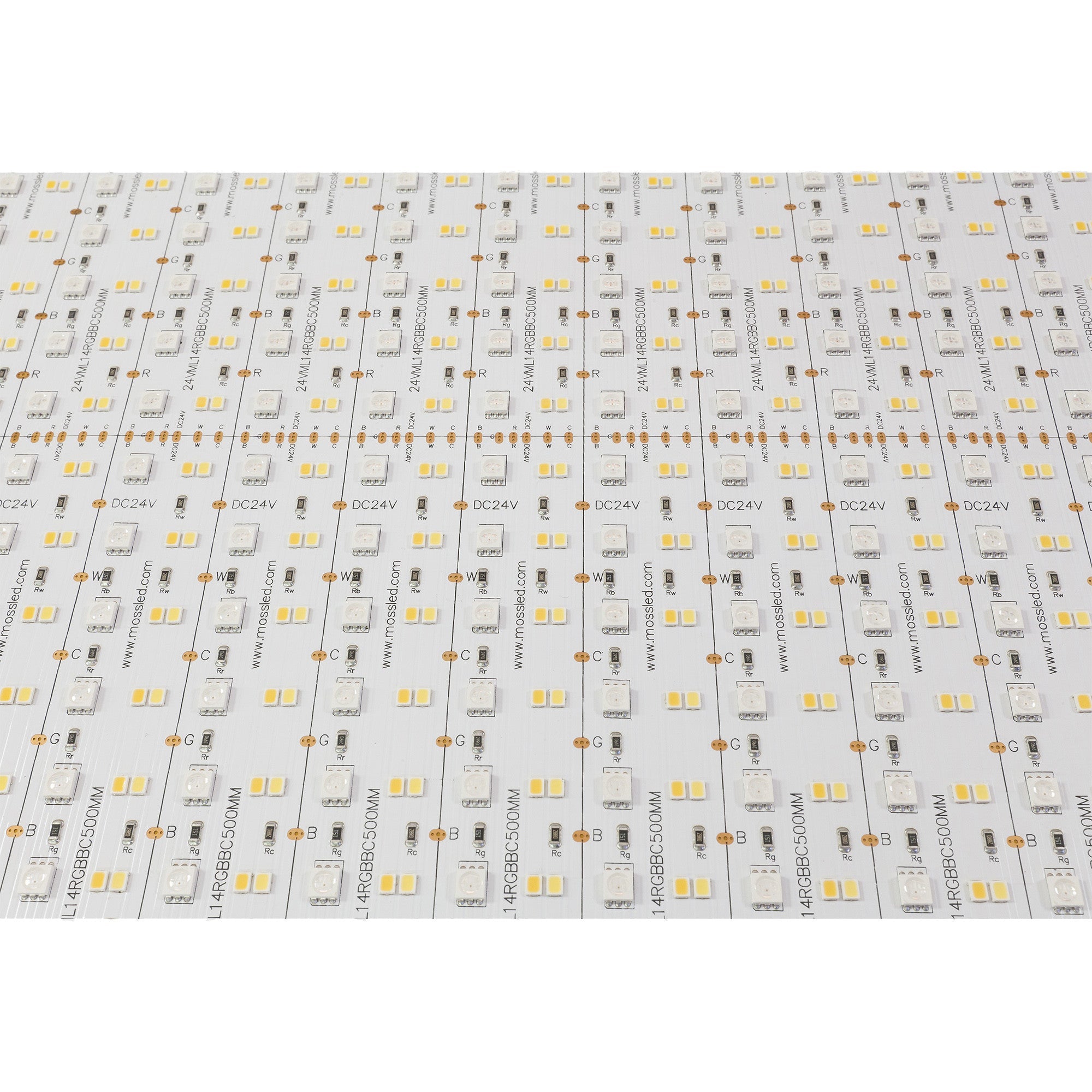

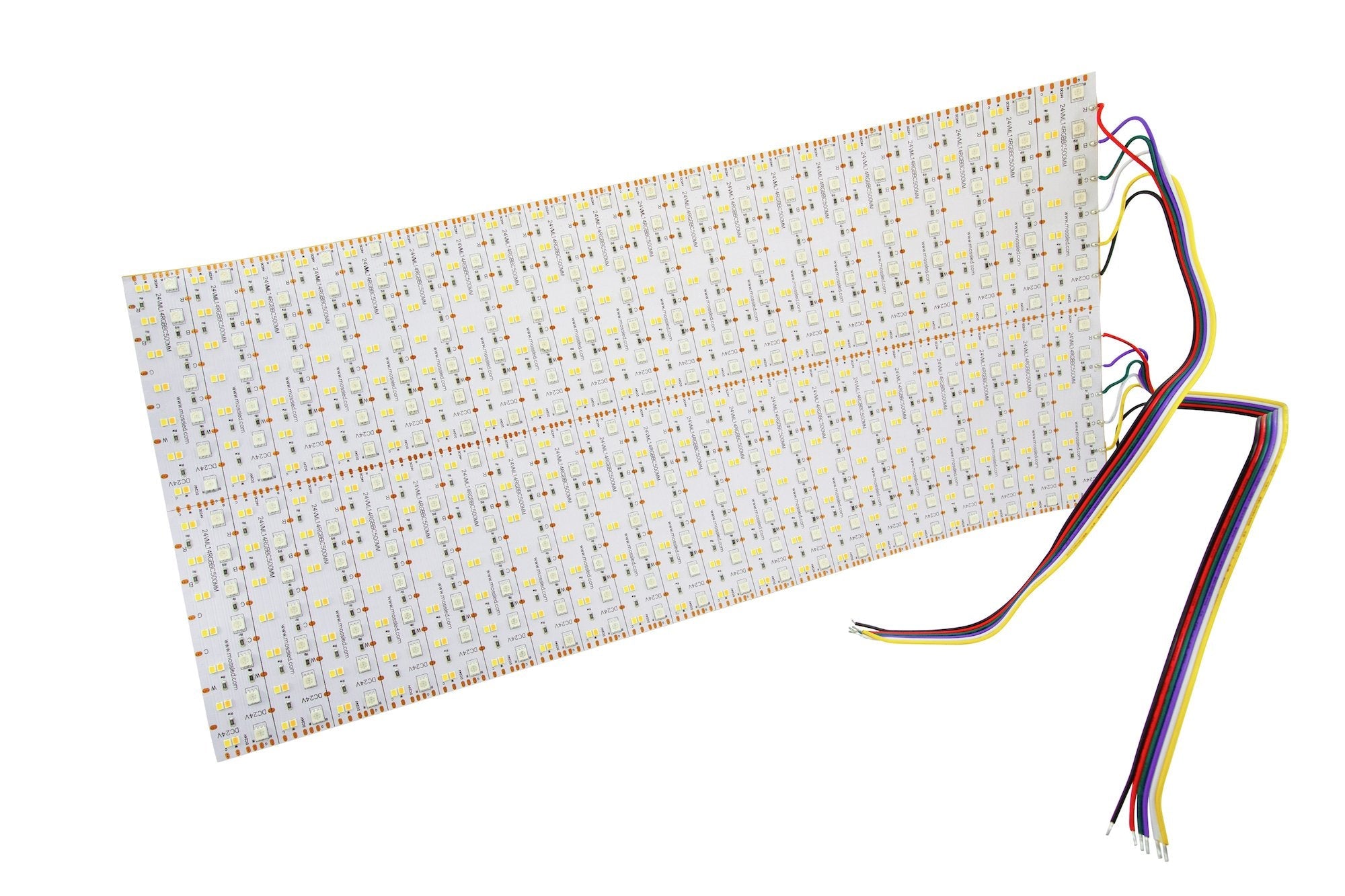

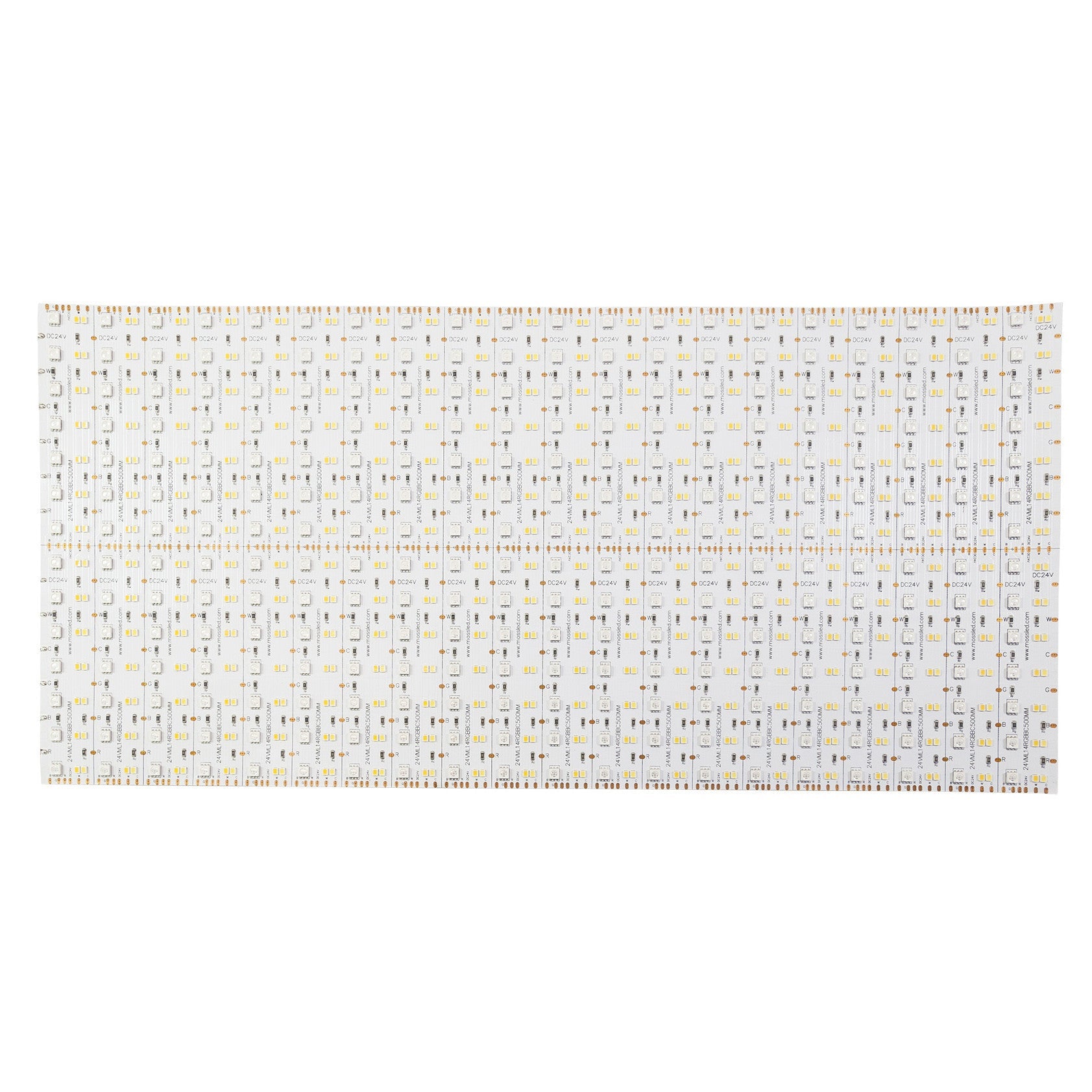

The ML14 Panel FlexLED is a versatile, cuttable, and foldable LED panel, delivering RGB + Bi-Colour (2700K–5600K or 2700K–6000K) illumination for film, television, and architectural applications. Designed for on-camera use and high-quality lighting setups, this ultra-thin, high-output panel ensures smooth colour mixing and precise white light control.
Key Features:
RGB + Bi-Colour Output – Available in 2700K–5600K or 2700K–6000K for customizable lighting.
Cuttable & Foldable Design – Flexible panel adapts to unique installation needs.
High-Quality On-Camera Performance – Accurate colour rendering
Peel-and-Stick Installation – 3M 200MP double-sided adhesive backing for easy mounting.
Custom Sizes Available – Widths and lengths can be tailored for specific applications.
Maximum Run Length – Up to four panels per power run to prevent line loss.
Soldering Guidelines:
Use a soldering iron between 360°C and 372°C.
Limit heating of each solder pad to a maximum of 3 seconds to avoid separation.
Controller, power supply, and extension cables sold separately.
Product Type : ML14 RGB + Colour Temperature Adjustable Panel
Product Code : 24VML14RGBWCWXXYY-500MM / 2 4VML14RGBBC500MM
CRI : 95+
Kelvin : 2700k -> 5600k OR 2700k -> 6000k
PCB Color : White
Current, Rating : 7.16 A / panel
Voltage : 24 VDC
Wattage : 172.8 W / panel
CC / CV : Constant Voltage
IP Rating : IP43
Lumens @ Full : N/A
Lumen / Watt : 67.7
Lifetime* : 30,000 hours
Cutting Size : 120 X 25 MM
LED Quantity : 840 LEDs per panel (280 RGB, 280 @ 2700k, 280 @ 5600k or 6000k)
Number of Contacts : 6
LED Type : 5050 & 2835
Copper Quantity : 3 Oz.
Temperature, Operating, Maximum : 70 C
Temperature, Operating, Minimum : -40 C
Agency Ratings : UL - E489028, CE, RoHS
PCB Size : 240MM X 500MM
Maximum Recommended Length : 4 Panels
Viewing Angle : 120
Adhesion : 200MP 3M
Wavelength A Red : 620 ~ 625nm
Wavelength B Green : 520 ~ 525nm
Wavelength C Blue : 465 ~ 470nm
Wavelength D & E : Full Spectrum 2700k & 5600k Chips
