Description

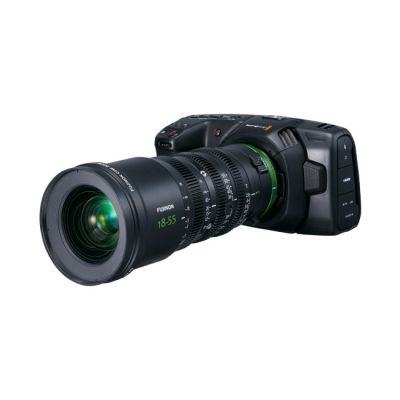

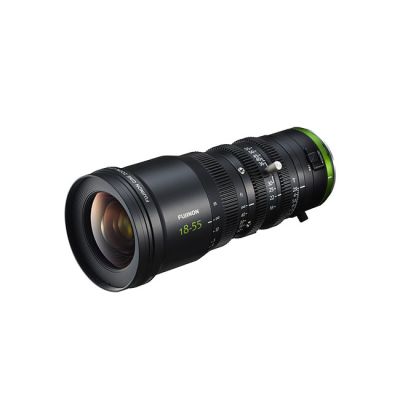

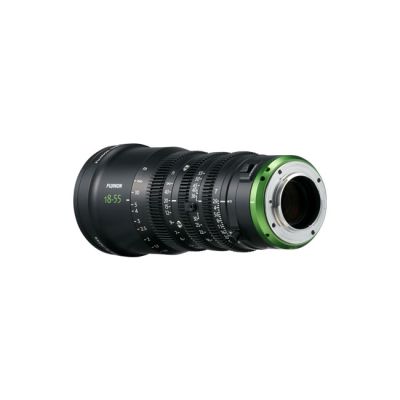

Fujinon Micro 4/3 18-55mm T2.9 CINE Lens
The Dawn of New Era
“FUJINON MK18-55mm T2.9” achieves high optical performance and low distortion with T2.9 speed across the entire zoom range. With MK50-135mm, it covers standard 18 to 135mm focal length for cinema production. Super 35mm / APS-C sensor compatibility and E-mount dedicated design have led to an ultra-compact &“less than 1kg” lightweight body, and excellent cost performance. It suppresses “focus shift and optical axis shift while zooming” and “Lens breathing”. Also, it features three fully manual lens rings for focus, zoom, and iris with 0.8M gear pitch and a 200° focus rotation angle for sophisticated operability.
Features
Outstanding optical performance and low distortion with T2.9 speed across the entire zoom range
Covering the standard 18 to 135mm focal length for cinema production with MK18-55mm and MK50-135mm
Ultra-compact &“less than 1kg” lightweight design thanks to Super 35mm/APS-C sensor compatibility with dedicated E-mount design
Fully manual lens rings for focus, zoom, and iris with 0.8M gear pitch
200° focus rotation angle for accurate focusing
Seamless iris to avoid vibrations and noise that you get with clicking mechanism
Resolves issues of interchangeable lenses for still digital cameras such as “focus shift and optical axis shift while zooming” and “lens breathing”
85mm front diameter, 82mm filter diameter, and position of 0.8M are standardized between the two models
Features macro function
Features flange focal length adjustment function
Specifications
Focal Length: 18-55mm
Zoom Raito: 3.0x
F-No.: F2.75
T-No.: T2.9
Lens Mount: E Mount
M.O.D from Sensor Plane: 0.85m / 2ft 9in (with macro function 0.38m / 1ft 2.9in)
Angular field of view 24.84mm x 13.97mm*1:
18mm : 69.2° x 42.4°
55mm : 25.5° x 14.5°
Focus Rotation: 200°
Zoom Rotation 90°
Iris Rotation: 59°
Iris Blades: 9
Macro function: Yes
Front Diameter: 85mm
Filter Diameter: 82mm
Length (approx.): φ85 x 206mm / 8.11"
Weight（approx.）:980g
*1 Aspect ratio 1:1.78 Gear pitch 0.8mm
