Description

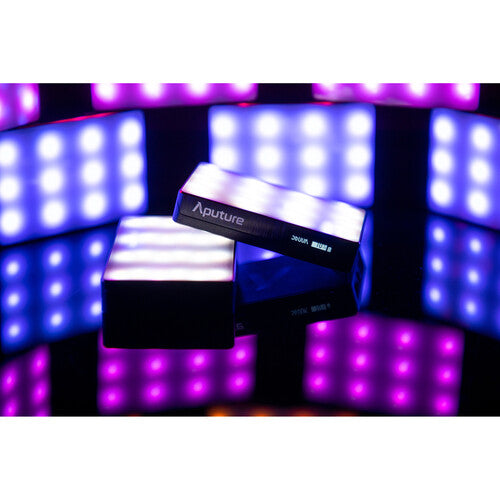

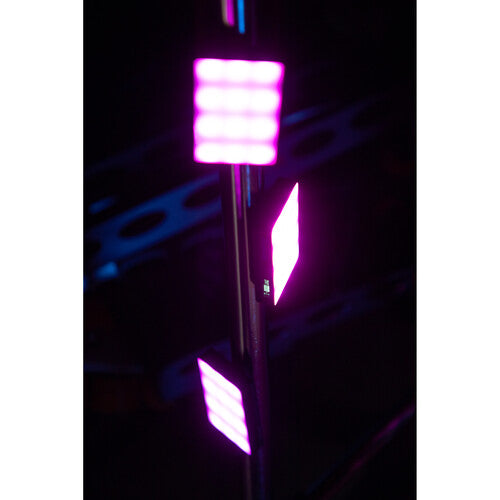

The Aputure MC 12-Light Production Kit includes 12 Aputure MC light fixtures, a wireless charging case, and accessories. The MC light fixtures are part of the Aputure M-series of lights and feature RGB LEDs, as well as both tungsten- and daylight-balanced LEDs, creating a full hue-controllable LED light that emits up to 95% of the BT.2020 color gamut. This lightweight light fixture easily fits in the palm of your hand and can be mounted using the built-in 1/4"-20 threaded mounting hole or attached to metal items via its built-in magnets. The light integrates an OLED display screen and a control wheel. Compatibility with the Aputure Sidus Link app enables you to remotely control your light from your mobile device. The light fixture supports the Sidus Mesh technology that enables you to control multiple fixtures.
The fixture is dimmable from 100 to 0% brightness, has 360° of hue control, and 100 levels of color saturation adjustment. It features a CRI rating of 96 and a TLCI rating of 97, and the MC LED light has a color temperature range of 3200 to 6500K adjustable in 100K increments. In addition to the HSI and CCT settings, the light has nine built-in FX settings. The integrated battery will run the fixture for two hours at maximum brightness. The fixture supports USB Type-C PD (Power Delivery) quick-charging protocol for rapid charging, and it also supports the Qi wireless charging protocol, making it compatible with most wireless chargers.

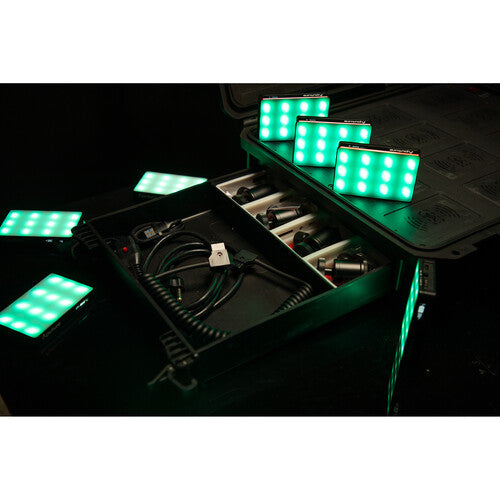

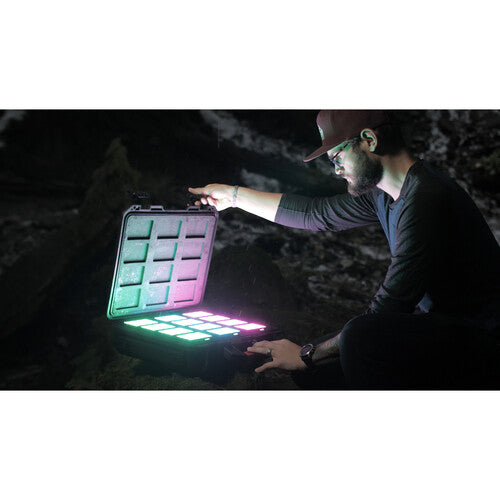

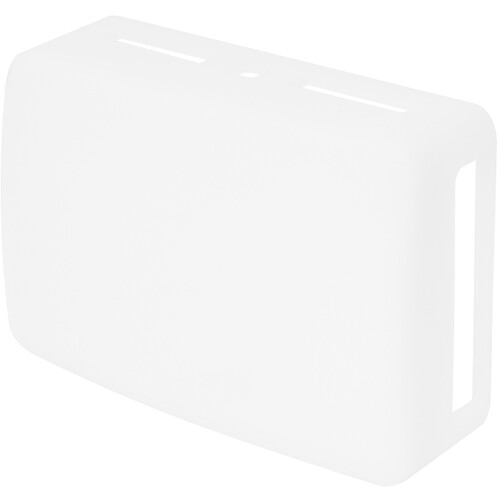

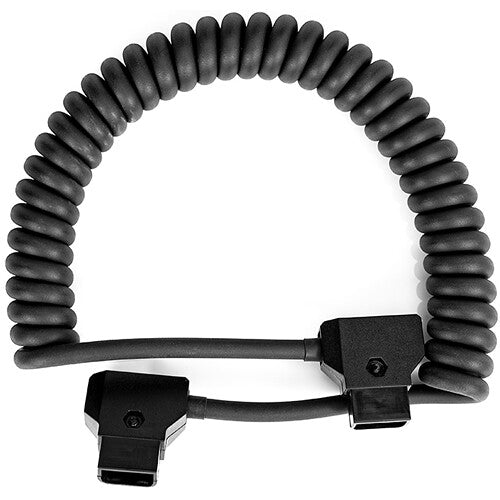

The included hardshell case holds the 12 MC fixtures and can be used to wirelessly charge the lights using the included AC power cable or an optio0nal D-Tap cable. The case also incorporates three 5 VDC USB power ports for charging mobile accessories. This kit comes with four Silicone diffusers and four ball head cold shoe adapters.
Light Fixtures
CCT Lighting Modes
You can select a color temperature from the color range between 3200 to 6500K in increments of 100K.
FX Lighting Modes
In the MC's FX mode, toggle between any of the MC's nine built-in lighting effects presets:
Paparazzi
Fireworks
Faulty bulb
Lightning
TV
Pulsing
Fire
Party
Cop car
Sidus Link Control

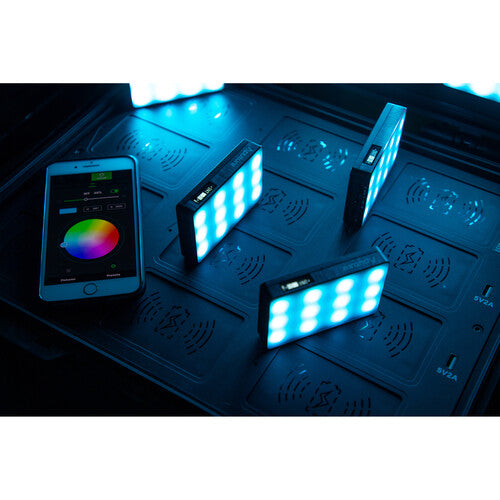

The mobile app for iOS and Android lets you adjust the light's settings to allow for finer control of the HSI, CCT, and FX functions by enabling additional control methods and parameters.
The Color Picker function allows you to point your phone's camera at a color, capture it, and your light will reproduce it instantly.
Sidus Mesh technology allows you to control up to 100 lights in a stable network. Control a single light, or all of them simultaneously, from the Sidus Link mobile app. The Sidus Mesh network can extend up to 1300' with no more than 262' between compatible light fixtures.

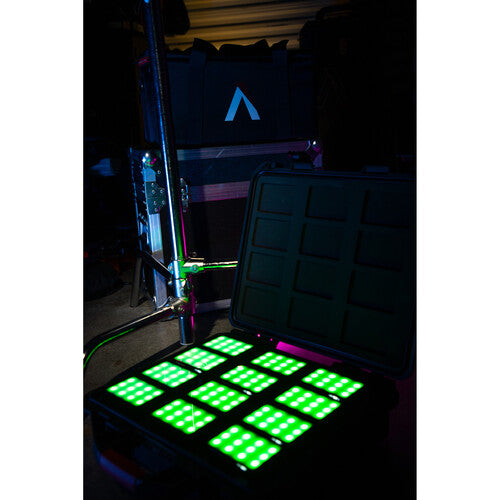

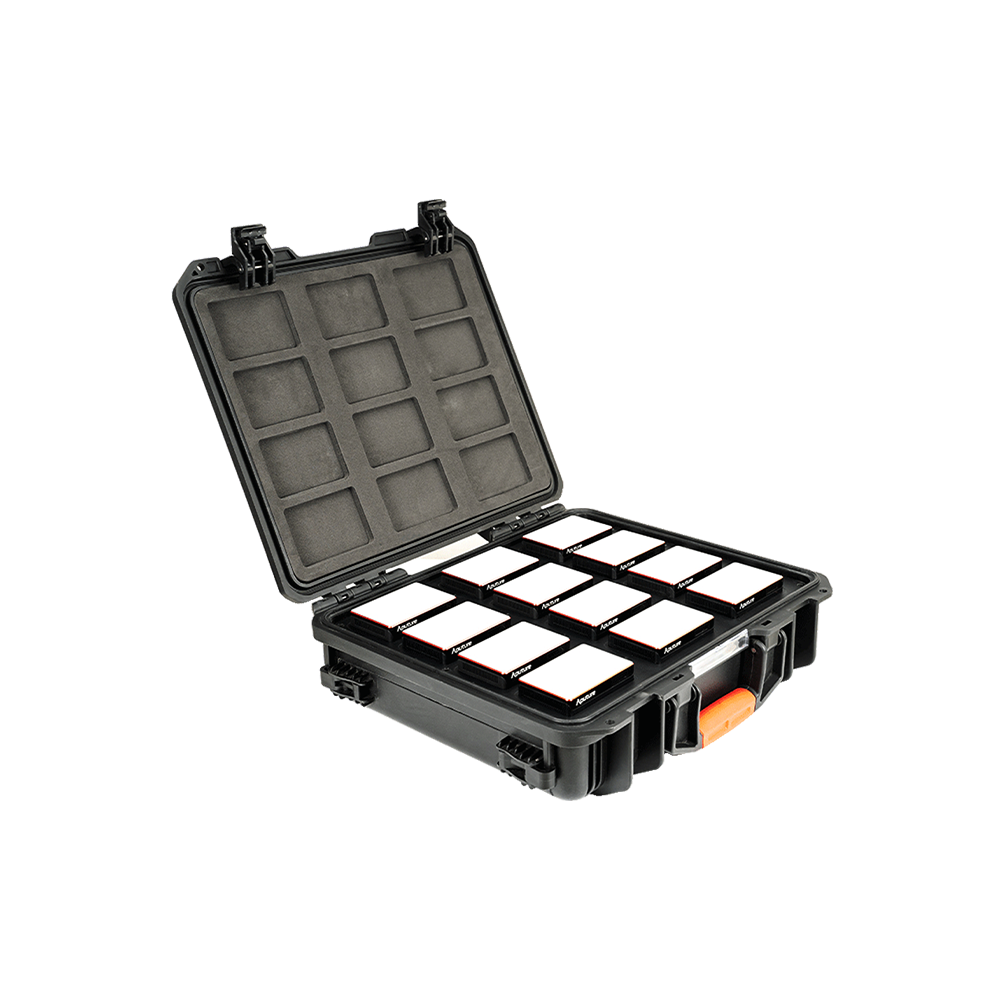

Wireless Charging Case

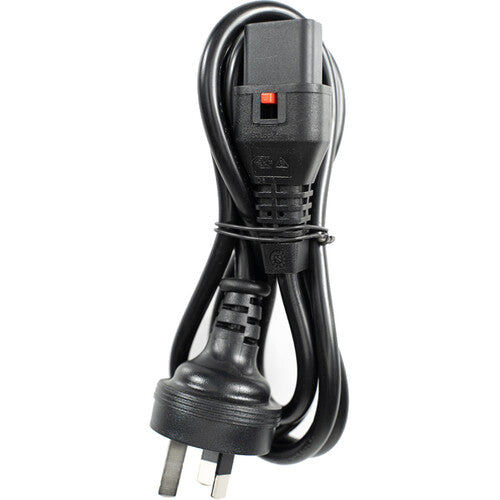

Power input: AC and D-Tap

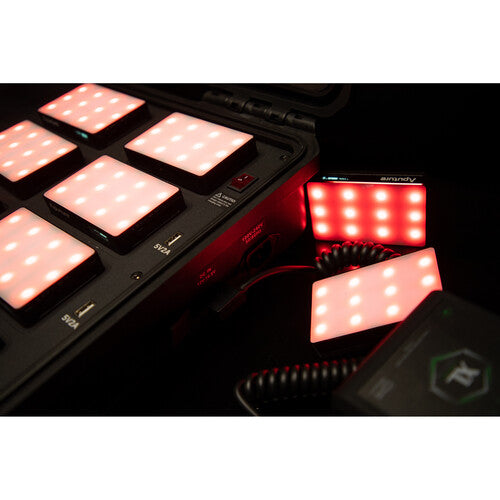

Charging outputs: 12 wireless charging bays, three USB ports

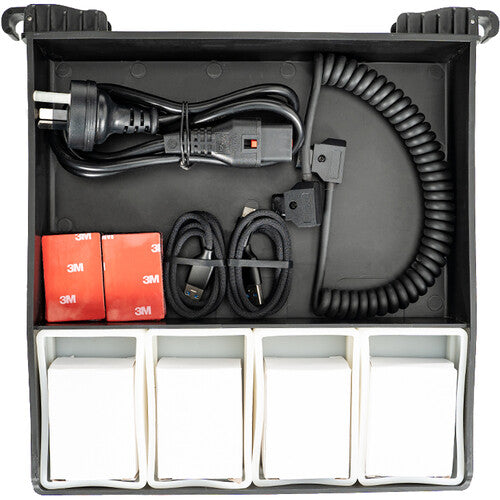

Accessory drawer contents: Four silicone rubber diffusers, four mini cold shoe ball heads
Item Type
12 x LED Light Panel
Included Storage Case
1 x Case (Fits All Included Lights)
1 x Case (Accessories Only)
Photometrics
:9 fc / 100 Lux at 3.3' / 1 m*
102 fc / 1100 Lux at 0.98' / 0.3 m
37 fc / 400 Lux at 1.64' / 0.5 m
*Standardized Measurement Calculated Internally Based on Closest Distance
Show More
Color Temperature
3200 to 6500K
Color Modes
RGB
Color Accuracy Standard
CRI 96
TLCI 97
Dimming
Yes, Built-In Dimmer
0 to 100%
Front Accessory Mount
Proprietary
Wireless Remote Control Type
Bluetooth
Power Source
Battery (Built-In)
Battery
1 x Rechargeable Lithium-Ion Polymer, 3.7 VDC, 2600 mAh (Built-In)
• 2.5- to 15-Hour Runtime
DC Input Power
5 VDC at 2 A
Fixture Mounting
1 x 1/4"-20 Female Thread
Magnetic
Light Fixture
Item Type
12 x LED Light Panel
Included Filters
Diffusion
Included Storage Case
1 x Case (Fits All Included Lights)
1 x Case (Accessories Only)
Photometrics
:9 fc / 100 Lux at 3.3' / 1 m*
102 fc / 1100 Lux at 0.98' / 0.3 m
37 fc / 400 Lux at 1.64' / 0.5 m
*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
3200 to 6500K
Color Modes
RGB
Color Accuracy Standard
CRI 96
TLCI 97
Dimming
Yes, Built-In Dimmer
0 to 100%
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Link
Functionality: Adjust Settings, Remote Control
*As of November, 2019: Check with manufacturer for the most up-to-date compatibility
Power & I/O
Power Source
Battery (Built-In)
Inputs/Outputs
1 x USB-C Power Input
Battery
1 x Rechargeable Lithium-Ion Polymer, 3.7 VDC, 2600 mAh (Built-In)
• 2.5- to 15-Hour Runtime
Battery Charging
Charging Cable (Included)
DC Input Power
5 VDC at 2 A
Included Adapter / Cable

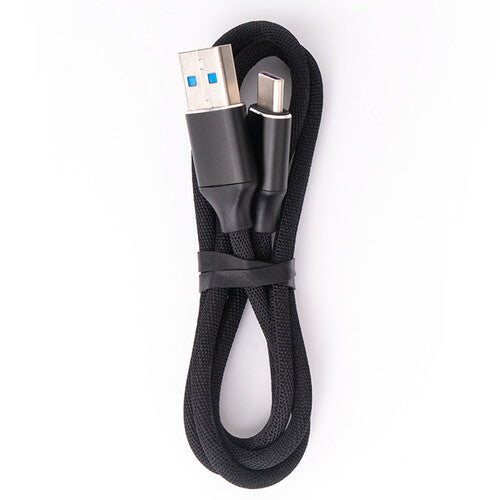

1 x USB-C to USB-A Cable
Mounting
Fixture Mounting
1 x 1/4"-20 Female Thread
Magnetic
Included Adapter

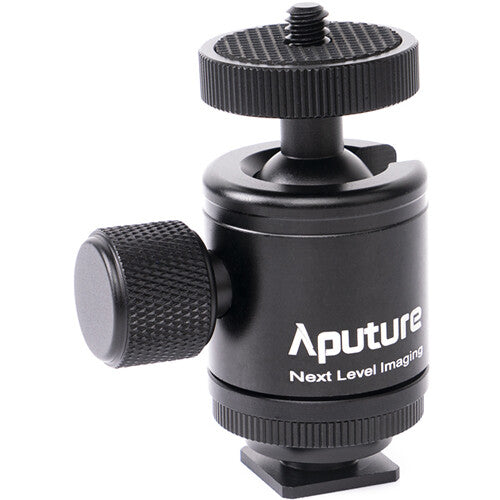

4 x Ball Head Mount: Accessory Foot to 1/4"-20 Male Screw
Environmental
Operating Temperature
32 to 113°F / 0 to 45°C
General
Dimensions
3.7 x 2.4 x 0.7" / 9.3 x 6.1 x 1.7 cm
Weight
0.29 lb / 130 g
