Description
Key Features
Clubs, Mobile DJs, Small/Medium Venues
Compact/Lightweight 350W LED Moving Spot
CMY Color Mixing, CTB Filter, 16-Bit Dim
8-Slot Color Wheel, Split/Scroll
2 Gobo Wheels (Static/Rotating)
4.1 to 43.4° Motorized Zoom
Iris, 5-Facet Prism, Frost
DMX, W-DMX, sACN, and Art-Net Control
3-Pin and 5-Pin DMX I/O, RJ45 Connectors

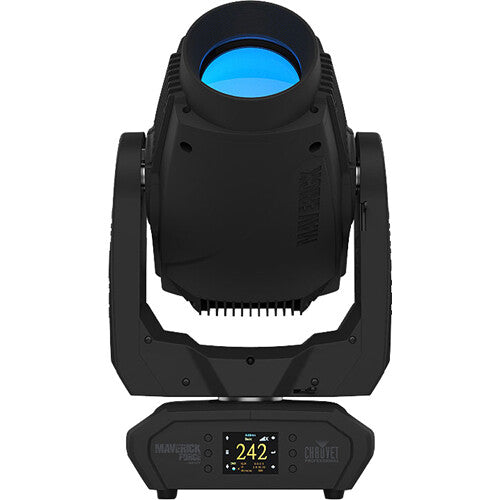

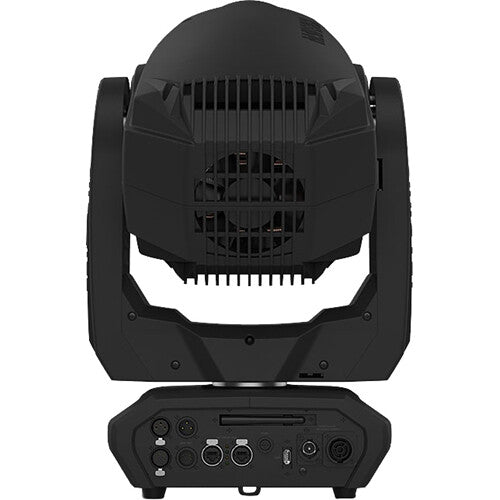

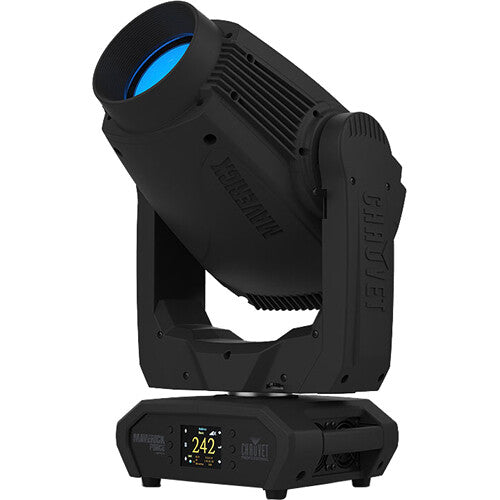

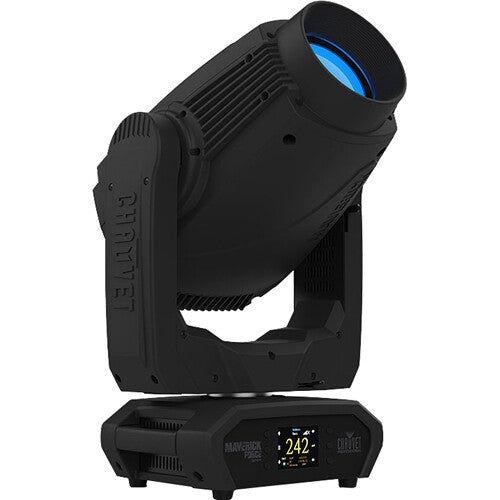

Lighting designers looking for a compact road-ready moving head fixture will be impressed with the CHAUVET PROFESSIONAL Maverick Force S Spot, a feature-rich moving head spot that's ideal for installs and mobile DJ rigs in small-to-medium-sized clubs, theaters, houses of worship, touring stages, and event spaces. The Maverick Force S Spot is powered by a bright, 350W, cool-white LED with an 8-slot color wheel, two rotating gobos, as well as motorized focus, 5-facet motorized/rotating prism, motorized frost, and motorized iris effects. Additionally, custom gobos created in collaboration with leading designers (available separately) can be stacked on top of one another for creative effects.
The Maverick Force S Spot can be controlled via DMX, W-DMX, sACN, and Art-Net protocols. It also converts TCP/IP to DMX for shorter data cable runs and offers RDM control over DMX for remote addressing and troubleshooting. The touchscreen LCD display and six buttons let you easily navigate the menu structure by either pressing the buttons or touching the display directly. The universal, autosensing power supply and pass-through I/O allow you to connect a single power cable to the wall and daisy-chain up to 2 units at 120V or up to 5 units at 240V. The Maverick Force S Profile ships with two Omega brackets with mounting hardware and a Seetronic Powerkon IP65 power cord.
At a Glance
Fully featured, compact and lightweight 350 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static
16-bit dimming of master dimmer for smooth control of fades
Variable CMY color mixing system to create a wide pallet of colors
DMX, WDMX, sACN, and Art-Net for full flexibility of control options
RDM Enabled for remote addressing and trouble shooting
3.8° to 43.4° zoom range for variable beam sizes
Iris, 5-facet prism, and frost for beam control
True 1 compatible power input
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation
Optical
Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
Color Temperature (at full): 6858 K
CRI: 68.6
CRI with CRI filter: 89.6
Front Lens Diameter: 119 mm
Beam Angle: 3.8° to 36.5°
Field Angle: 4.8° to 40.4°
Cutoff Angle: 5.1° to 43.4°
Zoom Range: 3.8° to 43.4°
Lumens - Source: 20,000
Lumens – Output: 14,407
Illuminance (3.8°): 62,004 lux @ 5 m
Illuminance (43.1°): 1,745 lux @ 5 m
Selectable PWM: 600, 1200, 4000, 6000, 15000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
Colors: CMY Wheels
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4
Includes: IP-PowerKON Power Cord, 2pc Omega Brackets Control: 5-pin DMX, ArtNet, sACN, WDMX, RDM
