Description
in-lite LUNA Stainless Steel 60mm - 12V/21V - 5.0 VA - Ring 68 SS - 99130020 from in-lite built for clean, modern outdoor lighting systems.

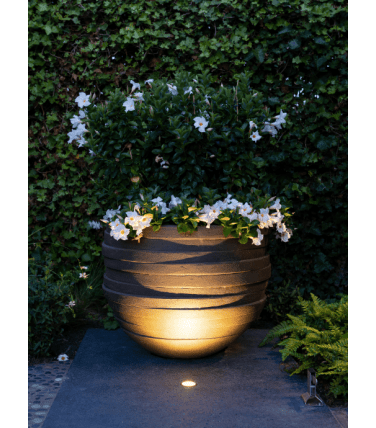

LUNA stands for "Light Under 'N Angle. With its diagonal beam of light, the LUNA ground light is perfect for illuminating outdoor elements like fences, hedges, walls and espaliers. The wide beam of light evenly illuminates the yard element and creates a grand effect. Available in three different colors: Black, Pearl Grey and Stainless Steel.
- Produces a wide, focused light at an angle
- Suitable for lighting hedges, walls and other large elements in the garden
- Drive-over
Installation advice:
Every 2 to 2.5 meters a LUNA. Use an extension cable to keep EASY-LOCK nicely tucked away.

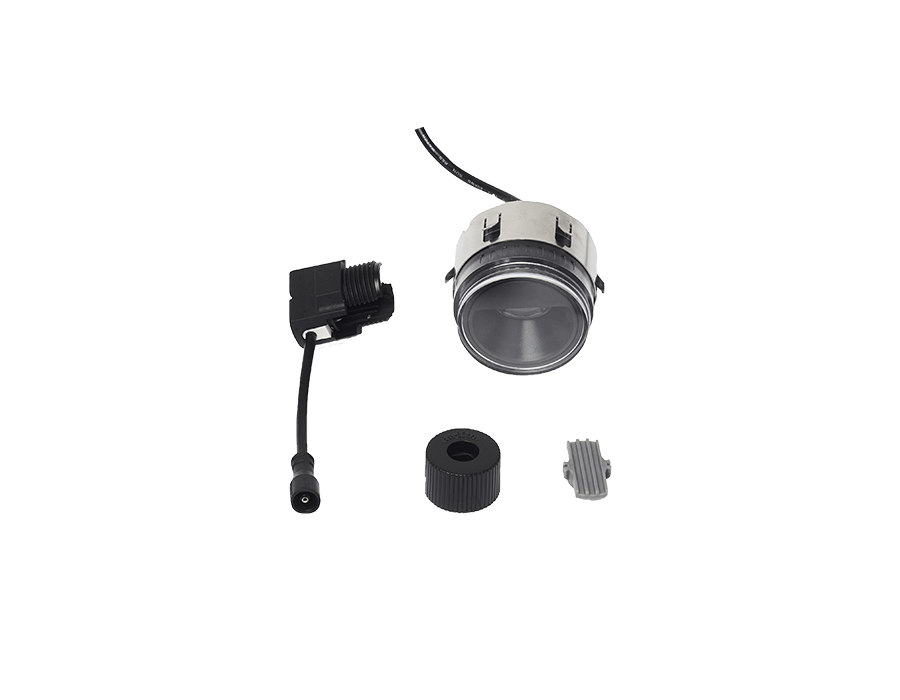

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 1x RING 68 Stainless Steel
Product Details
Ground spot LUNA with its angled beam is ideal for illuminating garden elements such as fences, hedges, walls and espaliers. The wide beam evenly illuminates the garden element and quickly creates a grand effect. Available in three different colors: Black, Pearl Grey and Stainless Steel.
LUNA is perfect to combine with accessory SPIKE. With this ground stake you can easily place LUNA in a loose surface such as earth, gravel or grass.
LUNA is not suitable for mounting in accessory BOX 100.
LUNA is perfect to combine with accessory SPIKE. With this ground stake you can easily place LUNA in a loose surface such as earth, gravel or grass.
LUNA is not suitable for mounting in accessory BOX 100.

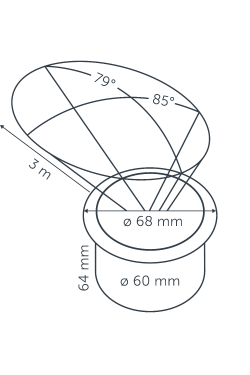

Specs
Art. nr.
99130020
Mounting depth (inch)
2.7559
Recessed depth (mm)
70
Diameter (inch)
2.6772
Diameter (mm)
68
Color
StainlessSteel
Energy label
G
Height (inch)
2.5197
Height (mm)
64
Efficiency (Lumen/Watt)
73
Net luminous flux (Lumen)
220
Power [W]
3
Article group
Recessed lights
Voltage
12 volt, 21V
VA value
5
Color temperature
3100
Material finishing/coating
StainlessSteel
Kilowatt hour
3
Luminous intensity [Cd]
119.6
Power factor
0.6
Installation instructions
You install this ground spotlight in a hole in wood (using a wood drill) or stone (using a cooled diamond drill) with a diameter of 60,8 mm. An in-lite dealer or landscaper can take care of this. Please note, only install the fixture in a straight drilled hole in the correct size, to ensure that the spotlight is clamped properly without damaging the housing of the ground spotlight.
The LUNA is equipped with a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, a hammer is not needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the LUNA and is not available separately.
If you want to work LUNA into a loose surface such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place LUNA in SPIKE and prick it into the ground.
The LUNA is equipped with a stainless steel cup. The cup is a stainless steel ring with spring-loaded tabs making it easy to mount the spotlight tension-free. The cup is pushed into the hole, a hammer is not needed. Because of the springy tabs, the spot is always properly clamped. Also, the spot is now easy to remove without damage. The cup comes standard with the LUNA and is not available separately.
If you want to work LUNA into a loose surface such as earth, gravel or grass, this is possible in combination with accessory SPIKE. Place LUNA in SPIKE and prick it into the ground.
