DIN rail mountable for fixed install

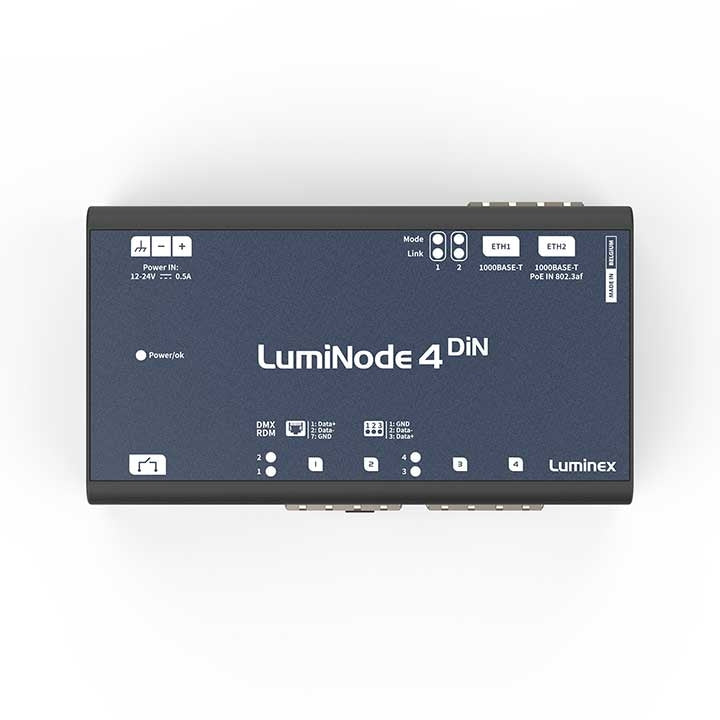

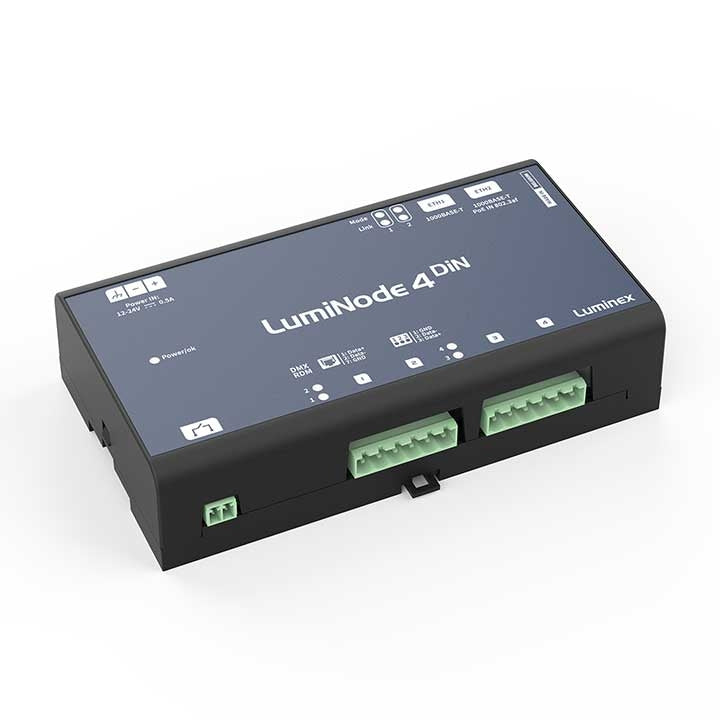

LumiNode 4 DIN is specifically designed for fixed installations to fit on a standard DIN rail. The compact design and standardized mounting bracket are ideal for Architainment applications and installation projects. For full flexibility, the unit comes either with DMX/RDM RJ45 connectors or Terminal Blocks.
The unit can be powered over PoE or DC voltage. The second 1Gb RJ45 Ethernet port can be used to connect any other application or the next LumiNode 4 DIN (DC powered).
Each DMX/RDM port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry-standard protocols such as Art-Net, sACN, KiNET, and RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch, and Custom merging modes with soft patch functionality.
