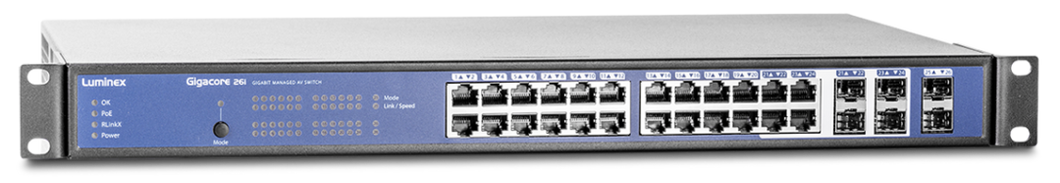

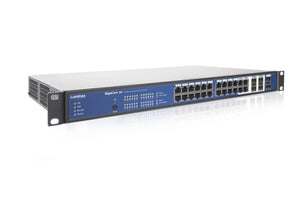

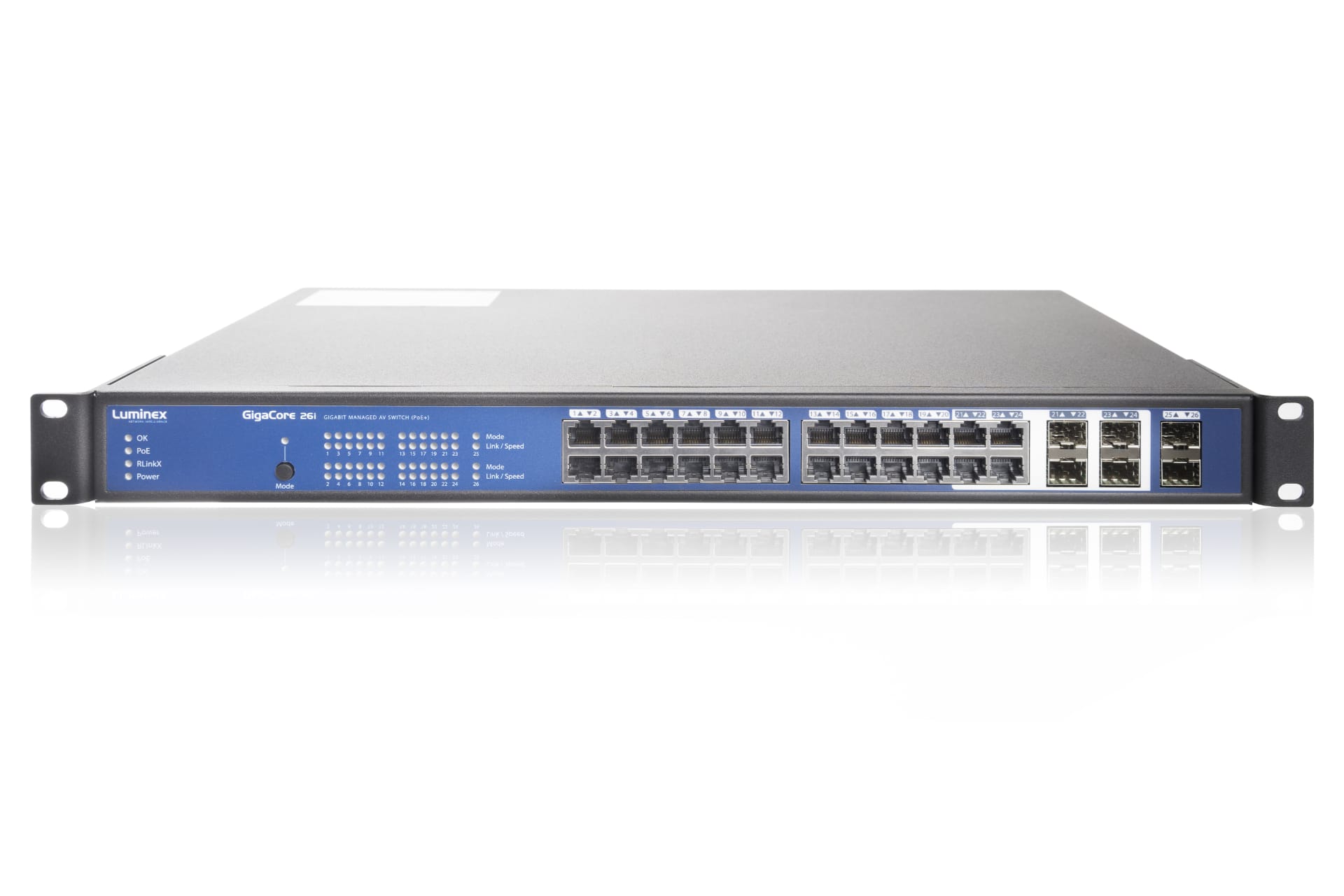

Luminex GigaCore 26i Rev A

Regular price
Sale price

Most suitable applications: Fixed installations
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes
Profile manager: Yes
Memory: 4Mb
MAC address table: 8192 Entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 52Gbps
Jumbo frames: MTU up to 9600
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex) Power connectivity:

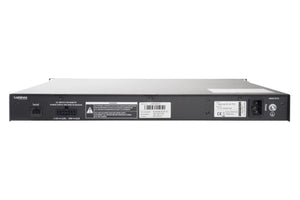

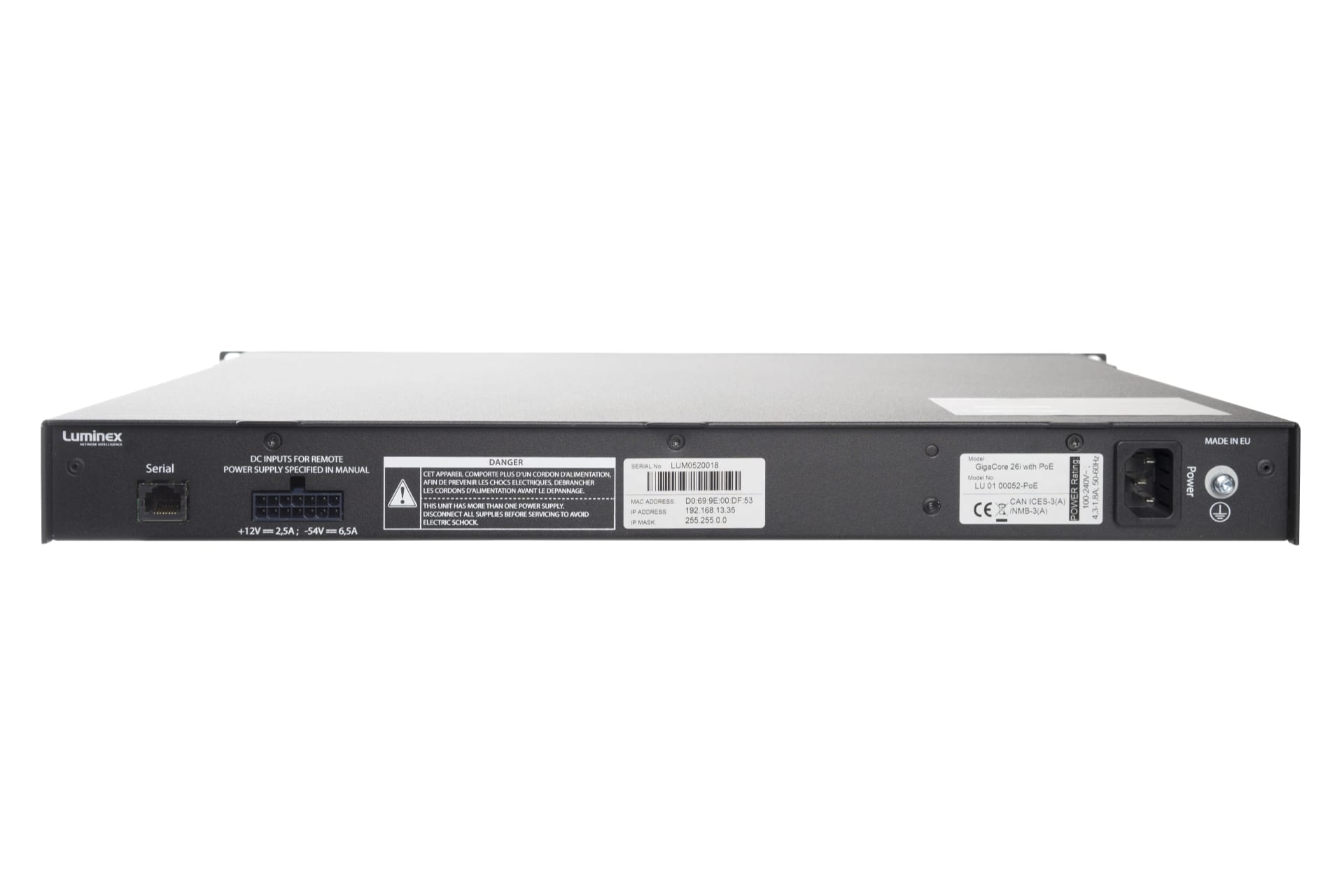

1 x IEC (14C) inlet
1 x redundant power input on Molex Mini-Fit Junior 14 pin connector
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 30W Maximum 430W with PoE
Fuse: None
Backup power input: 12VDC / 2,5A
Backup PoE power input: -54VDC / 6,5A
PoE: Optional (up to 370W - up to 330W for Rev A) Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 270,3 x 44 mm (19" x 10,6" x 1,73")
Weight: 4 kg
Packaging: 545 x 420 x 80 mm (21,5" x 16,5" x 3,15")
Operating temperature: 0 to +50 °C (non-PoE version), 0 to +40 °C (PoE version)
Storage temperature: -10 to +70 °C
Humidity (non condensing): 5 to 95% RH
Noise level @1m:
Max 22dBA (Ambient: 0 – 30°C)
Max 33dBA (Ambient: 30 – 50°C)
Max 22dBA (PoE <150W, Ambient: 0 – 30°C)
Max 33dBA (PoE <150W, Ambient: 30 – 40°C)
Max 33dBA (PoE >250W, Ambient: 0 – 30°C)
Max 37dBA (PoE >250W, Ambient: 30 – 40°C)
Certificates/Approvals: cSGSus Mark, CE, CB certificate, RoHS
Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024
