Description
Key Specs
Networking I/O
10 Total Connections Supporting up to Gigabit Ethernet
Stackable
Yes
Switching Bandwidth
20 Gb/s
Networking I/O
Each Unit:

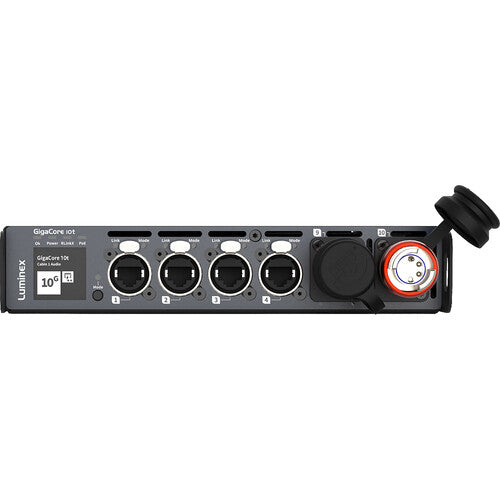

8x RJ45 Gigabit Ethernet (Link Aggregation)
2x LC Neutrik FIBERFOX 2CH Multi-Mode
Stackable
Yes
Protocols
Supported Protocols
Auto-MDIX/MDI
IGMP Snooping
Link Aggregation
MAC Filtering
Port Mirroring
Jumbo Frames Support
12,000 Bytes
MAC Address Table Size
16384K
Performance
Switching Bandwidth
20 Gb/s
Computer
Flash Memory
4 GB
Memory
1 GB
Electrical
Power Draw
40.00 W (Max)

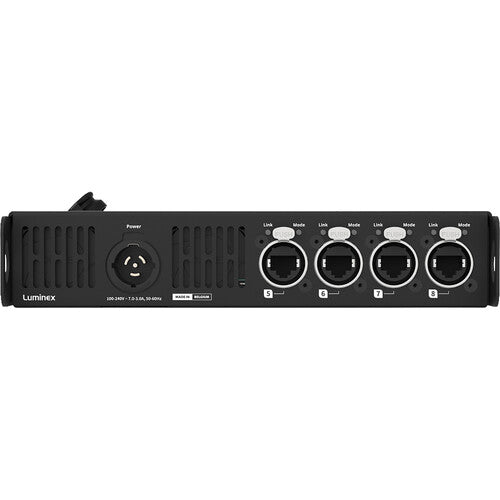

Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
General
Certifications
CB Certificate, CE Mark, RoHS, UKCA Mark, UL cSGSus Mark
Operating Conditions
32 to 122°F / 0 to 50°C up to 95% Humidity
Storage Conditions
32 to 158°F / 0 to 70°C
Cooling System
Fan
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
Yes 1 U
Dimensions
13 x 8.7 x 1.7" / 330 x 220 x 44 mm
Weight
7.5 lb / 3.4 kg
