Description
Key Features
8 x EtherCON Gigabit Ethernet Ports
8 x PoE-Compliant Ports
20 Gb/s Switching Capacity
1GB RAM
Rack-Mountable Design
Araneo System Management
RLinkX Redundancy
Fully AV Validated
PowerCON Power Connectivity

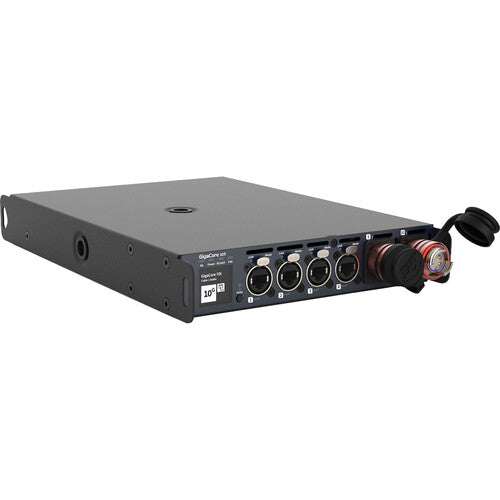

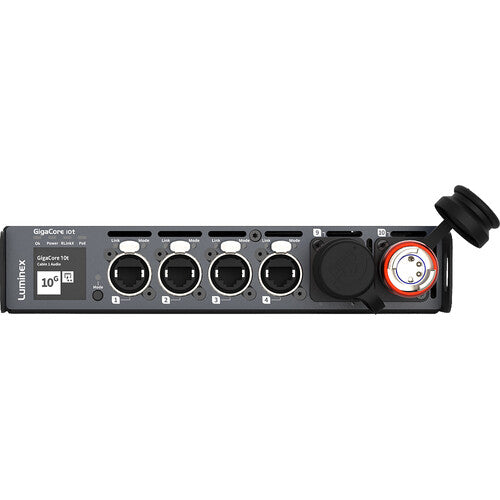

Connect your digital consoles, stage boxes, lighting consoles, and more with the GigaCore 10t Gigabit PoE++ Switch from Luminex. This fully AV-validated switch has eight 1 Gb/s PoE++ ports with EtherCON Neutrik connectors and is ideal for touring, theaters, or even houses of worship. Designed for demanding workloads, the 20 Gb/s switching capacity is further complimented by its 1 GB of RAM, which provides plenty of headroom for simultaneous transfers of high-channel audio counts, DMX data, and video streams.

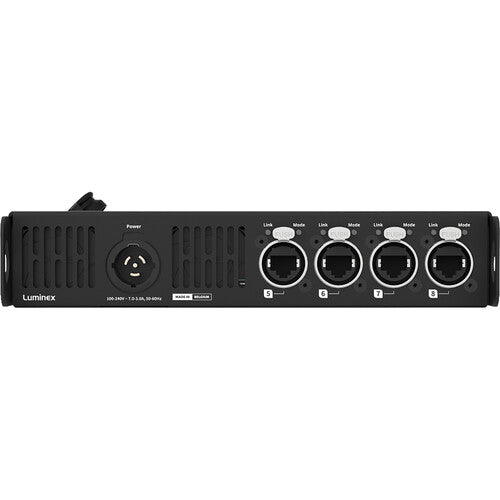

With a focus on flexibility, the 10t is managed by the Araneo system management software, which allows users to direct web traffic and even leverage the redundant RLinkX capacities of the 10t line of switches. The single, half-rack design allows you to rack two units next to each other for easy setup, and the PowerCON TRUE1 Neutrik power connector gives you greater options for placement.
Araneo Management Software
Found on all GigaCore switches, the Araneo software can manage multiple switches on the network. Data streams and topology are visualized as are the port status of every GigaCore and has two modes (online/offline) for setup and operation. Online mode shows everything you need to know about the status of your GigaCore network. Offline mode lets you plan the complete network topology and GigaCore settings in advance.
Intuitive Web UI
Since every show or event can vary greatly, the built-in web UI allows you to adjust the settings in a way that best suits your needs. Assigning groups (VLANs) to ports, creating trunks, or adjusting other port and PoE settings can be done on the fly, and the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.
Supported Protocols
Avnu AVB/Milan (Free of license)
Dante
RAVENNA/AES67
Ethersound
Q-SYS/Q-LAN
IPMX
sACN
ArtNet
MANet
HogNet
RTTrPL (BlackTrax)
*IEEE 1588-2008 low jitter and hardware timestamping audio protocol compliance.
Silent Design
The flexibility of the 10t is further complimented by its silent design. Fans are speed-controlled to have minimal noise impact, which allows you to place the GigaCore in quiet environments like theaters and studios.
