Description

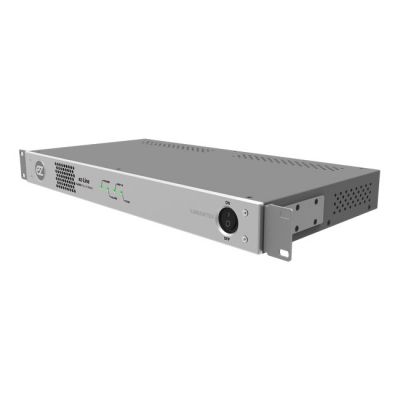

Lumantek VM16 ez-Line 16x16 Router
ez-Line (HD-SDI 16 x 16 Router) supports the standard HD-SDI signal and can configure HD broadcast signal input/output. Through this unit user can send sharp and clear signals. In addition to this, user can utilize this device function and use variety purposes such as splitter and selector.
Input
SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x16
Reference Input: B.B , TRI (BNC 75Ω ) x1
Output
HD-SDI: SD/HD/3G-SDI (BNC 75Ω) x16Connections
Remote Control: RS-422 (RJ45)x1
Ethernet: Ethernet Support (RJ45)x1
Update: Debug (Micro-USB)x1
Electrical
Power Input: 100~240VAC @ 50/60Hz
Power Consumption: 18W(max.)
Operation Temperature: 0~40℃
Physical
Dimension: 44(H) X 483(W) X 240(D)
Weight: 2.0 kg
