Lumantek Mini Converter BAT Series - SDI 6* Distributor

Lumantek Mini Converter BAT Series - SDI 6* Distributor

LUM-BAT-SD
Regular price
$259.00
Sale price
$259.00

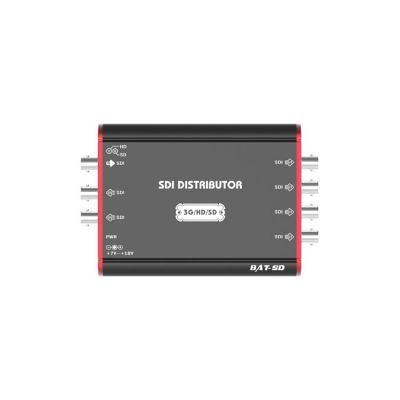

Lumantek Mini Converter BAT Series - SDI 6* Distributor





































































































































































Input Electrical Specifications




Parameter



Min.



Max.



Units



Typ.



SDI Input Cable Lengths



SD-SDI (Belden 1694A)



250







m











HD-SDI (Belden 1694A)



170







m











3G-SDI (Belden 1694A)



155







m







RF Input



Connector (1 Port)



75ohm, 1 x BNC type female



Display



Input SDI Detect



SD(Green), HD/3G(Yellow)




Output Electrical Specifications




Parameter



Min.



Max.



Units



Typ.



Rise/Fall time



SD-SDI : rise/fall time(20-80%)











ps



600







HD-SDI : rise/fall time(20-80%)











ps



100







3G-SDI : rise/fall time(20-80%)











ps



100



Peck to Peck Voltage Swing



SD/ HD/ 3G-SDI



720



880



mVpp



800



Overshoot/Undershoot



SD/ HD/ 3G-SDI



-10



+10



%







RF Input



Connector (1 Port)



75ohm, 1 x BNC type female




Output Electrical Specifications




Parameter



Min.



Max.



Units



Typ.



DC Input power



7



18



V







Lowest Power Consumption







2



W







Dimensions



131 x 99 x 28.4 (except connector) mm



Weight



370 g
