Description

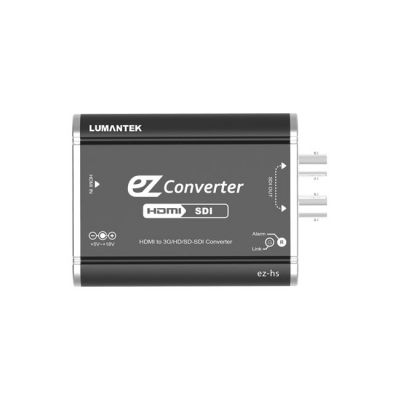

Lumantek HDMI to 3G/HD/SD-SDI Converter
Parameter
Units
Min.
Type.
Max.
Video Formats
- 720x480i@59.94/60
- 720x576i @ 50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@23.94/24/25/29.97/30
- 1920x1080p@50/59.94/60
Audio Sample Rate
- 48KHz
HDMI Input
Connector (1 Port)
-
Type A
Output Electrical Specifications
Includes power supply
Video Formtas
- 720x480i@59.94/60
- 720x576i @ 50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@23.94/24/25/29.97/30
- 1920x1080p@50/59.94/60
Audio Sample Rate
- 48KHz
SDI Output
Connector (2 Port)
-
75ohm, 2 x BNC type female
General Specifications
Parameter
Units
Min.
Type.
Max.
Operating temperature
℃
0
50
Relative humidity
%
0
90
DC Input power
V
5
18
Lowest Power Consumption
W
2.04
Dimensions
mm
86.4x66.8x28.4 (include connector)
Weight
g
159
