Description

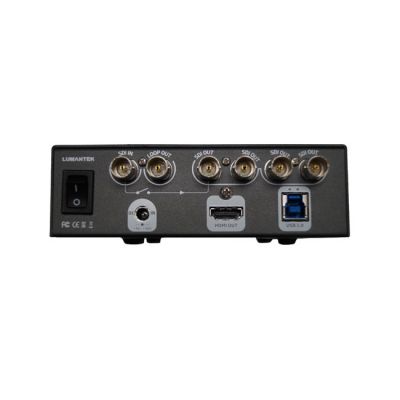

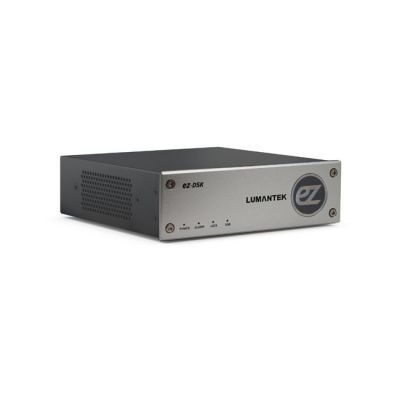

Lumantek DSK Live CG Generator (USB 3-Type Overlay)
Note: This product is Windows only.
Taking the world of C.G. Graphics on your content to the next level, the NEW ez-DSK from Lumantek proves you can get the power without sacrificing on price point! The ez-DSK allows easy application of computer graphics like subtitles, images, sequences, videos and widgets into your outgoing video source. Featuring overlay technology that does not take extra video ports like convectional Fill/Key generators allowing zero delay transmission, the ez-DSK cuts down on bulk of setup and redundancy. It comes equipped with fail-safe trigger mechanism to prevent any disruption if any malfunction of the device happens. All outgoing ports re-clock the video source for better quality video. Ez-DSK distributes the outgoing source into 4SDI and 1 HDMI, so it works as a distributor and a converter at the same time.
Data Input
SDI Input: (BNC 75Ω) x1
SD: 480i59/ 576i50
HD: 1080p30 / 1080p29 / 1080p25 / 1080p24 / 1080p23 / 1080i60 / 1080i59 / 1080i50 / 720p60 / 720p59 / 720p50
FullHD: 1080p60/1080p59/1080p50
CG Input: (USB3.0)x1
HD: 1080p30/1080p29/1080p25 / 1080i60/1080i59/1080i50/720p60/720p59/720p50
Data Output
SDI Output: (BNC 75Ω)x4
SD: 480i59 / 576i50
HD: 1080p30 / 1080p29 / 1080p25 / 1080p24 / 1080p23 / 1080i60 / 1080i59 / 1080i50 / 720p60 / 720p59 / 720p50
FullHD: 1080p60/1080p59/1080p50
SDI Loop Output: (BNC 75Ω) x1
Same input resolution
Overlay feature is not supported
HDMI Output: (BNC 75Ω)x1
SD: 480i59 / 756i50
HD: 1080p30/1080p29/1080p25 / 1080p24 / 1080p23 / 1080i60/1080i59/1080i50/720p60/720p59/720p50
Full HD: 1080p60 / 1080p59 / 1080p50
