Description

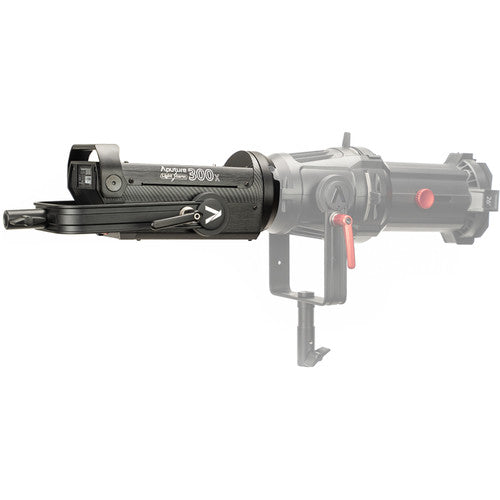

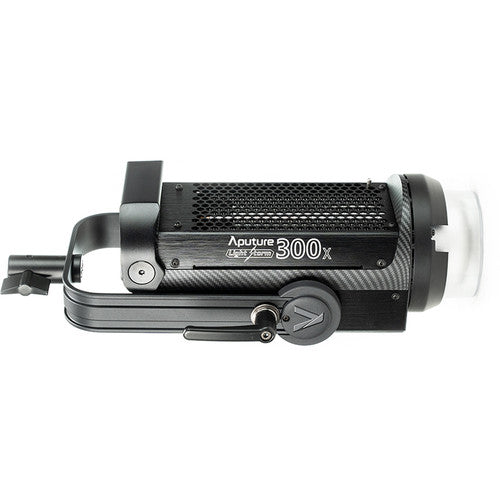

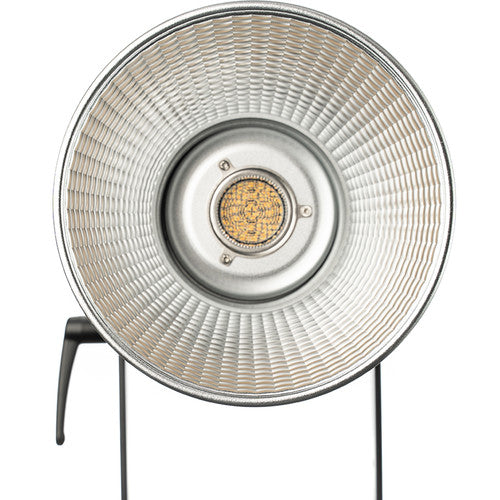

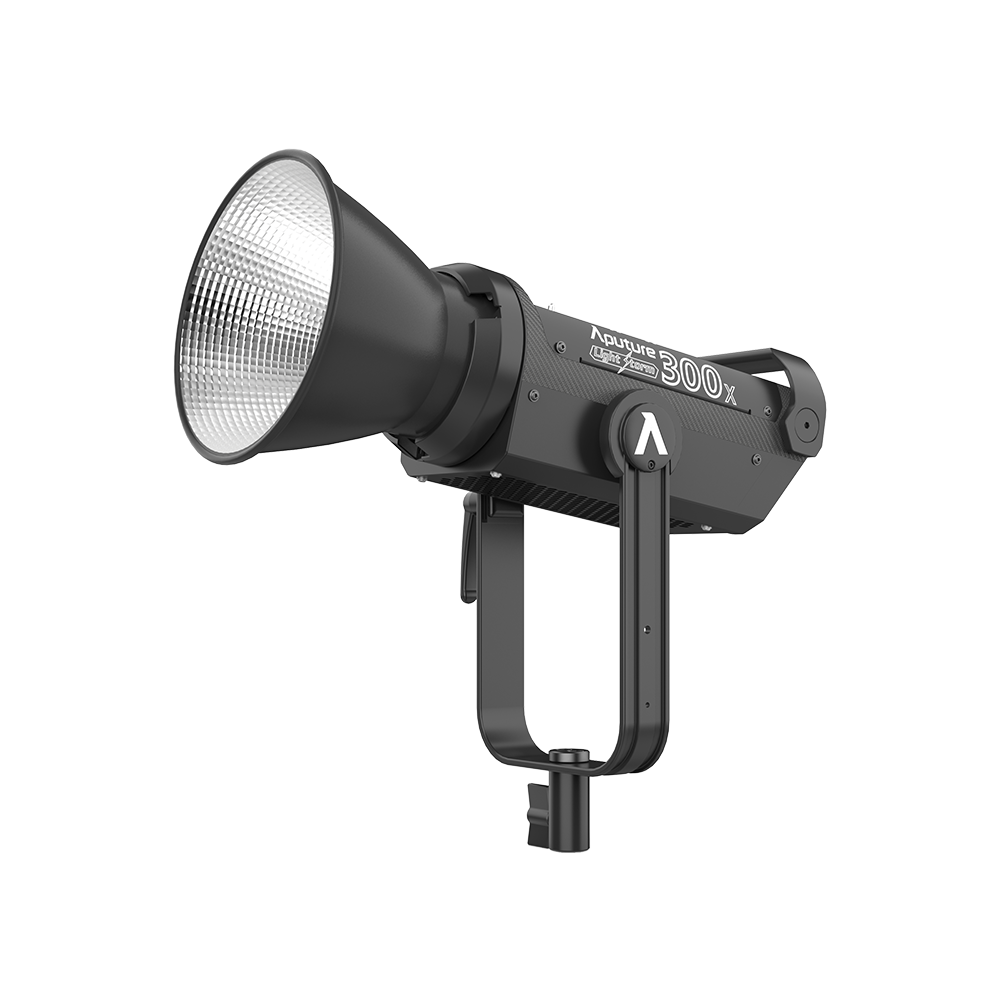

The LS 300x Bi-Color LED Monolight from Aputure is the first Aputure light to go beyond traditional bi-color lighting by utilizing the expanded vari-white CCT range of 2700-6500K, providing warmer tungsten tones and cooler than daylight whites. The brilliant light can be dimmed from a potent main light to a subtle, nuanced fill light, flicker free across the dimming range. It emits up to 20,500 lux at 3.3' with its included 55° Hyper Reflector. The Controller Box attached to the LS 300x head with a 9.8' head extension cable, so adjusting settings is effortless regardless of where the light is set. The self-regulating, multi-voltage controller also operates using single or dual Gold mount batteries, suitable for lighting in remote locations.
Robust Bi-Color Performance
Combining the latest optical color-blending technology with Aputure's dual-color LED chipset provides an unprecedented flexibility from a single LED fixture. A specially-designed color-blending optical element in front of the chipset combines the LED output into a single cohesive point light source. The highly-efficient light output renders at CRI 96, TLCI 96, plus higher than industry standard SS1 85, and D55-SSI 74 ratings. This level of efficiency means colors and skin tones will be reproduced with an extremely-high degree of accuracy.
Local Control, DMX, 2.4 GHz Wireless, and Bluetooth Remote Control Options

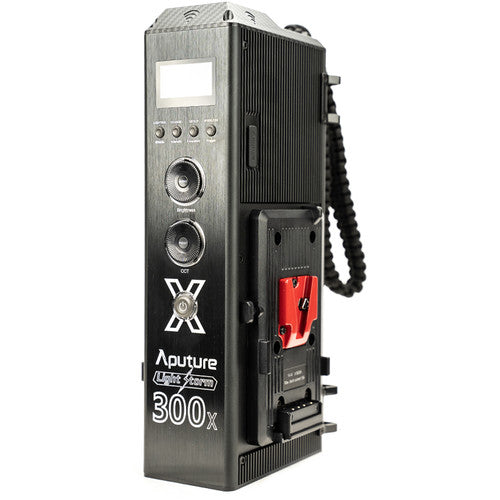

Intuitive local controls and a bright LCD display on the Controller Box allow precise and repeatable setups locally. In addition, the output may be controlled using the included 2.4 GHz wireless remote, or the light may be integrated into a DMX network via the 5-pin XLR in/out ports. Also, thanks to Aputure's integrated Sidus Mesh network chipset, all the 300x's functions may be controlled by the Sidus Link app, free to download for iOS and Android portable devices. The app also allows saving presets, adjusting/triggering lighting effects, luminance, and CCT, as well as installation of firmware updates, all from your smartphone or tablet.
Dual Output Modes
Constant Output Mode allows precision CCT adjustment while maintaining constant luminance, and even shift color temperature seamlessly during a scene. Max Output Mode will maximize CCT and dimming levels within the 4000-5500K range.

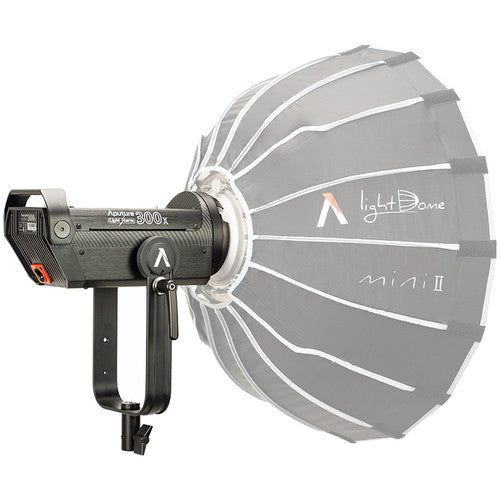

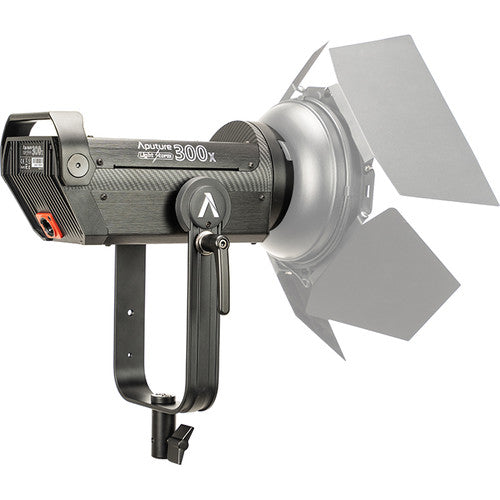

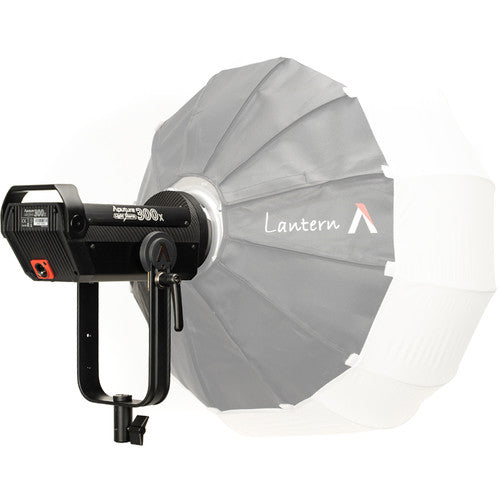

Bowens S-Mount Versatility
The integrated Bowens-S mount allows using an almost limitless number of available modifiers to narrow, diffuse, or otherwise sculpt the light to suit any application or creative vision.
Four Available Dimming Modes
Linear
Exponential
Logarithmic
S-Curve
5 Available Common CCT Presets
2700K
3200K
4200K
5500K
6500K
Nine Customizable Built-In Lighting Effects
Paparazzi
Fireworks
Lightning
Faulty Bulb
TV
Pulsing
Strobe
Explosion
Fire
Item Type
1 x LED Monolight
Included Light Modifier
1 x Reflector

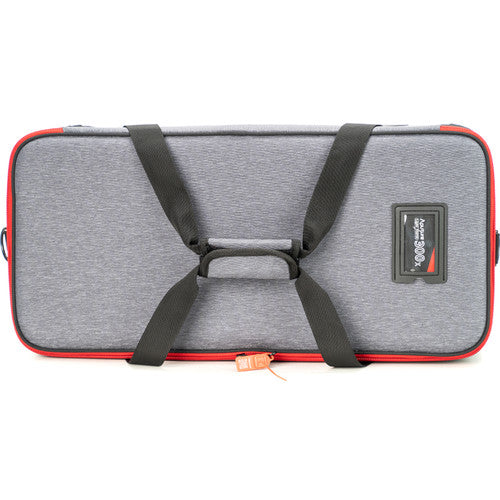

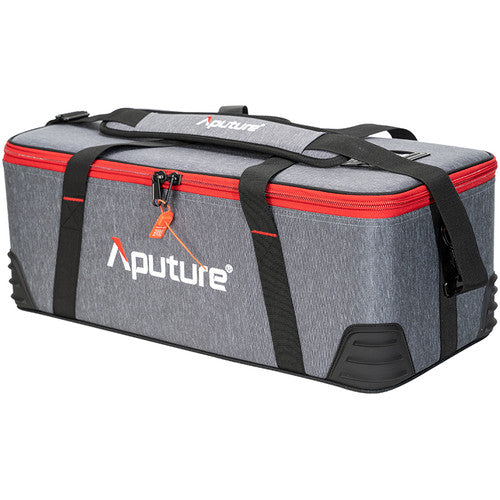

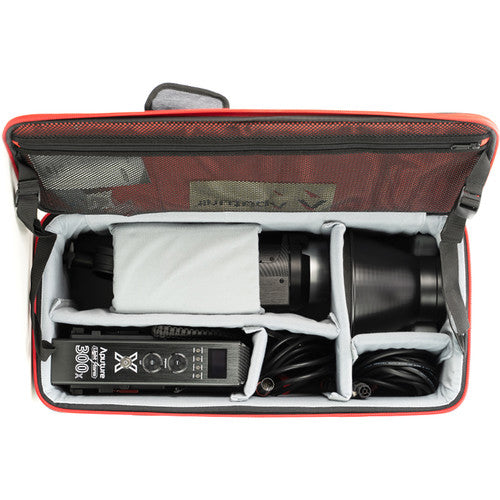

Included Storage Case
1 x Case
Photometrics
105° at 3200K:
473 fc / 5100 Lux at 3.3' / 1 m
53 fc / 580 Lux at 9.8' / 3 m
20 fc / 220 Lux at 16.4' / 5 m
105° at 5600K:
585 fc / 6300 Lux at 3.3' / 1 m
65 fc / 700 Lux at 9.8' / 3 m
23 fc / 250 Lux at 16.4' / 5 m
3200K:
1504 fc / 16,200 Lux at 3.3' / 1 m (with Reflector)
120 fc / 1300 Lux at 9.8' / 3 m (with Reflector)
41 fc / 450 Lux at 16.4' / 5 m (with Reflector)
5600K:
1904 fc / 20,500 Lux at 3.3' / 1 m (with Reflector)
157 fc / 1700 Lux at 9.8' / 3 m (with Reflector)
51 fc / 550 Lux at 16.4' / 5 m (with Reflector)
Show More
Color Temperature
2700 to 6500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
CQS 95
Dimming
Yes, Includes Hardware
0 to 100% (Continuous)
Beam Angle
105°
Front Accessory Mount
Bowens S
Wireless Remote Control Type
Bluetooth
Power Source
AC Power (Cable Included)
Battery (Not Included)

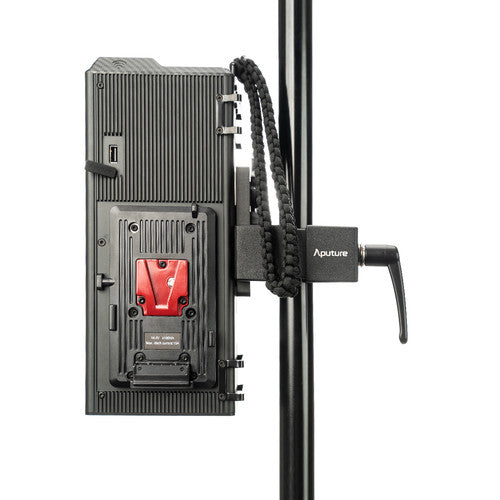

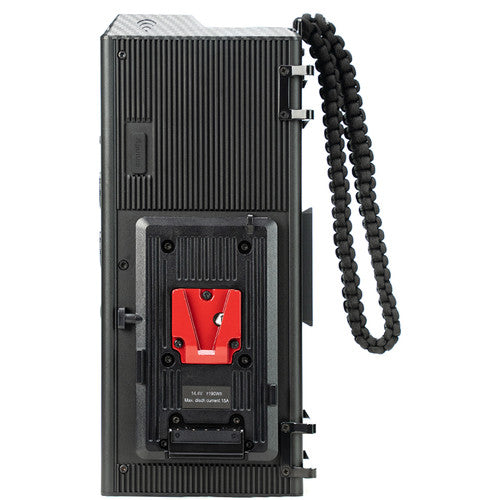

Battery Plate Type
2 x Gold Mount (Built-In)
Battery
2 x Rechargeable, 14.4 VDC (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
350 W
Fixture Mounting
1 x 5/8" Receiver (Via Yoke Mount)
Light Fixture
Item Type
1 x LED Monolight
Included Light Modifier
1 x Reflector
Included Storage Case
1 x Case
Lumens
56,000
Photometrics
105° at 3200K:
473 fc / 5100 Lux at 3.3' / 1 m
53 fc / 580 Lux at 9.8' / 3 m
20 fc / 220 Lux at 16.4' / 5 m
105° at 5600K:
585 fc / 6300 Lux at 3.3' / 1 m
65 fc / 700 Lux at 9.8' / 3 m
23 fc / 250 Lux at 16.4' / 5 m
3200K:
1504 fc / 16,200 Lux at 3.3' / 1 m (with Reflector)
120 fc / 1300 Lux at 9.8' / 3 m (with Reflector)
41 fc / 450 Lux at 16.4' / 5 m (with Reflector)
5600K:
1904 fc / 20,500 Lux at 3.3' / 1 m (with Reflector)
157 fc / 1700 Lux at 9.8' / 3 m (with Reflector)
51 fc / 550 Lux at 16.4' / 5 m (with Reflector)
Color Temperature
2700 to 6500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
CQS 95

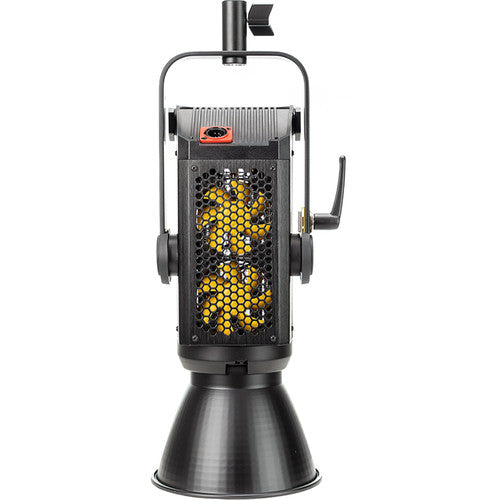

Cooling System
Fan
Dimming
Yes, Includes Hardware
0 to 100% (Continuous)
Beam Angle
105°
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Bowens S
Connectivity
Wireless Remote Control Type
Bluetooth
Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Link
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Channels
3
Wireless Groups
4
Wireless Range
328.1' / 100 m
Power & I/O
Power Source
AC Power (Cable Included)
Battery (Not Included)
Inputs/Outputs
Light Fixture
1 x Proprietary Power Input
Power Supply/Controller
1 x powerCON Power Input
1 x Proprietary Power Output
1 x XLR 5-Pin DMX Input
Battery Plate Type
2 x Gold Mount (Built-In)
Battery
2 x Rechargeable, 14.4 VDC (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1 x Edison Plug to powerCON Cable (19.7' / 6 m)
1 x Proprietary to Proprietary Cable (9.8' / 3 m)
Inline Switch
No
Power Pass-Thru
No
Power Consumption
350 W

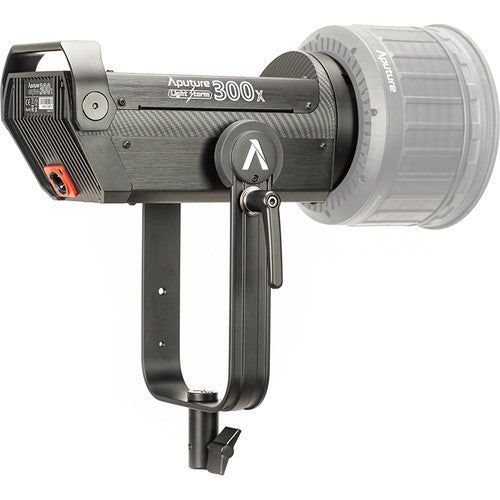

Mounting
Yoke Type
Manually-Operated Yoke (180° Tilt)
Fixture Mounting
1 x 5/8" Receiver (Via Yoke Mount)
General
Display
LCD
Materials
Aluminum (Housing)
Dimensions
11 x 5 x 3.8" / 27.9 x 12.7 x 9.7 cm (Power Supply/Controller)
13.6 x 11.7 x 8.5" / 34.5 x 29.8 x 21.6 cm (Fixture)
Weight
25.13 lb / 11.4 kg
