Description
in-lite LIV WALL Dark Grey - 10301105 from in-lite built for clean, modern outdoor lighting systems.
Provides ambient warm white light all around. Suitable for lighting fences, walls and facades. LIV WALL is available in 3 different colors: Dark Grey, White and Rosé Silver.
- Produces a warm, mood light on all sides
- Designed for illuminating a fence or wall
- Combine with path lights LIV and LIV LOW
Installation advice:
A LIV WALL every 2 to 2½ meters at a height of 1.4 to 1.6 meters. Use an extension cable to keep EASY-LOCK nicely tucked away.

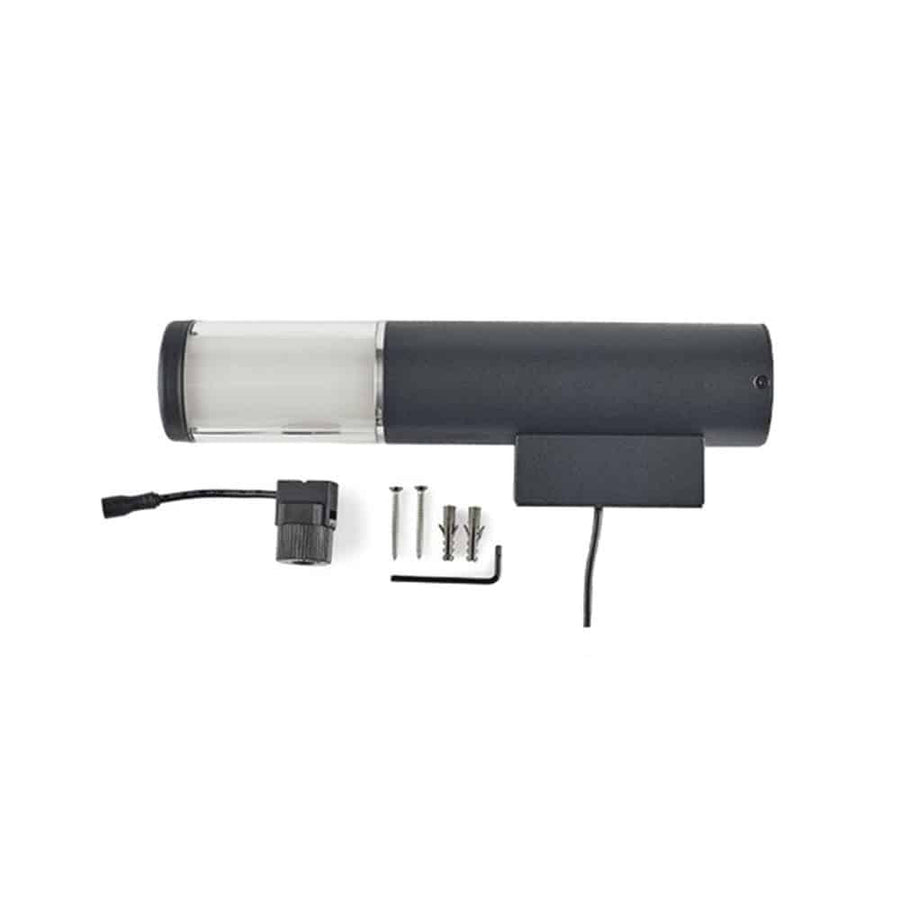

IN THE PACKAGE: INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 2x Screw
- 2x Nylon plug
- 1x Torx wrench
Product Details
Provides ambient warm white light all around. Suitable for lighting fences, walls and facades. LIV WALL is available in 3 different colors: Dark Grey, White and Rosé Silver.
Specs
Art. nr.
10301105
Application
Facade, Fence/wall , House
Mounting depth (inch)
0
Recessed depth (mm)
0
CRI
95
Diameter (inch)
2.6378
Diameter (mm)
67
Color
Dark Grey
EAN code
8717051003837
Energy label
G
Height (inch)
12.7953
Height (mm)
325
IP class
55
Light direction
All around
Types of Light
Diffuse
Efficiency (Lumen/Watt)
40
Net luminous flux (Lumen)
60
Power [W]
1.5
Article group
Wall lights
Voltage
12 volt
VA value
2.5
Width (inch)
3.8976
Width (mm)
99
Color temperature
2750
Material finishing/coating
FCBV
Luminous intensity [Cd]
6.1
Power factor
0.6
Installation instructions
Remove the wall plate from the fixture by loosening the two Torx screws. Mark the position of the two attachment holes and the square in the wall plate on the wall. Make a hole for the cable of at least 13 mm at the location of the square. Attach the wall plate to the surface using the screws supplied and plugs if necessary.
Feed the connector for the fixture through the hole, place the fitting over the wall plate and fix the fitting in place by tightening the two Torx screws. Plug the connector into the EASY-LOCK.
Feed the connector for the fixture through the hole, place the fitting over the wall plate and fix the fitting in place by tightening the two Torx screws. Plug the connector into the EASY-LOCK.
