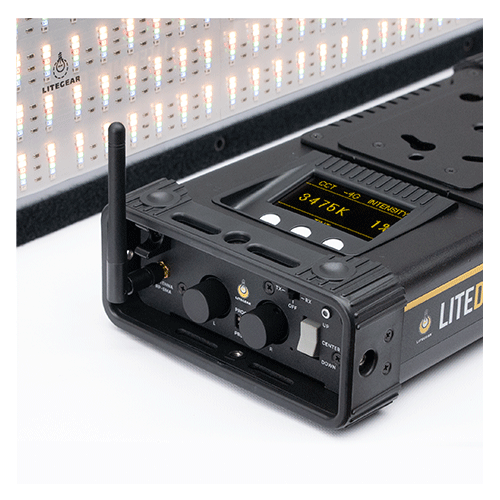

LiteDimmer Spectrum DC 200™ is a 200 watt ballast designed to operate a LiteMat Spectrum light fixture with up to 4 large-format pixels each. It is powered by any external DC voltage between 8V and 36V. The integrated OLED display offers important visual feedback and its included K-Mount offers best in class ballast mounting.
Power: 200W Nominal
Voltage Input (Battery): 10~35 VDC (PL4 Connector)14.4 VDC Nominal (One Battery)for LED Loads up to 100W14.4 VDC Nominal (Two Batteries) for LED Loads up to 200W
Voltage Input (External): 10~35 VDC (PL4 Connector)(Pins 1 and 4 – Neg., Pins 2and 3 + Pos.)
Voltage Output: 48 VDC Power, 5 VDC Signal(PDX Connector)
Dimming Range: 0% to 100% Continuous, Flicker-Free
Controls: Main 3-Position Switch, Manual CCT Control Knob, Manual Intensity Knob, OLED Display w/ function switches
Softwate Interface: User upgradable software, with proprietyconnector.
Weight: 4 lb., (1.8 kg.)
Height: 2.8 in., (71 mm)
Width: 6.3 in., (160 mm)
Length: 12.1 in., (307 mm)
Operating Temperature: –10° to +50° C (14° to 122° F)
Mounting: (4) 1/4-20 Threaded Inserts Drywall Screw Holes Velcro®/Cable Tie SlotsK-Mount accepts rigging accessories
IP Rating: 20
