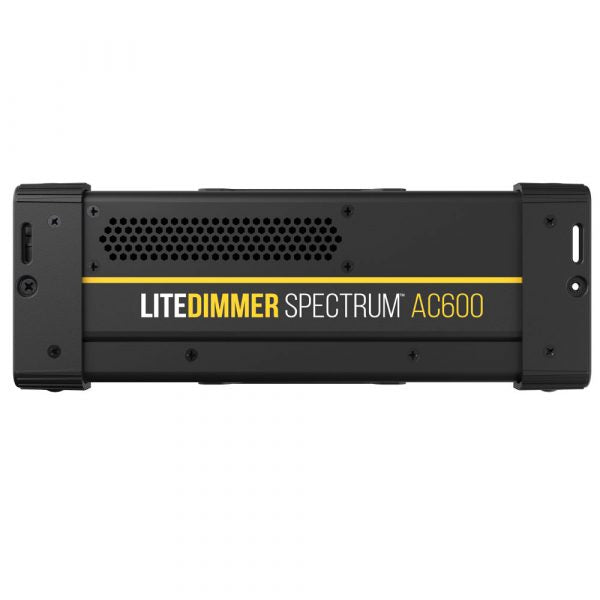

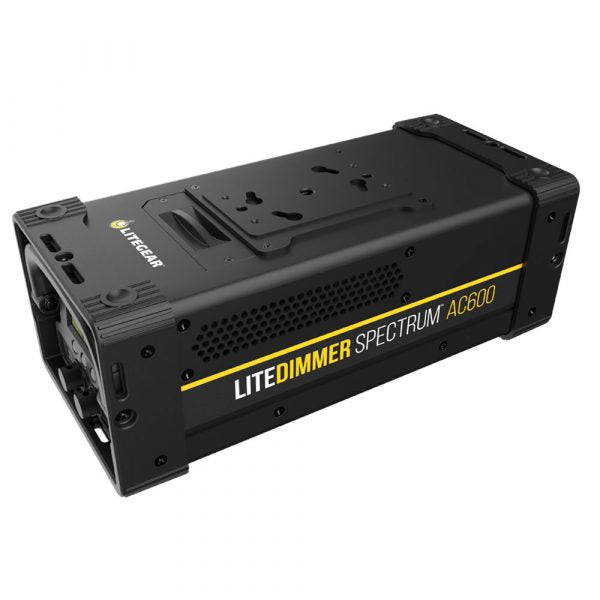

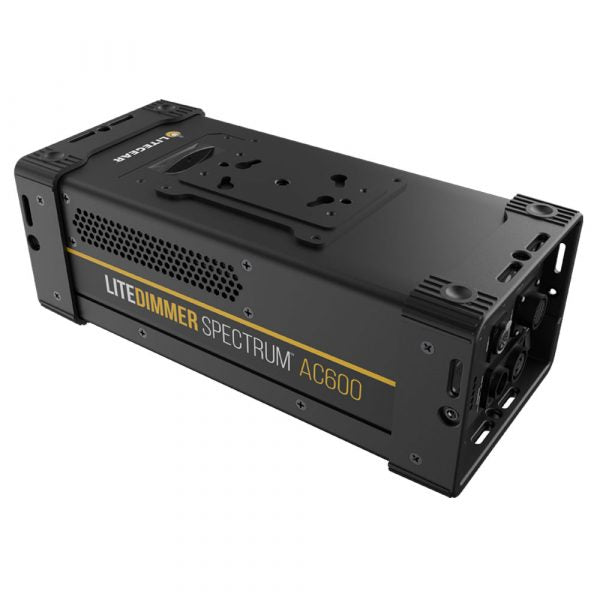

LiteDimmer Spectrum AC600

LITE-LD1.00128
Regular price
$2,669.00
Sale price
$2,669.00

The LiteDimmer Spectrum AC600 is a new class of dimmers made specifically with Auroris in mind. Complete with local control and new communication protocols, this dimmer can control 12 large format pixels, making pixel mapping large overhead areas easier than ever. Specially designed with advanced processing power, integrated Ethernet switch, expanded memory, and a faster processor, this new hardware allows for Ethernet-based communication protocols such as Art-Net and sACN, advanced color control, and cutting-edge software features. An integrated USB-A port allows for easy updates that will bring new, innovative software for years to come. Features
• Simple user experience
• Two K-Mounts for quick mounting
• Two Ethernet ports for TCP/IP communication protocols
• Advanced color control
• Cutting edge software features
• USB-A port for software updates. Product Name: LiteDimmer Spectrum AC600
Item Number: LD-SPECTRUM-AC600
Model: 298-1
Input Voltage: 100-240 VAC, 50/60 Hz
Input Current: 4.5A to 9A
Output Voltage: 48VDC
Output Current: 14.7A to 21A

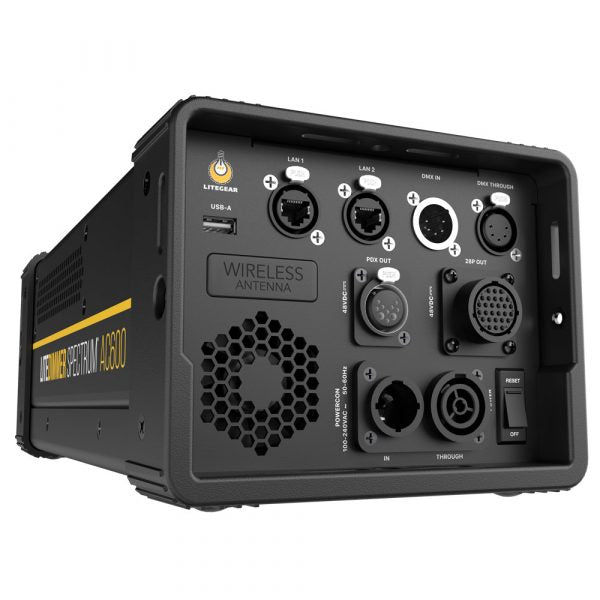

Data Connectors: USB-A, 2x EtherCon, 5-Pin DMX In and Thru, Internal CRMX Antenna
Data Connectors: PDX, 28-Pin Connector
Mains Power Connectors: powerCON TRUE1 TOP In and Thru (Edison / Schuko / Bare Ends cables available)
Control: DMX, RDM, CRMX (Art-Net, sACN coming soon)
Switches: On-board On/Off Switch
Power: 750W Maximum
IP Rating: IP20
Weight: 12.6 lbs (5.7 kg)
Dimensions:
Height: 5.8 in (147.3 mm)
Width: 7.2 in (182.9 mm)
Length: 15.7 in (388.8 mm)
Max Operating Temperature: 122ºF (50ºC)
Mounting: 2 kMounts (truss & stand mounts available)
Certifications: ETL, CE, UKCA, FCC
