Description

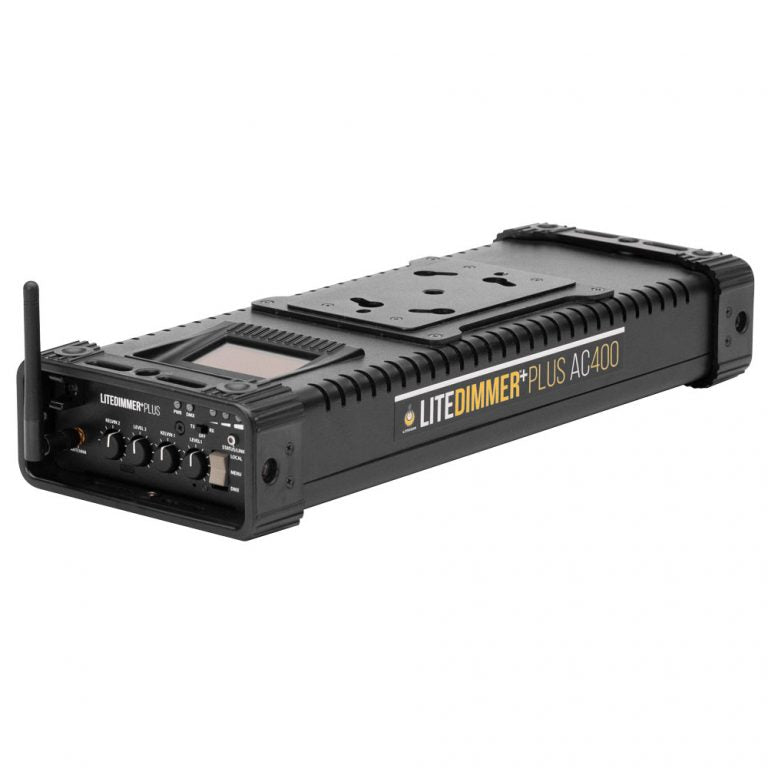

LiteDimmer Plus AC400 is one of our flagship Plus Series power units. Compatible with all LiteMat+ Plus™, LiteTile+ Plus™, and all Plus compatible lighting products, the new Plus Dimmer features a large OLED display that provides visual feedback, and integrated wireless radio that acts as both a transmitter and a receiver for the ultimate wireless convenience. The dimmer also comes with advanced features such as load smoothing, local cueing controls, double circuit control, and a special Master/Slave function that utilizes the integrated wireless card. The unit includes .-20 threaded inserts that make rigging or mounting a simple task. The unit also feature K-mount fittings used for attaching battery adapters, mounts, and power supplies.
Power: 200W Nominal
Voltage Input: 90~240VAC (264VAC Max.) (Powercon)
Voltage Output: Constant Voltage, PWM (PL7 Connector)
Dimming Range: 0% to 100% Continuous, Flicker-Free
Controls: On-Board “ON-OFF” Switch, Manual Kelvin Dial, Manual Dimming Dial
Software Interface: Proprietary Connector, Service Center Upgradeable
Mounting: (4) 1/4-20 Threaded Inserts, Drywall Screw Holes, Velcro®/Cable Tie Slots
Ambient Temp. Operation: –10° to +50° C (14° to 122° F)
IP Rating: IP20
