Description

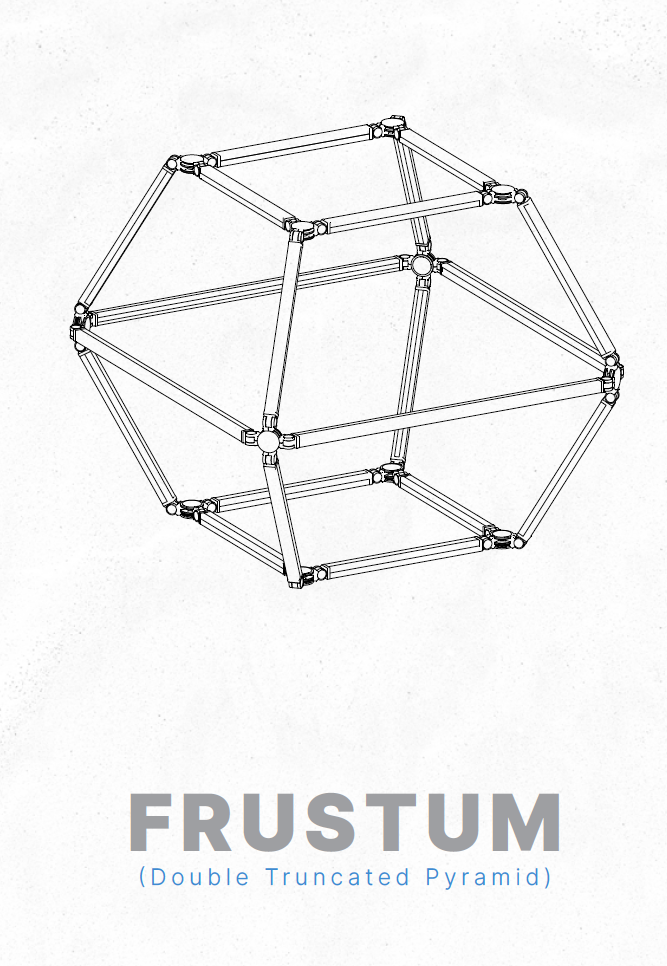

Ligeo FRUSTUM Shape Kit (Double Truncated Pyramid, SILVER, 1 ft. x 3 ft.) 3000°K Static Warm White
A unique geometric shape crafted from high-quality LIGEO
LED light bars. The pyramid’s sharp apexes have been
removed, creating flat top and bottom illuminated surfaces,
while the remaining LED bars outline its eight edges with a
crisp, uniform glow. This double-truncated pyramid, blending
modern design with cutting-edge lighting technology and
adds a bold, architectural presence to any space.
The frustum kit comes with 20 light bars and all the
accessories required to assemble and remotely power a
double truncated pyramid. The kit includes all necessary
equipment to create a suspended, or direct mount frustum.
Anodized extruded aluminum housing available in
three standard finishes: Black, White, and Silver.
Custom colors are available upon request.
LED diffuser is a custom frosted acrylic lens with
gasketed end caps.

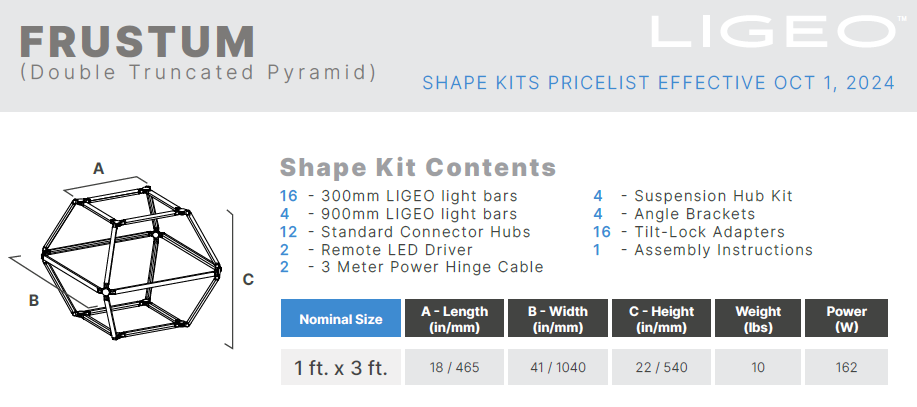

Shape Kit Contents
16 - 300mm LIGEO light bars
4 - 900mm LIGEO light bars
12 - Standard Connector Hubs
2 - Remote LED Driver
2 - 3 Meter Power Hinge Cable
4 - Suspension Hub Kit
4 - Angle Brackets
16 - Tilt-Lock Adapters
1 - Assembly Instructions
Nominal Size 1 ft. x 3 ft.
A - Length (in/mm) 18 / 465
B - Width (in/mm) 41 / 1040
C - Height (in/mm) 22 / 540
Weight (lbs) 10
Power (W) 162 W
Made in Germany
Delivered lumens: 13,776
