Description

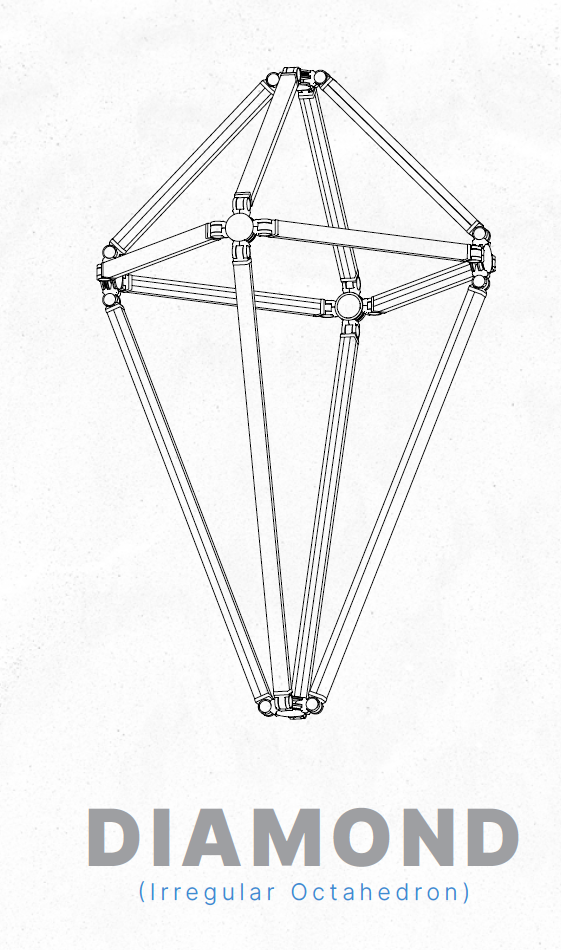

Ligeo DIAMOND Shape Kit (Irregular Octahedron, SILVER, 1 ft. x 3 ft.) 4000°K Static Cool White
A stunning diamond-shaped structure crafted from high-quality LIGEO LED light bars. Each facet of the diamond is formed by sleek, glowing edges that converge at sharp,
precise angles, creating an elegant, futuristic silhouette.
The diamond kit comes with 12 light bars and all the
accessories required to assemble and remotely power
an irregular octahedron. The kit includes all necessary
equipment to suspend or direct mount the fixture. With this
kit you have the option to orient in a diamond or inverted
shape. The lights can face inward or outward.
Anodized extruded aluminum housing available in
three standard finishes: Black, White, and Silver.
Custom colors are available upon request.
LED diffuser is a custom frosted acrylic lens with
gasketed end caps.

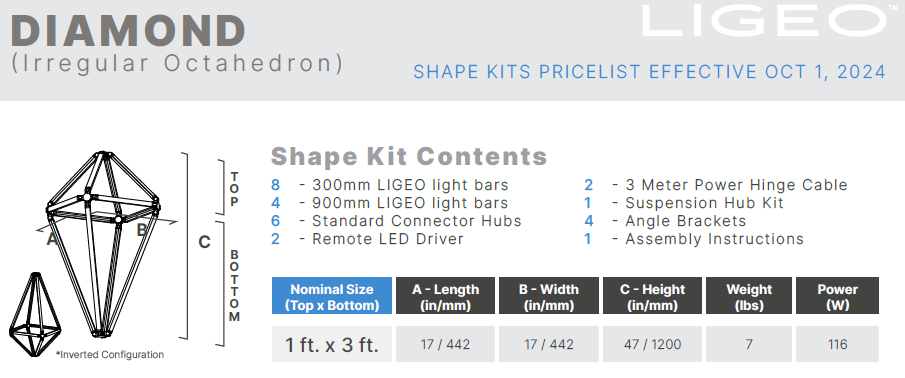

Shape Kit Contents
8 - 300mm LIGEO light bars
4 - 900mm LIGEO light bars
6 - Standard Connector Hubs
2 - Remote LED Driver
2 - 3 Meter Power Hinge Cable
1 - Suspension Hub Kit
4 - Angle Brackets
1 - Assembly Instructions
Nominal Size 1 ft. x 3 ft.
A - Length (in/mm) 17 / 442
B - Width (in/mm) 17 / 442
C - Height (in/mm) 47 / 1200
Weight (lbs) 7
Power (W) 116 W
Made in Germany
Delivered lumens: 9,484
