4/0 Tie-In Female Cam to Blunt End 5’

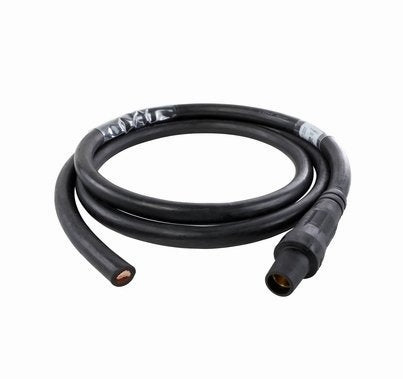

Lex 4/0 Tie-in Female Cam to Blunt End | 5ft
Description
Cam single cable: 4/0 AWG 600VAC Type SC (entertainment) cable.
Length: 5ft
Markets Served
Theatrical, Motion Picture, Concert Touring, Live Events, Convention Centers Application
Application
Allows qualified personnel to tie-in to a lug or bus bar (ring terminal required for bus bar).
Features & Benefits
Weatherproof type cable assemblies.
Hard usage single layer thermoset jacket
Provides excellent flexibility and resistance to oil and solvents
Heat & flame resistant - will not melt
Specifications
Rating: 400 Amps
Cable:
Weather resistant/UV resistant type SC hard usage cable
Temperature rating: -50c to 105c
Industry approvals: UL/MSHA Listed, RoHS compliant
Annealed Stranded Copper: per ASTM-B-172
Connector:
Connector Type: Cam-type female series 16 inline
NEMA rating: Type 3R - weatherproof
Sleeve material: santoprene (TPE)
Contact: Brass
Strain Relief: Copper shim & wire
