Description

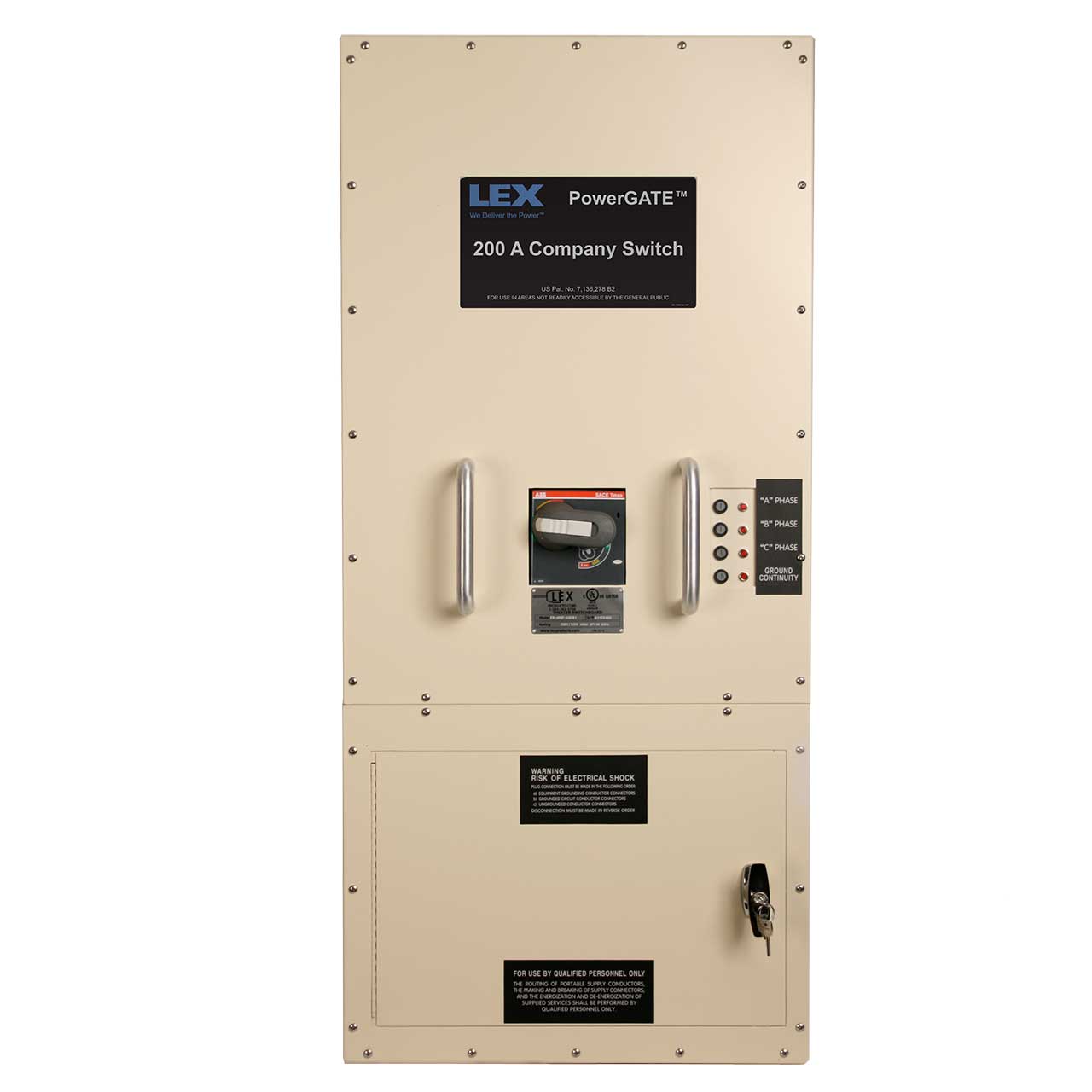

200A (6) Wire Cam & Direct Wire NEMA 1, Tan Enclosure
Features & Benefits
- The Lex Products PowerGATE Company Switch provides access to relatively high amounts of electrical power in applications where the equipment utilized changes on a regular basis, such as theaters, studios, convention centers and arenas
- Company Switches offer enhanced safety and convenience when connecting temporary 3 Phase power to portable equipment such as dimmer racks, audio racks and motor controls
- Company Switches have become the preferred type of product for applications of this nature due to safety and convenience benefits
- PowerGATE™ Company Switch design features both Cam-type connectors and lugs in one compact, connection chamber for ultimate flexibility
- Features an electronic trip circuit breaker that is 100% rated, enabling continuous operation at maximum capacity
- Circuit breaker rated at 65,000 AIC (Amps Interrupting Capacity) to exceed requirements for installed dimmers
- Outputs are behind a lockable access door, helping to eliminate accidental disconnection, unauthorized access and/or tampering with connections
- Unique arrangements of both cams and lug terminations enables both sets of cable to drape downward for lower profile when mounted against a wall
- For enhanced safety, the access door to pin & sleeve and lug connections is interlocked to the main breaker, which means the breaker cannot be turned on unless the access door is closed
- Power shuts off automatically when the access door is opened, eliminating the ability to make or break a connection under load
- Circuit breaker allows for lockout/tagout to restrict access as needed
- The chassis ground can be isolated from the main ground for sensitive audio applications
- An integral LED worklight is provided in the connection chamber for ease of connection and enhanced safety
Markets Served
Theaters, Convention Centers, Studios, Theme Parks, Recreational Facilities
