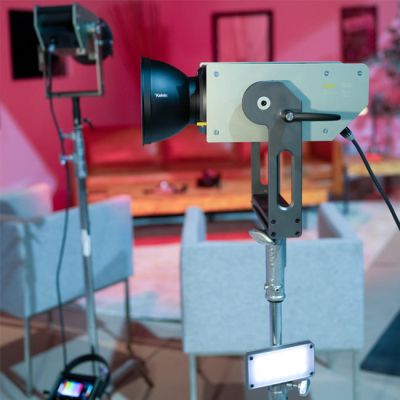

Kelvin Epos 600 RGBACL LED COB Studio Light Travel Kit with Accessories for Epos Series
Your super hero on any lighting set.
Made to withstand life on set and deliver mind-blowing light accuracy and control.
600W full spectrum LED COB studio light
Accessories for Epos Series
Cantastoria™ RGBACL Six-Color Light Engine (patent pending)
CRI 98 | TLCI 99 | CQS 97 | SSI 86 @3200K | SSI 74 @5600K
2000K to 20000K CCT
IP rating 54
Bluetooth, Kelvin Narrator App for iOS/Android, DMX, Wireless DMX
External power compatibility with Battery Power Stations and Block Batteries
Bowens mount with Kelvin MagTech™ (proprietary)
USB-C, USB-A
6mm aluminium housing
Comes with a durable water resistant semi soft rolling case
Light Fixture
Light Engine - Cantastoria (RGBACL) Six-Color
Color Temperature - 2,000 to 20,000 K ±100 K
Modes - CCT, HSI, RGB, GELS, EFFECTS, XY
Dimming - 0-100% (continuous)
Display - 5'' TFT LCD Touch Screen
Housing Material - Aluminum
Number of LEDs - 80
Expected Lamp Life - 50 000 hours
Beam Angle - 93°
Beam Angle Kelvin Bowens Mount Reflector - 62°
Color Accuracy Standard
CRI 98 | TLCI 99 | CQS 97 | SSI 86 @3200K | SSI 74 @5600K

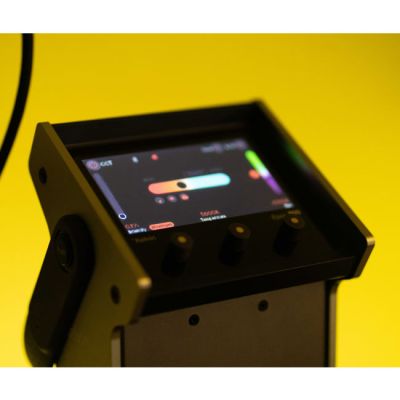

Controller
Battery Input - 1 x XLR 48VDC
DMX Connection - 5-Pin XLR
Power Input Connection - powerCON
USB - USB-C, USB-A
Mounting
Yoke Mount - Kelvin Epos 600 Yoke (360° tilt)
Accessory Mount - Bowens S-Type with Kelvin MagTech™ (proprietary)
Fixture Mount - 1-1/8" stud (junior pin) and 5/8" receiver (baby pin)
Proprietary Magnetic Mount for Diffusers, Intensifiers, etc. (front of light fixture) - Kelvin MagTech™
Remote Operation
Control - Bluetooth, Kelvin Narrator App, DMX, Lumen Radio/Wireless DMX (built-in)
Bluetooth - Wireless Operating Range: ≤100m
Lumen Radio - Wireless Operating Range: ≤100m
Power
AC Input Power - 100 to 250 VAC, 50/60 Hz
DC Input Power - 48 VDC
Power Source - AC mains, External Battery Power Stations and Block Batteries
Max Power Consumption - 600W (nominal) / 720W (rated)
Battery Input - 1 XLR 48VDC
Battery Voltage Range - 46 to 50 VDC
Power Pass-Thru - Yes
Operating Temperature - -4 to 113°F / -20 to 45°C
Hot Swapping - Yes
Cable
Kelvin Epos 600 4-Pin Weatherproof XLR Head Cable - 8 meters / 26.2 ft
Neutrik Power CONTRUE TOP AC Power Cable - 8 meters / 26.2 ft
Weight
Lamp Head w/Yoke - 6.7 kg / 14.77 lbs
Control Box - 5.48 kg / 12.08 lbs
Super Clamp - 0.44 kg / 0.98 lbs
Rolling Case (Filled) - 17.18 kg / 37.87 lbs
Rolling Case (Empty) - 5.35 kg / 11.79 lbs
Dimensions (L x W x D)
Lamp Head w/o Yoke - 26.5 x 17.6 x 14cm / 10.43 x 6.9 x 5.5in
Lamp Head w/ Yoke - 52 x 39.8 x 14cm / 20.47 x 15.66 x 5.5in
Control Box - 13 x 17.1 x 33.7cm / 5.12 x 6.73 x 13.27in
Super Clamp - 9.0 x 5.4 x 13.6cm / 3.54 x 2.13 x 5.35in
Reflector - 12.7 x 12.7 x 17.8cm / 5 x 5 x 7.01in
Rolling Case - 56 x 40 x 34.5cm / 22.05 x 15.75 x 13.58in
Packed incl. Rolling Case and Accessories for Epos Series in Cardboard
Weight - 20.63kg / 45.47lbs
Dimensions (L x W x D) - 62.5 x 45 x 41.5cm / 24.61 x 17.72 x 16.34in
What’s In The Box
Kelvin Epos 600 lamp head
Kelvin Epos 600 controller
Protective cap for Epos 600 controller
Quick release lighting super clamp
Kelvin Epos Reflector (62°)
Kelvin Epos 600 4-pin XLR head cable (8 meters / 26.2 ft)
Neutrik Power CONTRUE TOP AC power cable (8 meters / 26.2 ft)
Kelvin Epos 600 semi soft rolling case
1 x Kelvin Epos Light Diffuser D100
1 x Kelvin Epos Medium Diffuser D90
1 x Kelvin Epos Heavy Diffuser D75
1 x Kelvin Epos Dome Diffuser
1 x Kelvin Epos Umbrella Mount
3 Years Keep Rolling Warranty™
Lifetime customer support
