Description

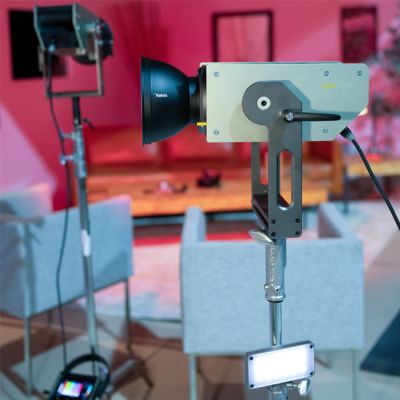

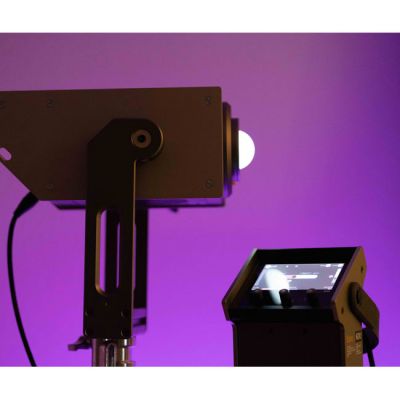

Kelvin Epos 600 RGBACL LED COB Studio 3-Light Kit with Accessories for Epos Series
Your super hero on any lighting set.
Made to withstand life on set and deliver mind-blowing light accuracy and control.
600W full spectrum LED COB studio light
Accessories for Epos Series
Cantastoria™ RGBACL Six-Color Light Engine (patent pending)
CRI 98 | TLCI 99 | CQS 97 | SSI 86 @3200K | SSI 74 @5600K
2000K to 20000K CCT
IP rating 54
Bluetooth, Kelvin Narrator App for iOS/Android, DMX, Wireless DMX
External power compatibility with Battery Power Stations and Block Batteries
Bowens mount with Kelvin MagTech™ (proprietary)
USB-C, USB-A
6mm aluminium housing
Comes with a durable water resistant semi soft rolling case
Light Fixture
Light Engine - Cantastoria (RGBACL) Six-Color
Color Temperature - 2,000 to 20,000 K ±100 K
Modes - CCT, HSI, RGB, GELS, EFFECTS, XY
Dimming - 0-100% (continuous)

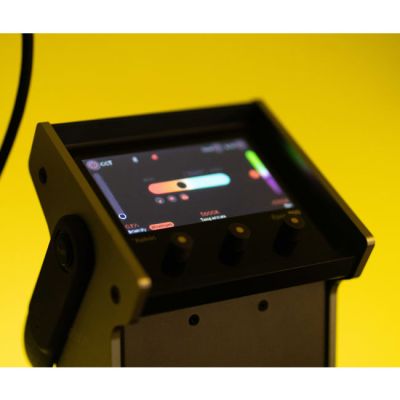

Display - 5'' TFT LCD Touch Screen
Housing Material - Aluminum
Number of LEDs - 80
Expected Lamp Life - 50 000 hours
Beam Angle - 93°
Beam Angle Kelvin Bowens Mount Reflector - 62°
Color Accuracy Standard
CRI 98 | TLCI 99 | CQS 97 | SSI 86 @3200K | SSI 74 @5600K
Controller
Battery Input - 1 x XLR 48VDC
DMX Connection - 5-Pin XLR
Power Input Connection - powerCON
USB - USB-C, USB-A
Mounting
Yoke Mount - Kelvin Epos 600 Yoke (360° tilt)
Accessory Mount - Bowens S-Type with Kelvin MagTech™ (proprietary)
Fixture Mount - 1-1/8" stud (junior pin) and 5/8" receiver (baby pin)
Proprietary Magnetic Mount for Diffusers, Intensifiers, etc. (front of light fixture) - Kelvin MagTech™
Remote Operation
Control - Bluetooth, Kelvin Narrator App, DMX, Lumen Radio/Wireless DMX (built-in)
Bluetooth - Wireless Operating Range: ≤100m
Lumen Radio - Wireless Operating Range: ≤100m
Power
AC Input Power - 100 to 250 VAC, 50/60 Hz
DC Input Power - 48 VDC
Power Source - AC mains, External Battery Power Stations and Block Batteries
Max Power Consumption - 600W (nominal) / 720W (rated)
Battery Input - 1 XLR 48VDC
Battery Voltage Range - 46 to 50 VDC
Power Pass-Thru - Yes
Operating Temperature - -4 to 113°F / -20 to 45°C
Hot Swapping - Yes
Cable
Kelvin Epos 600 4-Pin Weatherproof XLR Head Cable - 8 meters / 26.2 ft
Neutrik Power CONTRUE TOP AC Power Cable - 8 meters / 26.2 ft
Weight
Lamp Head w/Yoke - 6.7 kg / 14.77 lbs
Control Box - 5.48 kg / 12.08 lbs
Super Clamp - 0.44 kg / 0.98 lbs
Rolling Case (Filled) - 17.18 kg / 37.87 lbs
Rolling Case (Empty) - 5.35 kg / 11.79 lbs
Dimensions (L x W x D)
Lamp Head w/o Yoke - 26.5 x 17.6 x 14cm / 10.43 x 6.9 x 5.5in
Lamp Head w/ Yoke - 52 x 39.8 x 14cm / 20.47 x 15.66 x 5.5in
Control Box - 13 x 17.1 x 33.7cm / 5.12 x 6.73 x 13.27in
Super Clamp - 9.0 x 5.4 x 13.6cm / 3.54 x 2.13 x 5.35in
Reflector - 12.7 x 12.7 x 17.8cm / 5 x 5 x 7.01in
Rolling Case - 56 x 40 x 34.5cm / 22.05 x 15.75 x 13.58in
Packed incl. Rolling Case and Accessories for Epos Series in Cardboard
Weight - 61.89kg / 136.41lbs
Dimensions (L x W x D) - 80 x 50 x 75cm / 31.49 x 19.68 x 29.52in
What’s In The Box
3 x Kelvin Epos 600 (lamp head, controller and protective cap for controller)
3 x Kelvin Epos 600 Rolling Case
3 x Quick release lighting super clamp
3 x Kelvin Epos Reflector (62°)
3 x Kelvin Epos 600 4-pin XLR head cable (8 meters / 26.2 ft)
3 x Neutrik Power CONTRUE TOP AC power cable (8 meters / 26.2 ft)
3 x Kelvin Epos Light Diffuser D100
3 x Kelvin Epos Medium Diffuser D90
3 x Kelvin Epos Heavy Diffuser D75
3 x Kelvin Epos Dome Diffuser
3 x Kelvin Epos Umbrella Mount
1 x Kelvin Multi-Tool for Lighting, Video and Photo
3 Years Keep Rolling Warranty™
Lifetime customer support
